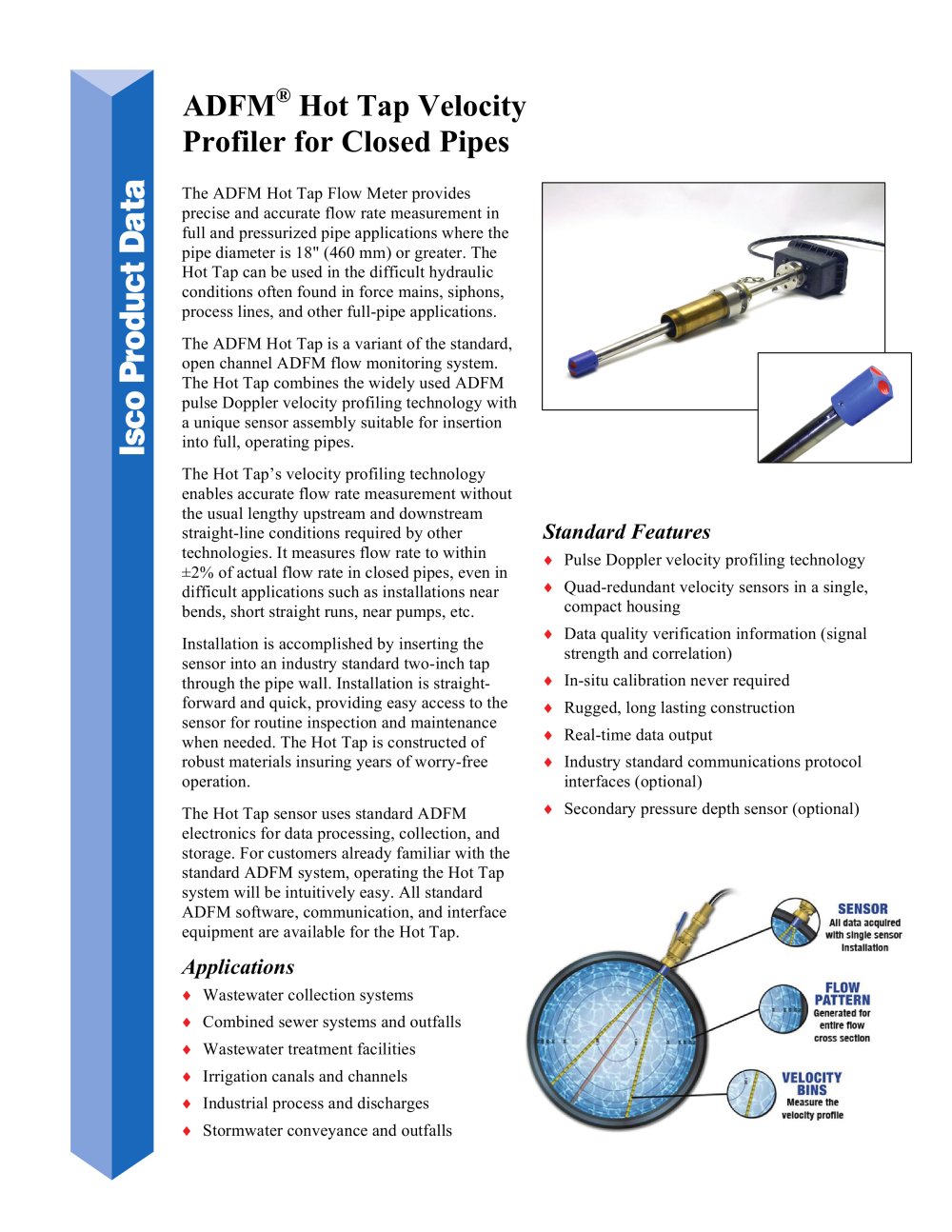

The ADFM Hot Tap Flow Meter provides precise and accurate flow rate measurement in full and pressurized pipe applications where the pipe diameter is 18" (460 mm) or greater. The Hot Tap can be used in the difficult hydraulic conditions often found in force mains, siphons, process lines, and other full-pipe applications. The ADFM Hot Tap is a variant of the standard, open channel ADFM flow monitoring system. The Hot Tap combines the widely used ADFM pulse Doppler velocity profiling technology with a unique sensor assembly suitable for insertion into full, operating pipes. The Hot Tap’s velocity profiling technology enables accurate flow rate measurement without the usual lengthy upstream and downstream straight-line conditions required by other technologies. It measures flow rate to within ±2% of actual flow rate in closed pipes, even in difficult applications such as installations near bends, short straight runs, near pumps, etc. Installation is accomplished by inserting the sensor into an industry standard two-inch tap through the pipe wall. Installation is straightforward and quick, providing easy access to the sensor for routine inspection and maintenance when needed. The Hot Tap is constructed of robust materials insuring years of worry-free operation. The Hot Tap sensor uses standard ADFM electronics for data processing, collection, and storage. For customers already familiar with the standard ADFM system, operating the Hot Tap system will be intuitively easy. All standard ADFM software, communication, and interface equipment are available for the Hot Tap. Applications Wastewater collection systems Combined sewer systems and outfalls Wastewater treatment facilities Irrigation canals and channels Industrial process and discharges Stormwater conveyance and outfalls Standard Features Pulse Doppler velocity profiling technology Quad-redundant velocity sensors in a single, compact housing Data quality verification information (signal strength and correlation) In-situ calibration never required Rugged, long lasting construction Real-time data output Industry standard communications protocol interfaces (optional) Secondary pressure depth sensor (optional) ADFM® Hot Tap Velocity Profiler for Closed Pipes
Open the catalog to page 1Teledyne Isco, Inc. 4700 Superior Street Lincoln NE 68504 USA Tel: (402) 464-0231 USA and Canada: (800) 228-4373 Fax: (402) 465-3022 E-Mail: iscoinfo@teledyne.com Internet: www.isco.com Teledyne Isco reserves the right to change specifications without notice. © 2009 Teledyne Isco, Inc. • L-2136 • 11/09 Specifications ADFM® Hot Tap Velocity Profiler Measurement Performance Flow Accuracy: 2% of reading Velocity Maximum Velocity: ±30.0 ft/s (± 9 m/s) Velocity Bin Size: 2 to 12 inches (50 to 300 mm) user selectable Vertical Profiling Range: 9 to 108 in (230 mm to 2.7m) nominal, for particle...
