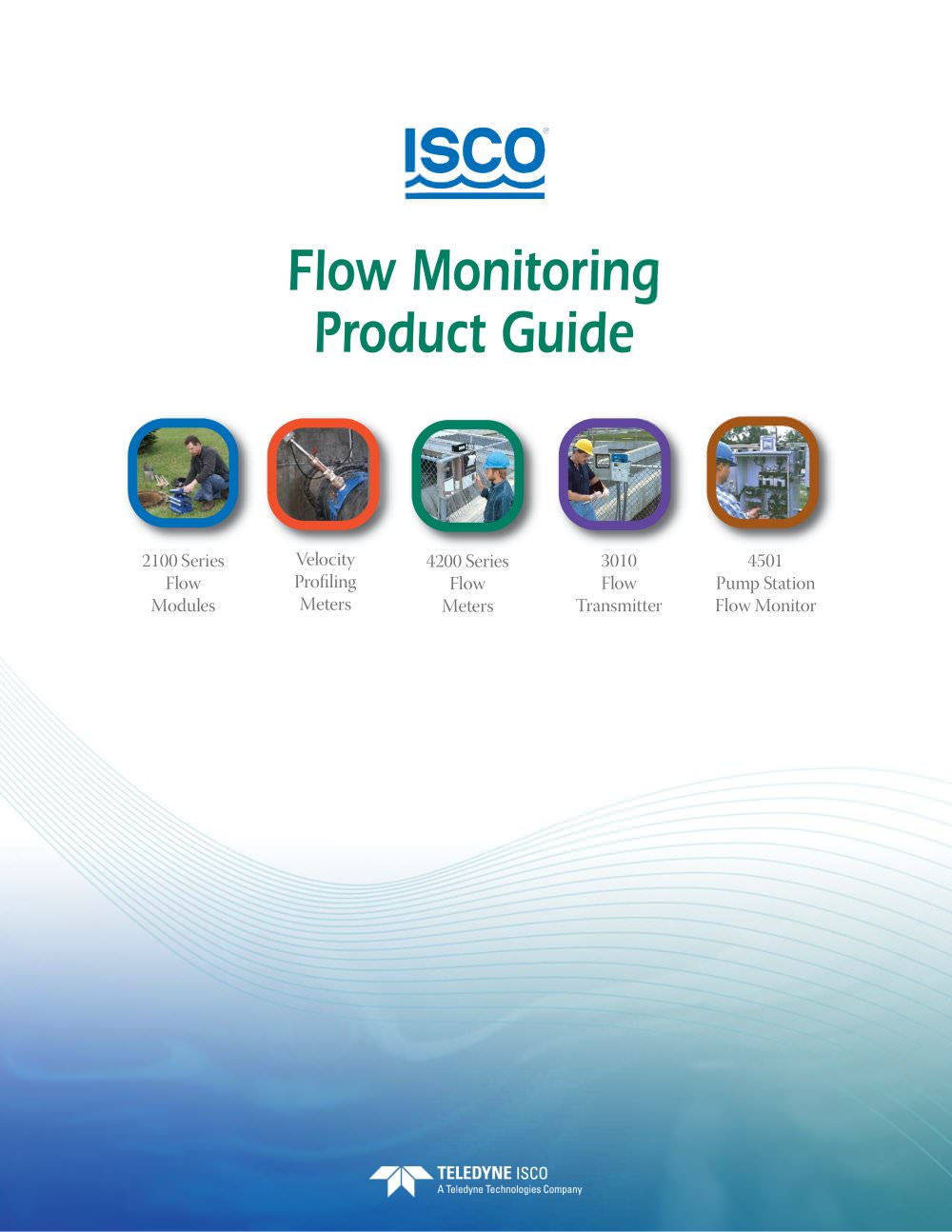

Flow Monitoring Product Guide 2100 Series Flow Modules Velocity Profiling Meters 4200 Series Flow Meters 3010 Flow Transmitter 4501 Pump Station Flow Monitor

Open the catalog to page 1

Isco Flow Monitoring Technologies Select the technology best suited for your application No matter how challenging the application or site conditions, Isco offers proven technologies for your needs. Our products are recognized throughout the industry as “The Future of Flow!” Continuous-wave Doppler Area velocity sensors continuously transmit an ultrasonic signal into the flow stream. Those signals are reflected off bubbles and particles, and return to the sensor with a frequency shift (Doppler effect) proportional to velocity. A differential pressure transducer in the sensor measures liquid...

Open the catalog to page 2

Collection Systems ¡ Flow measurement choices with unique benefits for capacity assessment, I & I, and sanitary sewer evaluation ¡ Energy efficient battery-powered flow loggers for portable installation ¡ Remote telemetry options for flow loggers in permanent installations Advanced Flow Products From Teledyne Isco Offering a wide range of flow instruments and technologies to meet your unique application needs 2100 Series Flow Modules Velocity Profiling Meters 4200 Series Flow Meters 3010 Flow Transmitter 4501 Pump Station Flow Monitor With more than four decades of industry leadership, we...

Open the catalog to page 3

[1] Nominal level. I s c o I n s t r u m e Small Channels/Pipes (<36”) [1] Large Channels/Pipes (>36”) [1] Large Pipes (Low Depth <3”) [1] Concrete-lined Open Channels Primary Devices (Weirs & Flumes) Full Pipes/Force Mains (>18” Dia.) Compound Pipes (Surcharge) Lift Stations Continuous-wave Doppler Ultrasonic Pulse Doppler Pulse Doppler Pulse Dopple 2150 Area Velocity* 2110 Ultrasonic accQmin Pro 20 H-ADFM Flow Module Flow Module Wastewater Treatment Plants ¡ Cost-effective alternative to primary devices at plant inlet, eliminating downstream excavation and construction cost ¡ Choice of...

Open the catalog to page 4

* CSA- and Baseefa-approved versions available for intrinsically safe use. ** In full pipes 18 inches or greater in diameter. n t S u i t a b i l i t y G u i d e r Pulse Doppler Ultrasonic Submerged Probe Bubbler Area Velocity Isco 4210 Ultrasonic 4220 Submerged 4230 Bubbler 4250 Area Velocity 3010 Flow 4501 Pump HotTap Flow Meter Flow Meter Flow Meter Flow Meter Transmitter Station Monitor Lift Stations ¡ Accurate flow measurement during varying inflow conditions, using patented algorithm ¡ Accurate full-pipe meters for pipes of any material. Options include easy-to-install insertion...

Open the catalog to page 5

Communication Managing your flow data Options Isco Flowlink® Software Isco Flowlink® Pro For instrument configuration, data retrieval, data management, and comprehensive reports. A server/client package providing real-time data, via web interface, for large municipalities and flow service providers. Flowlink Pro Server Microsoft SQL or Oracle Flowlink Pro Clients Administrator Manager Field crew Field crew Firewall Off-site user (e.g. VPN) Off-site user via web browser Typical Flowlink Pro Flow Data Communication System Organization’s Network The example below shows Flowlink’s ability to...
