CombiFlash Rf Flash Chromatography Systems
8Pages

{{requestButtons}}

Catalog excerpts

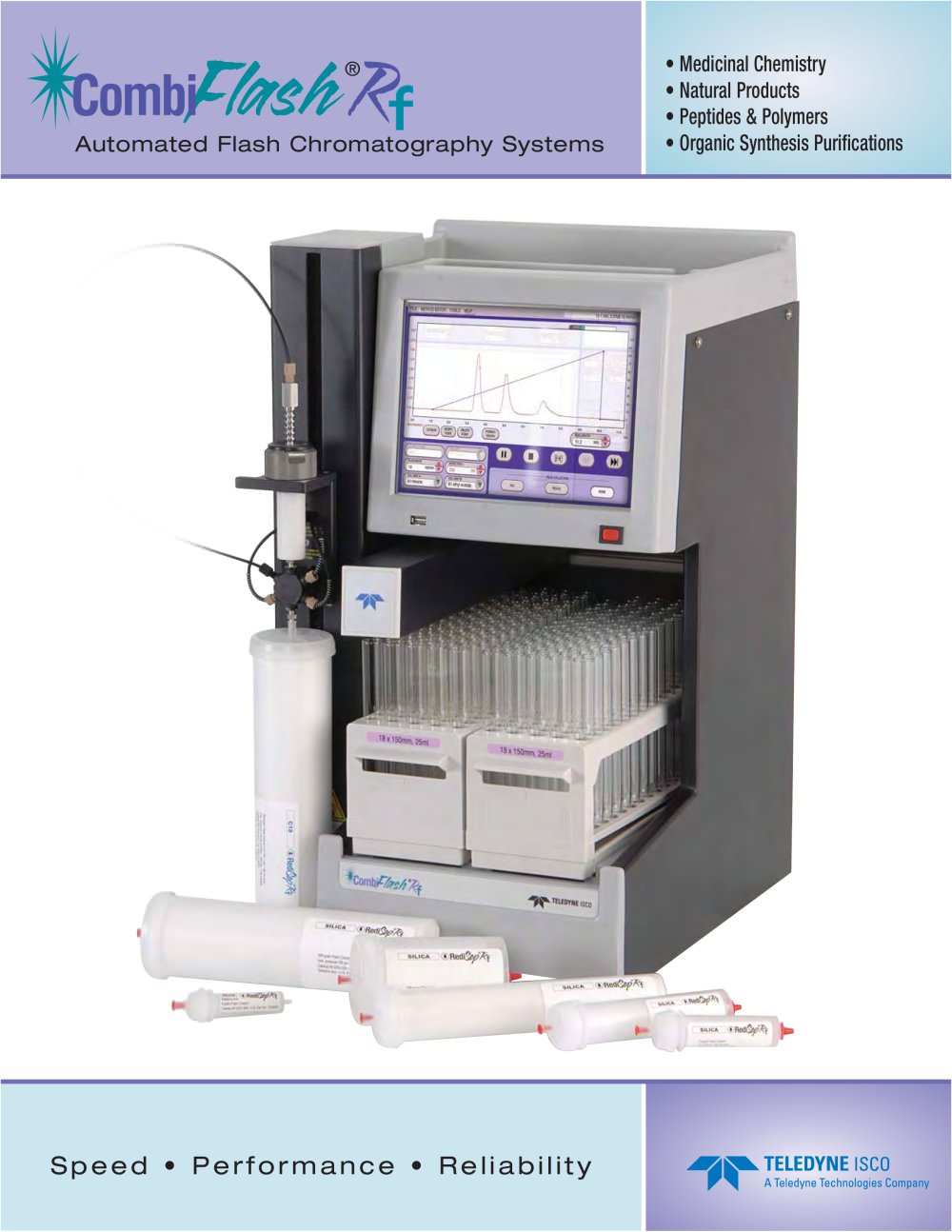

CombiFlash Rf Flash Chromatography Systems - 1

Speed • Performance • Reliability • Medicinal Chemistry • Natural Products • Peptides & Polymers Automated Flash Chromatography Systems • Organic Synthesis Purifications

Open the catalog to page 1
CombiFlash Rf Flash Chromatography Systems - 2

Improve Your Productivity With RFID Technology Teledyne Isco's CombiFlash® Rf flash chromatography systems save time and increase sample security for chemists performing organic purifications. Method automation through the use of RFID technology reduces setup time and the potential for errors. Easy-To-Use Software Teledyne Isco's intuitive PeakTrak® software lets you access everything you need from a single screen. Key features include: .. Real-time method control and method editing .. Click-and-drag gradients .. Control and monitor via touch screen, desktop, laptop, and remote access...

Open the catalog to page 2
CombiFlash Rf Flash Chromatography Systems - 3

lash Chromatography Easy

Open the catalog to page 3
CombiFlash Rf Flash Chromatography Systems - 4

75 psi Choose the Flash Chromatography Sy 200 psi 200 psi The CombiFlash® Rf can be relied on to perform all types of flash chromatography purifications under normal and reversed phase conditions. .. 200 psi MPLC pressure capabilities for versatile use, including Reversed Phase .. Precision, high pressure binary gradient formation .. Automated, self-cleaning injection valve .. Rapid column air purge for safer disposal .. Active waste level-sensing prevents overflow conditions .. Active inlet level-sensing ensures adequate solvent for purification .. Quarternary solvent source with automated...

Open the catalog to page 4
CombiFlash Rf Flash Chromatography Systems - 5

stem Best Suited to Meet Your Needs Part Number CombiFlash Rf - 200 psi CombiFlash Rf - 75 psi 68-5230-006 68-5230-008 68-5230-007 200-360 nm dual-wavelength 200-780 nm dual-wavelength 254 nm fixed wavelength* Add on 4x Module 68-5237-046 Not Available Controller Software Pumping System 10-100 mL/min, up to 75 psi Gradients Four solvent, binary Two solvent,* binary Column Sizes 4 g to 330 g; up to 1.5 kg with adapters Sample Sizes 4 mg - 33 g Fraction Collection Sample Injection Automated valve Direct Detection * Upgrades available. Contact the factory for details. Solvent Management Level...

Open the catalog to page 5
CombiFlash Rf Flash Chromatography Systems - 6

CombiFlash® Rf & RediSep® Rf - A Powerful Combination Fast & Reliable Separations CombiFlash Rf systems work best with RediSep Rf columns. Method automation through the use of RFID technology reduces setup time and the potential for errors. RFID allows communication between the system and column to maximize performance. RediSep Rf columns are available in a wide variety of media including silica gel, C18, Amine, Cyano, Diol, and Alumina. Our newest columns, RediSep Rf Gold™ columns, are available in silica gel and C18. RediSep Rf Gold High Performance Columns RediSep Rf Gold™ columns...

Open the catalog to page 6
CombiFlash Rf Flash Chromatography Systems - 7

Sample Characteristics Stationary Phase (conditions) Basic Properties High Polarity Acidic Properties Acid Charged Sensitive C18 (RP) Cyano (RP) C18 (RP) Silica Gel (NP) Cyano (RP) C18 (RP) Amine (NP/RP) Basic Alumina (NP) SCX (NP) Cyano (RP) Neutral Alumina (NP) Silica Gel (NP) Acidic Alumina (NP) Cyano (RP) C18 (RP) Neutral Alumina (NP) SAX (NP) Low or Medium Polarity Sample Neutral Alumina (NP) Cyano (NP) Diol (NP/RP) Silica Gel (NP) Diol (NP/RP) C18 (RP) Neutral Alumina (NP Available in both 40 - 60 ìm and 20 - 40 ìm RediSep Rf Gold™ high performance columns. (NP) = Normal Phase; (RP) =...

Open the catalog to page 7
CombiFlash Rf Flash Chromatography Systems - 8

CombiFlash® Rf Ordering Information Brochure L-5139 • Printed in the U.S.A. • All rights reserved. • 12/08 For complete information about our Flash chromatography systems and media, visit our web site @ www.isco.com/lc. 4700 Superior Street • Lincoln, NE 68504 USA Toll free: (800)228-4373 (USA & Canada) • Phone: (402)464-0231 • Fax: (402)465-3022 • iscoinfo@teledyne.com CombiFlash Rf Automated Flash Chromatography Systems Integrated single-channel systems include PeakTrak® software control via 10.5" Touchscreen or remote. The Rf systems' standard options include one set of two collection...

Open the catalog to page 8
