2110 Ultrasonic Module datasheet
4Pages

Catalog excerpts

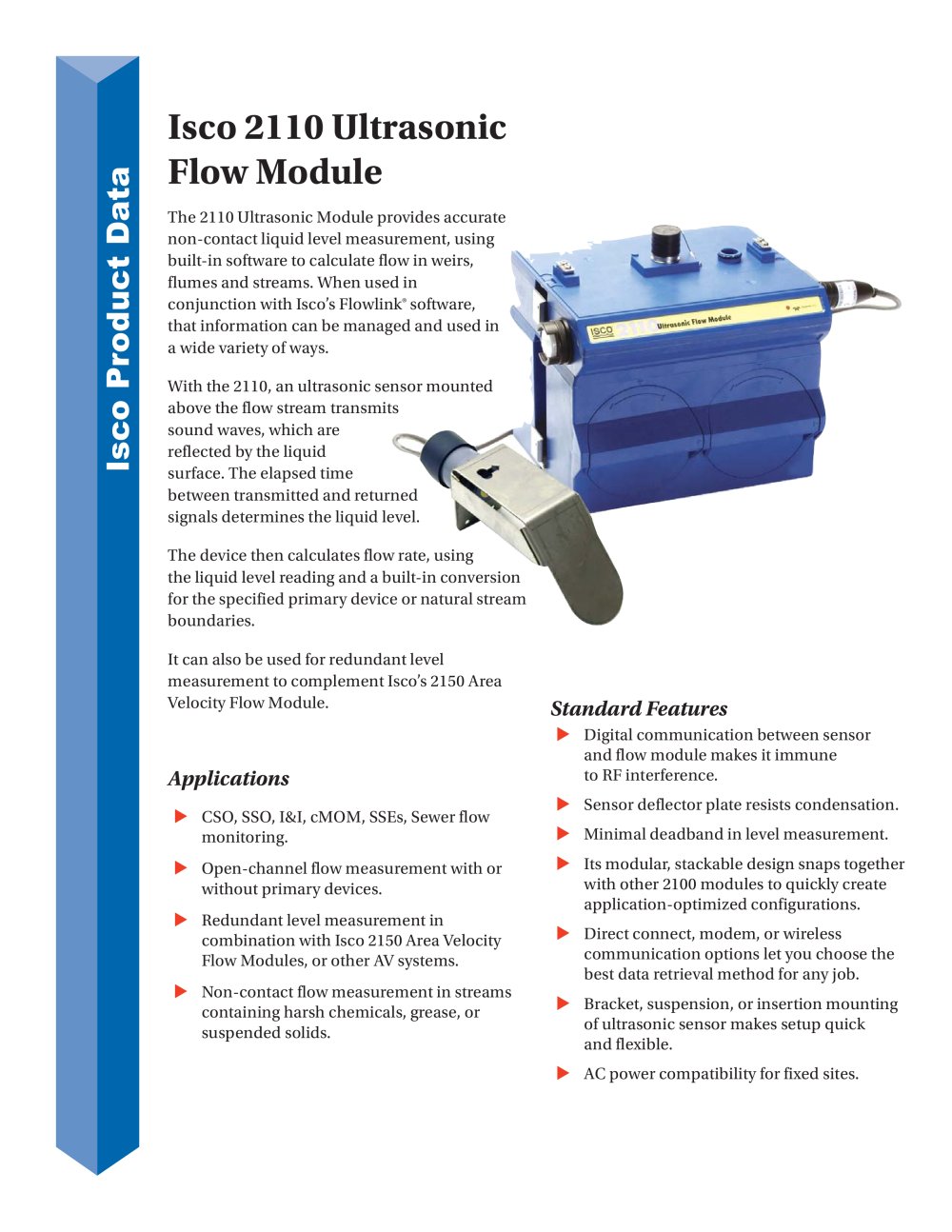

Isco Product Data Isco 2110 Ultrasonic Flow Module The 2110 Ultrasonic Module provides accurate non-contact liquid level measurement, using built-in software to calculate flow in weirs, flumes and streams. When used in conjunction with Isco’s Flowlink® software, that information can be managed and used in a wide variety of ways. With the 2110, an ultrasonic sensor mounted above the flow stream transmits sound waves, which are reflected by the liquid surface. The elapsed time between transmitted and returned signals determines the liquid level. The device then calculates flow rate, using the liquid level reading and a built-in conversion for the specified primary device or natural stream boundaries. It can also be used for redundant level measurement to complement Isco’s 2150 Area Velocity Flow Module. Applications CSO, SSO, I&I, cMOM, SSEs, Sewer flow monitoring. Open-channel flow measurement with or without primary devices. Redundant level measurement in combination with Isco 2150 Area Velocity Flow Modules, or other AV systems. Non-contact flow measurement in streams containing harsh chemicals, grease, or suspended solids. Standard Features Digital communication between sensor and flow module makes it immune to RF interference. Sensor deflector plate resists condensation. Minimal deadband in level measurement. Its modular, stackable design snaps together with other 2100 modules to quickly create application-optimized configurations. Direct connect, modem, or wireless communication options let you choose the best data retrieval method for any job. Bracket, suspension, or insertion mounting of ultrasonic sensor makes setup quick and flexible. AC power compatibility for fixed sites.

Open the catalog to page 1

Software Features Variable data storage rates can automatically be switched when conditions vary. 38.4k baud communication for speedy setup and data retrieval. Easily upgradeable. New operating software can be downloaded into non-volatile "flash" memory, without affecting your stored program or data. Rollover memory with variable rate data storage lets you change the data storage interval when programmed conditions occur. Secure data storage. All data are continuously stored in “flash” memory to protect against loss in case of power failure. Records and stores input voltage information to...

Open the catalog to page 2

Communication Options Sensor Mounting Options In-pipe Floor Stand Wall-mounted Direct connect Cellular Modbus 2110 2103 2103C 2110 2110 2110 SCADA Isco Flowlink Land line modem Analog 4-20 mA Wireless 2110 2102 (signal received by) Remote 2102 2110 2108 4-20 mA Isco 2110 Ultrasonic Sensor Isco 2110 Ultrasonic Sensor Ultrasonic Pulses Ultrasonic Pulses Ultrasonic Pulses Isco 2110 Ultrasonic Sensor Isco item #60-2004-611 Use with Isco Scissor Ring Isco Kit #60-2007-419 Bracket #60-2003-615 Contact the factory for special applications. Suspension Mount The sensor can simply be suspended above...

Open the catalog to page 3
