2105 Interface Module
4Pages

{{requestButtons}}

Catalog excerpts

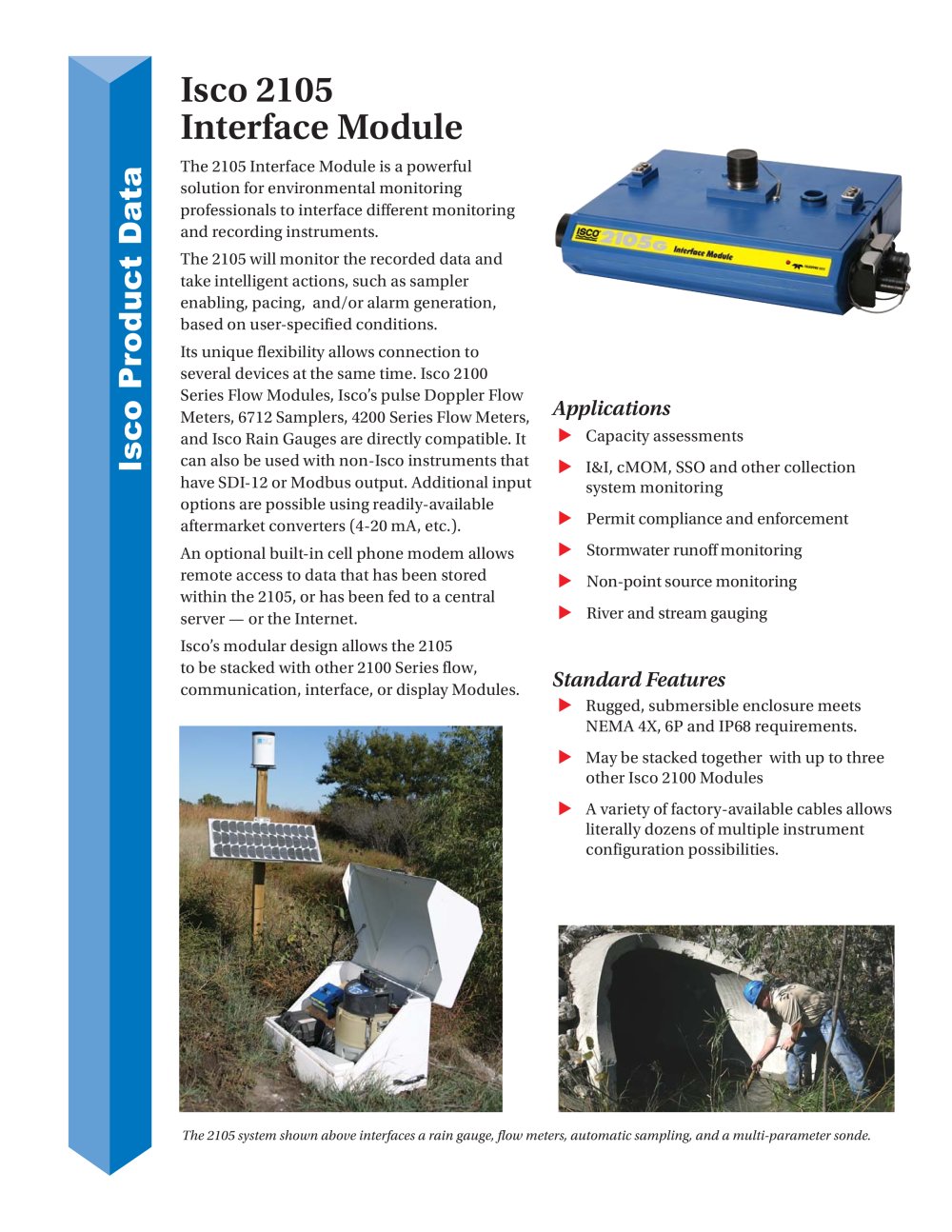

2105 Interface Module - 1

Isco 2105 Interface Module The 2105 Interface Module is a powerful solution for environmental monitoring professionals to interface different monitoring and recording instruments. The 2105 will monitor the recorded data and take intelligent actions, such as sampler enabling, pacing, and/or alarm generation, based on user-specified conditions. Its unique flexibility allows connection to several devices at the same time. Isco 2100 Series Flow Modules, Isco’s pulse Doppler Flow Meters, 6712 Samplers, 4200 Series Flow Meters, and Isco Rain Gauges are directly compatible. It can also be used with non-Isco instruments that have SDI-12 or Modbus output. Additional input options are possible using readily-available aftermarket converters (4-20 mA, etc.). An optional built-in cell phone modem allows remote access to data that has been stored within the 2105, or has been fed to a central server — or the Internet. Isco’s modular design allows the 2105 to be stacked with other 2100 Series flow, communication, interface, or display Modules. Applications Capacity assessments I&I, cMOM, SSO and other collection system monitoring Permit compliance and enforcement Stormwater runoff monitoring Non-point source monitoring River and stream gauging Standard Features Rugged, submersible enclosure meets NEMA 4X, 6P and IP68 requirements. May be stacked together with up to three other Isco 2100 Modules A variety of factory-available cables allows literally dozens of multiple instrument configuration possibilities. Isco Product Data The 2105 system shown above interfaces a rain gauge, flow meters, automatic sampling, and a multi-parameter sonde.

Open the catalog to page 1
2105 Interface Module - 2

Software Features Secure data storage. All data are continuously stored in flash memory to protect against loss in case of power failure. Easy to upgrade. New operating software can be downloaded into non-volatile flash memory, without affecting stored program and data. Records and stores input voltage and temperature data. Variable rate data storage lets you change the data storage interval when programmed conditions occur. This feature assures maximum information about an exceptional event - such as an overflow - while conserving power and data capacity during normal conditions. 38,400...

Open the catalog to page 2
2105 Interface Module - 3

Flowlink® Data Analysis Isco Flowlink® Software is a powerful tool for analyzing flow and water quality data. It provides site setup, data retrieval, and comprehensive data analysis, as well as advanced reporting and graphing. See separate data sheets for details on Flowlink and Flowlink Pro software. 2105 Interface Options Potential variations for interfacing different hardware and software to make up the comprehensive data system you desire are virtually unlimited with the 2105. Input/output choices are shown below - and may be enhanced by using available aftermarket converters. Flowlink...

Open the catalog to page 3
