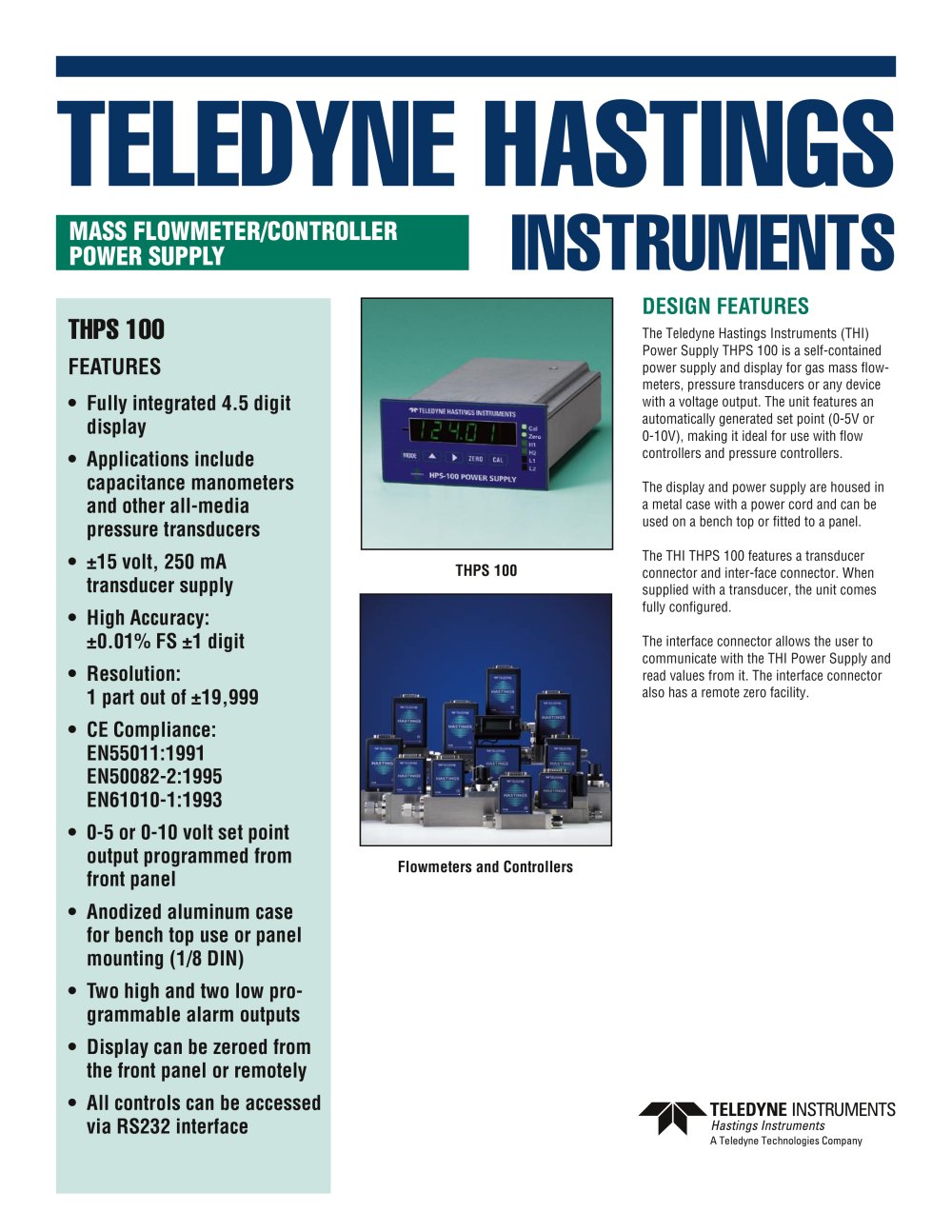

TELEDYNE HASTINGS INSTRUMENTS Flowmeters and Controllers MASS FLOWMETER/CONTROLLER POWER SUPPLY DESIGN FEATURES The Teledyne Hastings Instruments (THI) Power Supply THPS 100 is a self-contained power supply and display for gas mass flow-meters, pressure transducers or any device with a voltage output. The unit features an automatically generated set point (0-5V or 0-10V), making it ideal for use with flow controllers and pressure controllers. The display and power supply are housed in a metal case with a power cord and can be used on a bench top or fitted to a panel. The THI THPS 100 features a transducer connector and inter-face connector. When supplied with a transducer, the unit comes fully configured. The interface connector allows the user to communicate with the THI Power Supply and read values from it. The interface connector also has a remote zero facility. THPS 100 THPS 100 FEATURES • Fully integrated 4.5 digit display • Applications include capacitance manometers and other all-media pressure transducers • ±15 volt, 250 mA transducer supply • High Accuracy: ±0.01% FS ±1 digit • Resolution: 1 part out of ±19,999 • CE Compliance: EN55011:1991 EN50082-2:1995 EN61010-1:1993 • 0-5 or 0-10 volt set point output programmed from front panel • Anodized aluminum case for bench top use or panel mounting (1/8 DIN) • Two high and two low programmable alarm outputs • Display can be zeroed from the front panel or remotely • All controls can be accessed via RS232 interface

Your Customer Service Representative Telephone: (757) 723-6531 Toll Free: (800) 950-2468 Fax: (757) 723-3925 World Wide Web: http://www.teledyne-hi.com E-mail: [email protected] P.O. Box 1436 Hampton, VA 23661 Teledyne Hastings Instruments reserves the right to change or modify the design of its equipment without any obligation to provide notification of change or intent to change. SPECIFICATIONS Full Scale Input 0-5 volt or 0-10 volt Input Impedance > 1 Megaohm A/D Resolution 1 part out of ±19,999 A/D Zero Stability ±1ì V/C (typical) Command Output 0-5 volt or 0-10 volt operator...
