Teledyne Hastings Instruments Product Review

Teledyne Hastings Instruments Product Review
9Pages

Add to favorites

Catalog excerpts

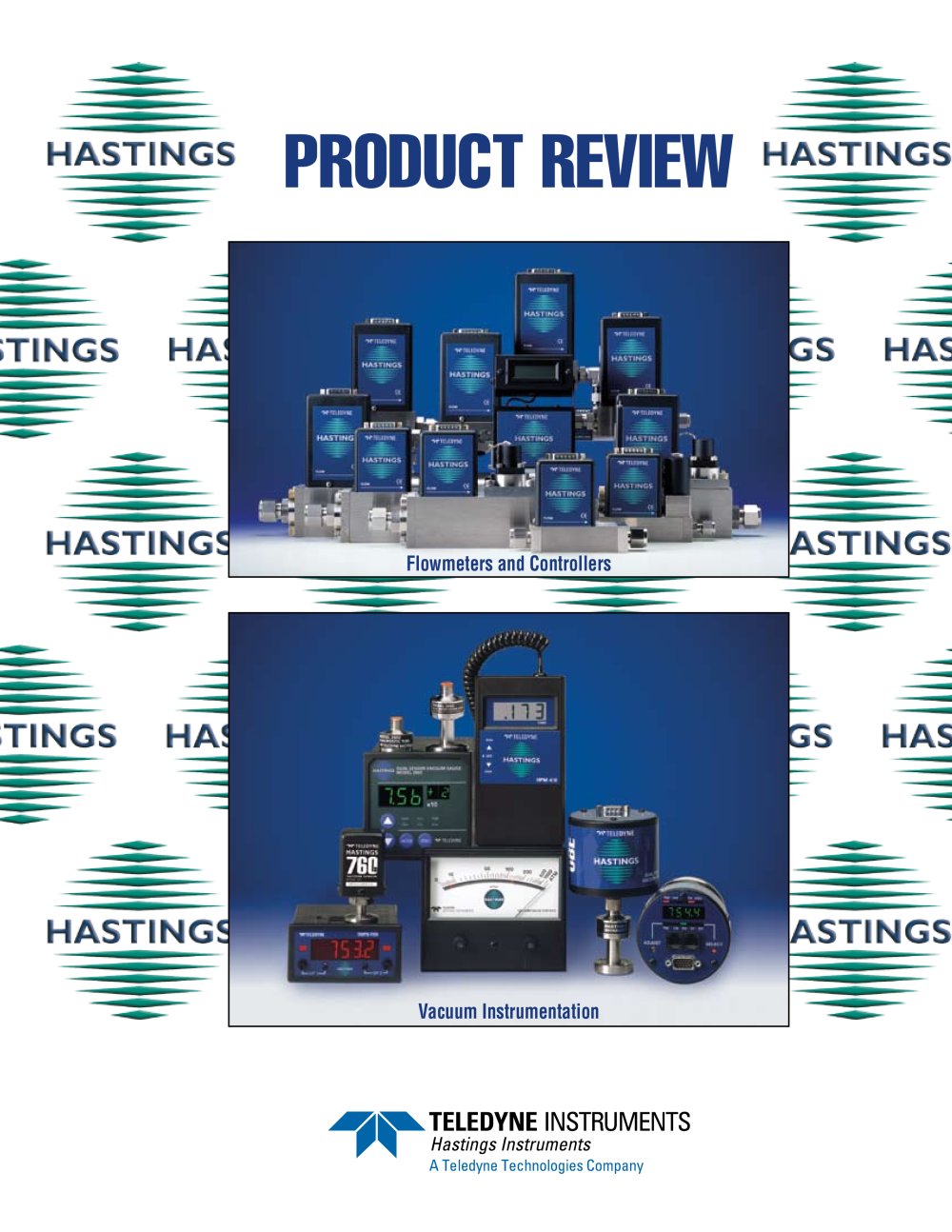

Teledyne Hastings Instruments Product Review - 1

Vacuum Instrumentation Flowmeters and Controllers >

Open the catalog to page 1

Teledyne Hastings Instruments Product Review - 2

Note: For both VT and VH Series, Hastings thermocouple vacuum gauge tubes required and sold separately. Hastings calibration reference tubes recommended. CVT > VACUUM GAUGE TUBES > HPM 4/6 WITH CARRYING CASE DIGITAL VT VT SERIES VACUUM GAUGE TUBES HPM 4/6 >

Open the catalog to page 2

Teledyne Hastings Instruments Product Review - 3

Ε Wide Dynamic Range: 10 > -4 Torr to 1000 Torr Piezo and Patented Thin-Film Pirani Sensor in a Single Gauge Tube Օ Piezo is Inherently Linear Piezo Accuracy ձ1.5% of Reading Piezo is Gas Independent Օ Piezo Sensitive up to Atmosphere Pirani Thin Film Sensor Sensitive down to 10 > -4 Torr Օ Compact Sensor Design Sensor Modules are Interchangeable Օ Over Pressure to 50 psi Diagnostic Tube Accessory Available > MODEL 2002 WITH CONTROLLER AND DIAGNOSTIC TUBE OBE Now with Device Net ՙ Award Winning Model 2002 Technology Օ Wide Dynamic Range: 1x10 > -4 Torr to 1000 Torr Combined Piezo and Pirani...

Open the catalog to page 3

Teledyne Hastings Instruments Product Review - 4

FS Ranges from 10 to 25,000 sccm (N > 2 Equivalent) Օ Accuracy 1% of Full Scale ѕ Operating Pressure: 500 psig Standard, 1000 psig Optional NIST Traceable Calibration Օ Proven Reliability Optional Features Include: Fittings, O-Ring Seals, Fast Response Circuitry, High Pressure Rating and Oxygen Service Cleaning Օ Wetted Materials Include: 316 SS, Viton > HFM-200, HFC-202 HFM-200 WITH LFE (Optional Neoprene > ή & Buna N), 82/18 Au/Ni Braze, 302 SS, Trace Silver Solder, Nickel Plating, Kalrez > Ε Accessories Include: Power Supplies/Readout and Cables > FS Ranges from 10 to 25,000 sccm (N > 2...

Open the catalog to page 4

Teledyne Hastings Instruments Product Review - 5

Ε FS Ranges from 5 to 25,000 sccm (N > 2 Equivalent) Accuracy ձ0.75% of Full-Scale Settling Time < 500 msec (Model 300), 750 msec (Model 302) Օ Operating Pressure: 500 psig Standard, 1000 psig Optional NIST Traceable Calibration Օ Low Wetted Surface Area Large Diameter Sensor Tube Օ Wetted Materials Include: > HFC-302 316 SS, Nickel 200 (Gaskets), Kalrez, Nickel Plated Pole Piece, 302 SS > FS Ranges from 25 to 1000 slm (N > 2 Equivalent) Օ Accuracy 1.0% of Full-Scale ѕ Rapid Settling Time < 0.4 seconds (Model 301), < 2.0 seconds (Model 303) Operating Pressure: 500 psig Standard, 1000 psig...

Open the catalog to page 5

Teledyne Hastings Instruments Product Review - 6

FS Ranges from 25 to 1000 slm (N > 2 Equivalent) Օ Multiple Gas Calibrations Accuracy ձ(0.5% of Reading +0.2% of Full Scale) Linear Sensor and Flow Divider Design Օ NIST Traceable Calibration Wetted Materials Include: 3 16 SS, Nickel 200 (Gaskets), Kalrez, Nickel Plated Pole Piece, 302 SS Օ 12, ѱ15 or 24 VDC Power Supply Isolated Outputs Օ RS232 or RS485 up to 19.2K baud Auto Zero Օ Runs Transparently in Analog or Digital Modes > HFC-D-303 HFC-D-307 FS Ranges from 1000 to 2500 slm (N > 2 Equivalent) Օ Accuracy (0.5% of Reading +0.2% of Full Scale) ѕ Multiple Gas Calibrations Linear Sensor...

Open the catalog to page 6

Teledyne Hastings Instruments Product Review - 7

Teledyne Hastings Instruments manufactures a complete line of instruments for precise measure-ment and control of vacuum and gas flows. Founded in 1944 as Hastings Instrument Company by Charles and Mary Hastings, the company boasts a long history of success. The late 1940s saw the introduction of thermocouple (TC) technology. This technology was the foundation for many early Hast- ings produced instruments such as air velocity indicators, thermal mass flowmeters, stack emission monitors and, of course, the thermopile vacuum sensor.By 1964, Hastings Instruments had grown into one of the...

Open the catalog to page 7

Teledyne Hastings Instruments Product Review - 8

300 Series line employs a patented flow sensor which allows fast response to changing flow rates. This series is available in both analog and highly accurate digital versions. Digital versions also offer multiple gas calibrations as well as totalizer capability and alarms and warnings for underflow or overflow. Hastings mass flow instruments do not require periodic maintenance under normal operating conditions with clean gases.Teledyne Hastings provides a wealth of expertise with regard to high flow meters, controllers, and calibration services. The HFC-307 measures and control flow rates...

Open the catalog to page 8
