Model 40, 200, & 400 Power Supplies

Model 40, 200, & 400 Power Supplies
4Pages

Catalog excerpts

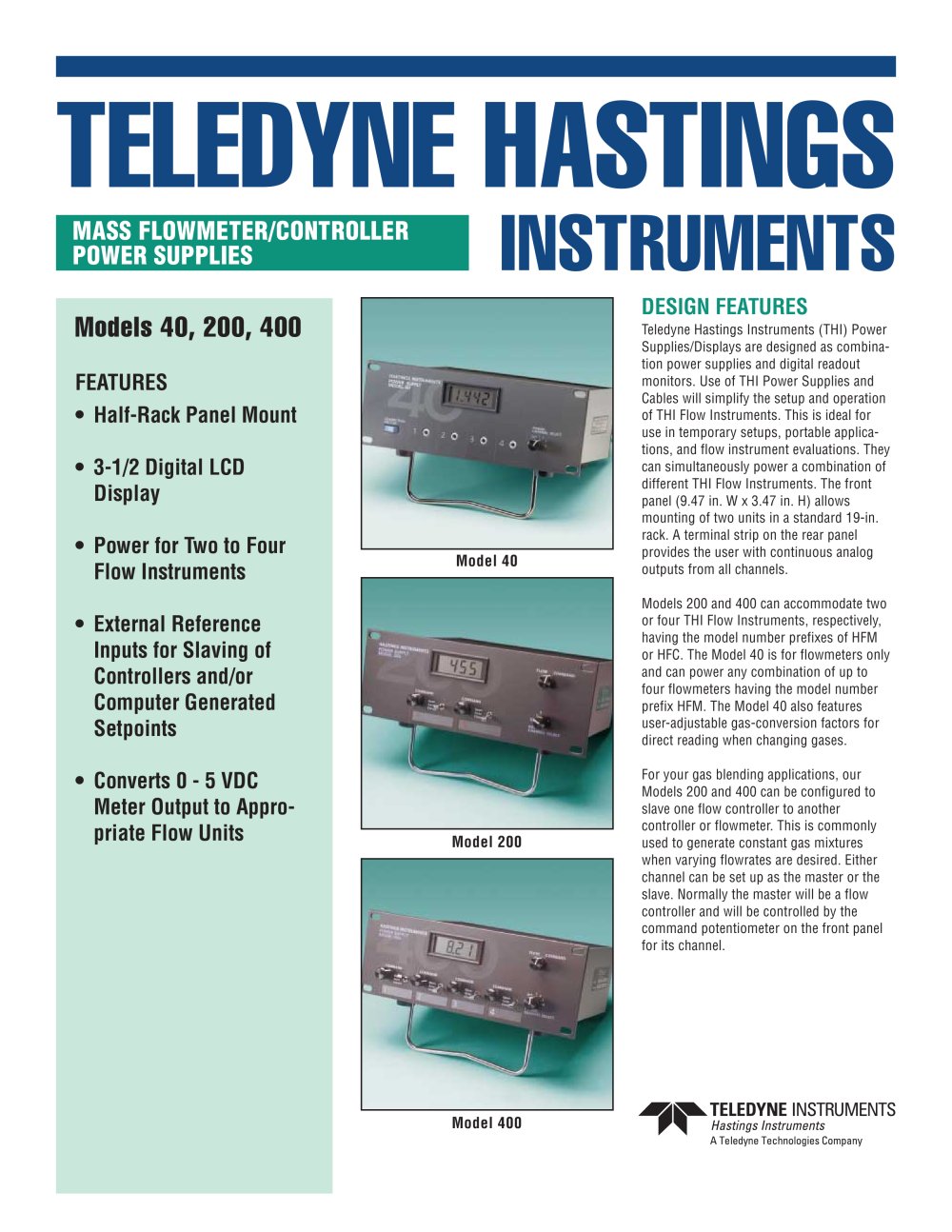

TELEDYNE HASTINGS MASS FLOWMETER/CONTROLLER INSTRUMENTS POWER SUPPLIES DESIGN FEATURES Teledyne Hastings Instruments (THI) Power Supplies/Displays are designed as combination power supplies and digital readout monitors. Use of THI Power Supplies and Cables will simplify the setup and operation of THI Flow Instruments. This is ideal for use in temporary setups, portable applications, and flow instrument evaluations. They can simultaneously power a combination of different THI Flow Instruments. The front panel (9.47 in.ÊW x 3.47 in. H) allows mounting of two units in a standard 19-in. rack. A terminal strip on the rear panel provides the user with continuous analog outputs from all channels. Models 200 and 400 can accommodate two or four THI Flow Instruments, respectively, having the model number prefixes of HFM or HFC. The Model 40 is for flowmeters only and can power any combination of up to four flowmeters having the model number prefix HFM. The Model 40 also features user-adjustable gas-conversion factors for direct reading when changing gases. For your gas blending applications, our Models 200 and 400 can be configured to slave one flow controller to another controller or flowmeter. This is commonly used to generate constant gas mixtures when varying flowrates are desired. Either channel can be set up as the master or the slave. Normally the master will be a flow controller and will be controlled by the command potentiometer on the front panel for its channel. Model 40 Model 200 Model 400 Models 40, 200, 400 FEATURES • Half-Rack Panel Mount • 3-1/2 Digital LCD Display • Power for Two to Four Flow Instruments • External Reference Inputs for Slaving of Controllers and/or Computer Generated Setpoints • Converts 0 - 5 VDC Meter Output to Appropriate Flow Units

Open the catalog to page 1

Teledyne Hastings Instruments reserves the right to change or modify the design of its equipment without any obligation to provide notification of change or intent to change. INDIVIDUAL SPECIFICATIONS Model 40 For use with flowmeters only; powers up to four instruments. Output -15 VDC at 300 mA +15 VDC at 300 mA Power 90-125/180-250 VAC / 50/60 Hz Model 200 For use with flowmeters or controllers; powers one or two instruments. Output -15 VDC at 450 mA +15 VDC at 150 mA Power 100-125/200-250 VAC / 50/60 Hz Model 400 For use with flowmeters or controllers; powers up to four instruments....

Open the catalog to page 2

MODELS 40, 200, 400 Model 40 Model 200 Panel Cut Out Panel Cut Out All dimensions shown in inches.

Open the catalog to page 3

Your Customer Service Representative Telephone: (757) 723-6531 Toll Free: (800) 950-2468 Fax: (757) 723-3925 World Wide Web: http://www.teledyne-hi.com E-mail: hastings_instruments@teledyne.com P.O. Box 1436 Hampton, VA 23661 MODELS 40, 200, 400 Model 400 Panel Cut Out PB 114-2/03 © Teledyne 2003 All Rights Reserved.
