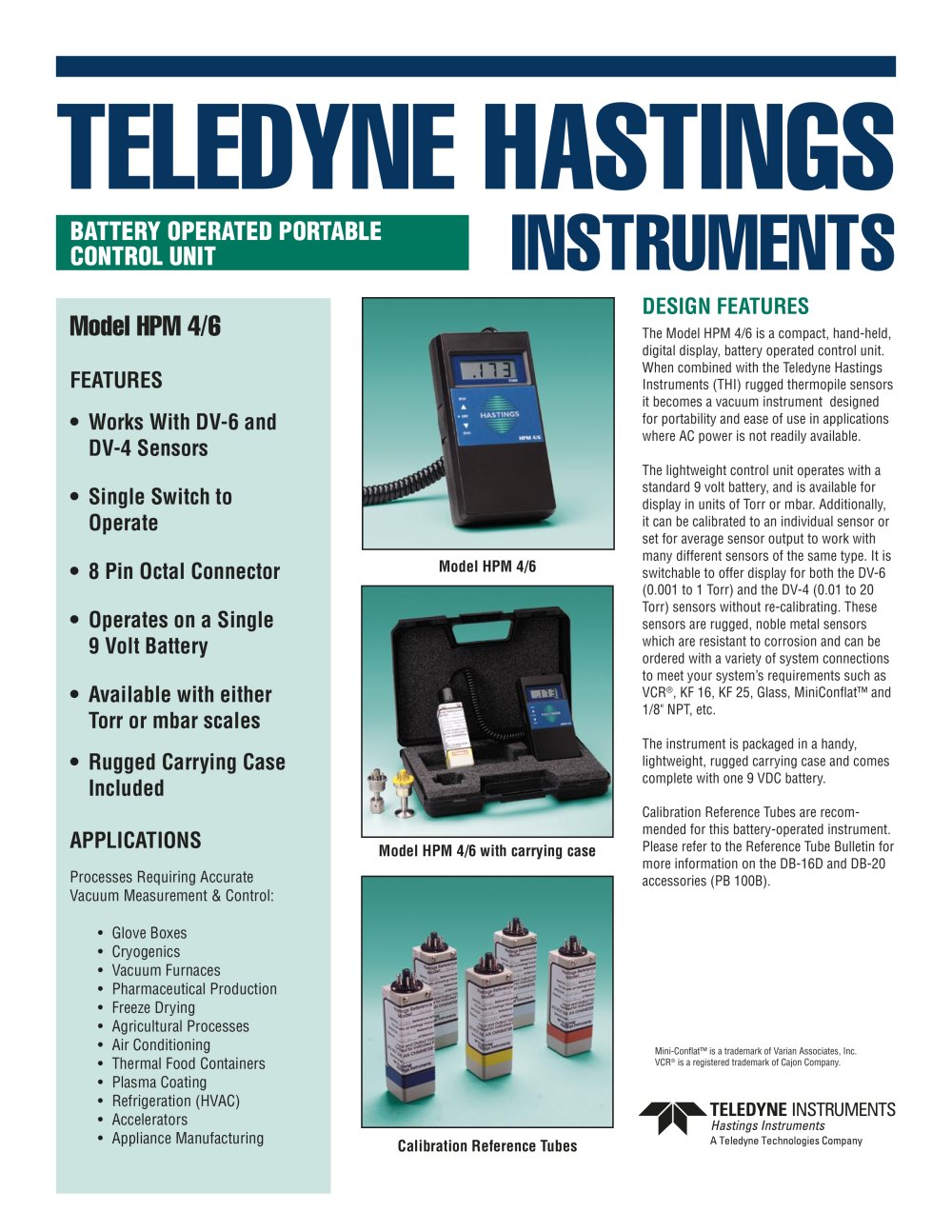

TELEDYNE HASTINGS INSTRUMENTS BATTERY OPERATED PORTABLE CONTROL UNIT Model HPM 4/6 FEATURES • Works With DV-6 and DV-4 Sensors • Single Switch to Operate • 8 Pin Octal Connector • Operates on a Single 9 Volt Battery • Available with either Torr or mbar scales • Rugged Carrying Case Included APPLICATIONS Processes Requiring Accurate Vacuum Measurement & Control: • Glove Boxes • Cryogenics • Vacuum Furnaces • Pharmaceutical Production • Freeze Drying • Agricultural Processes • Air Conditioning • Thermal Food Containers • Plasma Coating • Refrigeration (HVAC) • Accelerators • Appliance Manufacturing DESIGN FEATURES The Model HPM 4/6 is a compact, hand-held, digital display, battery operated control unit. When combined with the Teledyne Hastings Instruments (THI) rugged thermopile sensors it becomes a vacuum instrument designed for portability and ease of use in applications where AC power is not readily available. The lightweight control unit operates with a standard 9 volt battery, and is available for display in units of Torr or mbar. Additionally, it can be calibrated to an individual sensor or set for average sensor output to work with many different sensors of the same type. It is switchable to offer display for both the DV-6 (0.001 to 1 Torr) and the DV-4 (0.01 to 20 Torr) sensors without re-calibrating. These sensors are rugged, noble metal sensors which are resistant to corrosion and can be ordered with a variety of system connections to meet your system’s requirements such as VCR®, KF 16, KF 25, Glass, MiniConflat™ and 1/8" NPT, etc. The instrument is packaged in a handy, lightweight, rugged carrying case and comes complete with one 9 VDC battery. Calibration Reference Tubes are recommended for this battery-operated instrument. Please refer to the Reference Tube Bulletin for more information on the DB-16D and DB-20 accessories (PB 100B). Mini-Conflat™ is a trademark of Varian Associates, Inc. VCR® is a registered trademark of Cajon Company. Model HPM 4/6 Calibration Reference Tubes Model HPM 4/6 with carrying case

Your Customer Service Representative Telephone: (757) 723-6531 Toll Free: (800) 950-2468 Fax: (757) 723-3925 World Wide Web: http://www.teledyne-hi.com E-mail: [email protected] P.O. Box 1436 Hampton, VA 23661 Selection Chart Note: Sensors sold separately. Order No. Model Description HPM 4/6 Battery Vacuum Gauge .001 to 20 Torr One 9 VDC battery and carrying case included. NOTE: Specify Torr or mbar at time of order entry. Sensors .001 to 1 Torr .01 to 20 Torr Connection DV-6M DV-4D 1/8" NPT DV-6R DV-4R 1/8" NPT Ruggedized Tube DV-6M-VCR DV-4D-VCR 1/4" VCR DV-6R-CF — 1.33" Mini...
