HFM-200/HFC-202
4Pages

Catalog excerpts

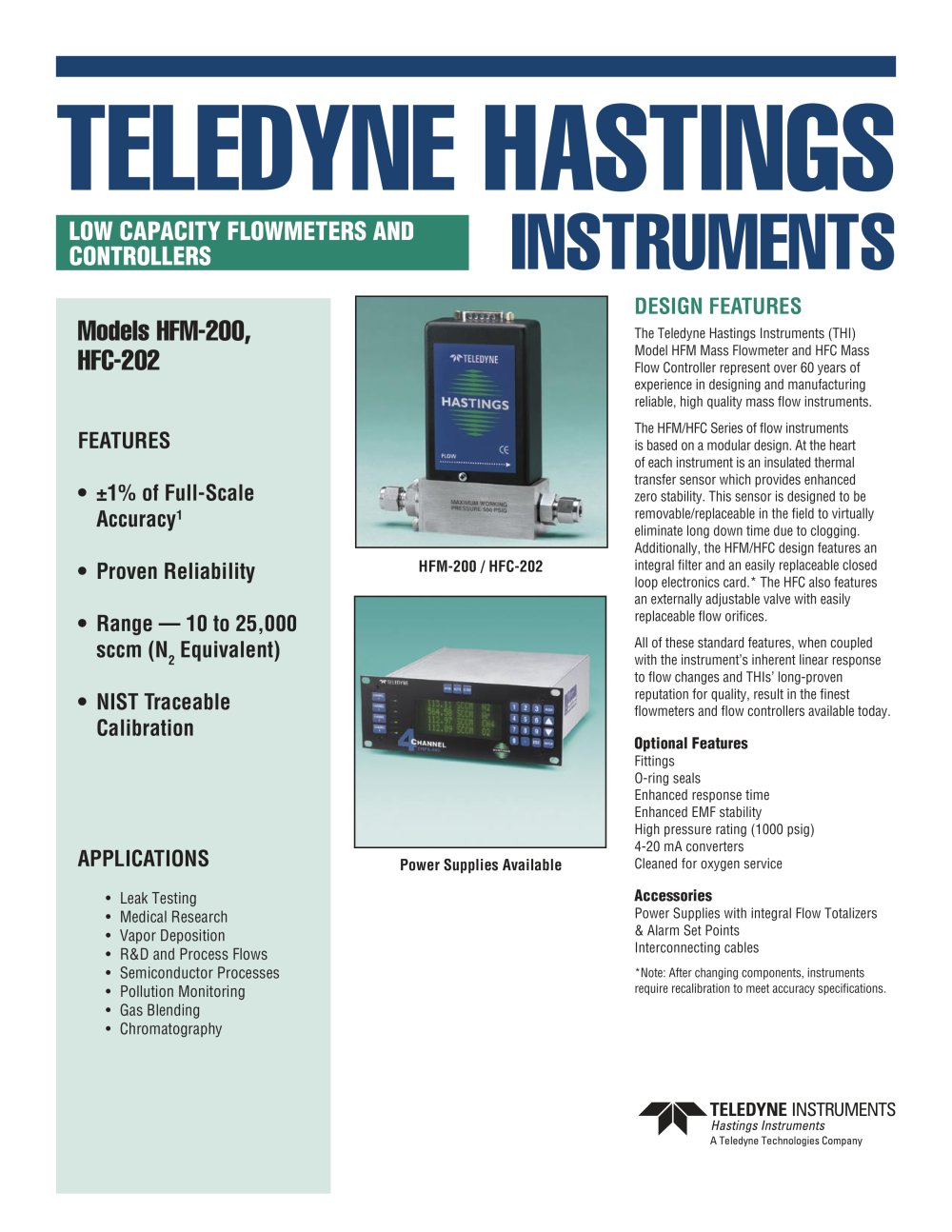

TELEDYNE HASTINGS INSTRUMENTS DESIGN FEATURES The Teledyne Hastings Instruments (THI) Model HFM Mass Flowmeter and HFC Mass Flow Controller represent over 60 years of experience in designing and manufacturing reliable, high quality mass flow instruments. The HFM/HFC Series of flow instruments is based on a modular design. At the heart of each instrument is an insulated thermal transfer sensor which provides enhanced zero stability. This sensor is designed to be removable/replaceable in the field to virtually eliminate long down time due to clogging. Additionally, the HFM/HFC design features an integral filter and an easily replaceable closed loop electronics card.* The HFC also features an externally adjustable valve with easily replaceable flow orifices. All of these standard features, when coupled with the instrument’s inherent linear response to flow changes and THIs’ long-proven reputation for quality, result in the finest flowmeters and flow controllers available today. Optional Features Fittings O-ring seals Enhanced response time Enhanced EMF stability High pressure rating (1000 psig) 4-20 mA converters Cleaned for oxygen service Accessories Power Supplies with integral Flow Totalizers & Alarm Set Points Interconnecting cables *Note: After changing components, instruments require recalibration to meet accuracy specifications. Models HFM-200, HFC-202 FEATURES • ±1% of Full-Scale Accuracy1 • Proven Reliability • Range — 10 to 25,000 sccm (N2 Equivalent) • NIST Traceable Calibration APPLICATIONS • Leak Testing • Medical Research • Vapor Deposition • R&D and Process Flows • Semiconductor Processes • Pollution Monitoring • Gas Blending • Chromatography HFM-200 / HFC-202 LOW CAPACITY FLOWMETERS AND CONTROLLERS Power Supplies Available

Open the catalog to page 1

MODELS HFM-200, HFC-202 SPECIFICATIONS HFM-200 Accuracy1 and Linearity ±1% F.S. Repeatability ±0.05% F.S. Standard Pressure Rating 500 psig Pressure Coefficient -0.0067%/psi (0-1000 psig N2) typical High-Pressure Option Proof tested to 1500 psig Leak Integrity < 1x10-9 sccs Temperature Coefficient 3 Zero ±0.035% FS/oC (0-60°C) Span ±0.05% RDG/oC (0-60°C) STP 0°C and 760 Torr Power ±15 VDC @ ± 25 mA Flow Signal (inherently linear) 0-5.00 VDC or 4-20 mA Wetted Material 2 316 SS, Viton®, 82/18 Au/Ni Braze, Trace Silver Solder Connector 15-pin subminiature D Fittings 1/4-in. Swagelok®, others...

Open the catalog to page 2

Model HFM-200 MODELS HFM-200, HFC-202 Model HFC-202 All dimensions shown are in inches [mm].

Open the catalog to page 3

Your Customer Service Representative Telephone: (757) 723-6531 Toll Free: (800) 950-2468 Fax: (757) 723-3925 World Wide Web: http://www.teledyne-hi.com E-mail: hastings_instruments@teledyne.com P.O. Box 1436 Hampton, VA 23661 MODELS HFM-200, HFC-202 PB 140A-11/05 © Teledyne 2005 All Rights Reserved. Typical instrument ordering/options number: Model No. Circuit Output Fittings O-Rings Working Calibration Board Pressure Type HFM-200 01 01 01 01 01 01 Order No. Options Circuit Board 01 Standard 02 Fast Response - No RF rejection** Output 01 0-5 Volts (Standard) 02 4-20mA Order No. Options...
