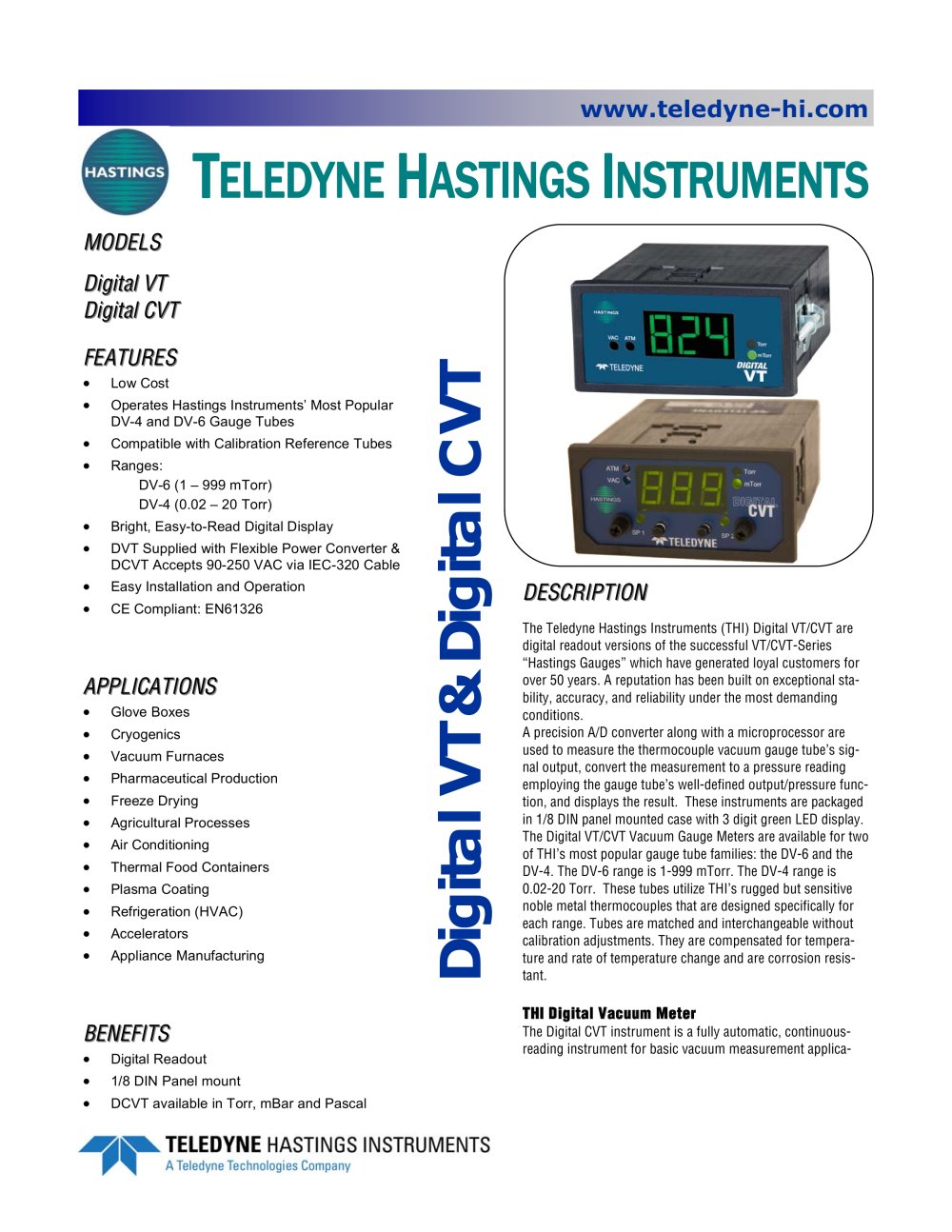

www.teledyne-hi.com TELEDYNE HASTINGS INSTRUMENTS MODELS Digital VT Digital CVT FEATURES • Low Cost • Operates Hastings Instruments’ Most Popular DV-4 and DV-6 Gauge Tubes • Compatible with Calibration Reference Tubes • Ranges: DV-6 (1 – 999 mTorr) DV-4 (0.02 – 20 Torr) • Bright, Easy-to-Read Digital Display • DVT Supplied with Flexible Power Converter & DCVT Accepts 90-250 VAC via IEC-320 Cable • Easy Installation and Operation • CE Compliant: EN61326 APPLICATIONS • Glove Boxes • Cryogenics • Vacuum Furnaces • Pharmaceutical Production • Freeze Drying • Agricultural Processes • Air Conditioning • Thermal Food Containers • Plasma Coating • Refrigeration (HVAC) • Accelerators • Appliance Manufacturing BENEFITS • Digital Readout • 1/8 DIN Panel mount • DCVT available in Torr, mBar and Pascal Digital VT & Digital CVT DESCRIPTION The Teledyne Hastings Instruments (THI) Digital VT/CVT are digital readout versions of the successful VT/CVT-Series “Hastings Gauges” which have generated loyal customers for over 50 years. A reputation has been built on exceptional stability, accuracy, and reliability under the most demanding conditions. A precision A/D converter along with a microprocessor are used to measure the thermocouple vacuum gauge tube’s signal output, convert the measurement to a pressure reading employing the gauge tube’s well-defined output/pressure function, and displays the result. These instruments are packaged in 1/8 DIN panel mounted case with 3 digit green LED display. The Digital VT/CVT Vacuum Gauge Meters are available for two of THI’s most popular gauge tube families: the DV-6 and the DV-4. The DV-6 range is 1-999 mTorr. The DV-4 range is 0.02-20 Torr. These tubes utilize THI’s rugged but sensitive noble metal thermocouples that are designed specifically for each range. Tubes are matched and interchangeable without calibration adjustments. They are compensated for temperature and rate of temperature change and are corrosion resistant. THI Digital Vacuum Meter The Digital CVT instrument is a fully automatic, continuousreading instrument for basic vacuum measurement applica

Open the catalog to page 1

DVT/DCVT digital vacuum gauge/controller - 2

www.teledyne-hi.com Design Features (cont) tions. THI Digital Vacuum Controller The Digital CVT instrument is a fully automatic, continuous-reading instrument for vacuum applications. These controllers operate in the same standard ranges as the DVT meters with the addition of two user selectable control limits. The control points are durable 10 amp single pole double throw relays which can be configured normally open or normally closed. The Digital CVT also includes a (0-1 volt) nonlinear analog output signal and a digital RS232 port as standard. Easy Setup The Digital VT/CVT includes two...

Open the catalog to page 2

DVT/DCVT digital vacuum gauge/controller - 3

www.teledyne-hi.com Outline Drawing

Open the catalog to page 3

DVT/DCVT digital vacuum gauge/controller - 4

www.teledyne-hi.com Outline Drawing Digital CVT Rear View Digital VT Rear View

Open the catalog to page 4

DVT/DCVT digital vacuum gauge/controller - 5

www.teledyne-hi.com Selection Chart Stock # Model # / Instrument selector DVT-6 Digital VT-6 kit, 1 — 999 mTorr DVT-4 Digital VT-4 kit, .02—20 Torr DCVT-6-01 Digital CVT-6 kit, 1 — 999, mTorr DCVT-6-02 Digital CVT-6 kit, 1 — 999, mBar DCVT-6-03 Digital CVT-6 kit, 1 — 999, Pascal x 0.1 DCVT-4-01 Digital CVT-4 kit, .02—20 Torr DCVT-4-02 Digital CVT-4 kit, .02—26, mBar DCVT-4-03 Digital CVT-4 kit, .02—26, Pascal x 100 Stock # Digital VT Power supply connector 12-01-165 UK Service 12-01-164 European Service Vacuum Gauge Tubes 1000 mTorr Range 55-38R DV-6 1000 mT Vac Gauge Tube/Rugged 55-38S...
