The TELEDYNE TITAN™ HM Generator Series is designed for hydrogen and oxygen gas systems, offering ultrapure, pressurized gas delivery with simplified installation and high reliability. The series includes models HMXT-50, HMXT-100, and HMXT-200, each providing on-demand gas delivery with enhanced safety and automatic operation features.
Key Features
- Ultrapure Gas: Delivers hydrogen gas at 99.9998% purity and oxygen gas at 99.999% purity, with a delivery pressure of 10 bar for hydrogen.
- Installation: Compact design for installation in classified areas, compliant with ANSI/NFPA 70 standards, and shipped fully assembled for ease of installation.
- Quality and Reliability: Manufactured under ISO 9001 standards with ASME certified pressure vessels, ensuring high quality and reliability.
- Safety and Operation: Features automatic operation with continuous monitoring, UPS for safe depressurization, and minimal on-board gas storage for enhanced safety.
Specifications
- Hydrogen Production: Ranges from 50 to 200 SLM, with maximum flow rates of 2.8 to 11.2 nm3/hr.
- Oxygen Production: Ranges from 25 to 100 SLM, with maximum flow rates of 1.4 to 5.6 nm3/hr.
- Power Supply: Configured for 380-480 VAC, 3 Phase, 50 or 60 Hz.
- Environmental Conditions: Suitable for indoor or outdoor installation in environments between 5°C and 40°C.
- Cooling Requirements: Maximum inlet temperature of 40°C, with a maximum flow of 40 lpm for cooling water.
Applications
- Semiconductor and electronics fabrication
- Argon purification
- Metals processing
- Power generator cooling
- Fuel cell testing
Additional Information
The system is designed for ease of use with a modernized human-machine interface (HMI) and a distributed I/O system using DeviceNet Network for flexibility and reduced installation time. The system's design reduces preventive maintenance time by up to 30%.
Catalog excerpts

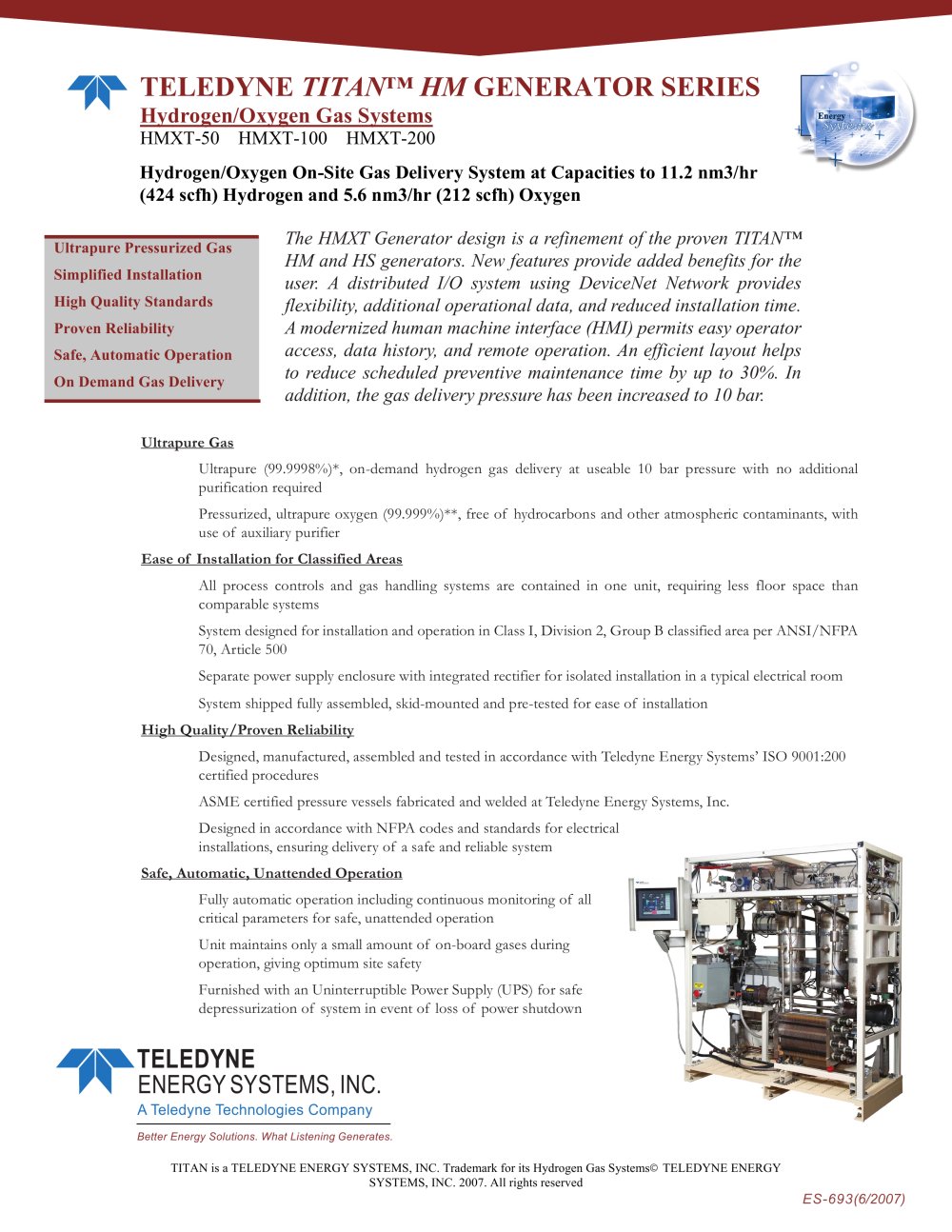

Ultrapure Gas Ultrapure (99.9998%)*, on-demand hydrogen gas delivery at useable 10 bar pressure with no additional purification requiredPressurized, ultrapure oxygen (99.999%)**, free of hydrocarbons and other atmospheric contaminants, with use of auxiliary purifier Ease of Installation for Classified Areas All process controls and gas handling systems are contained in one unit, requiring less floor space than comparable systemsSystem designed for installation and operation in Class I, Division 2, Group B classified area per ANSI/NFPA 70, Article 500Separate power supply enclosure with integrated rectifier for isolated installation in a typical electrical roomSystem shipped fully assembled, skid-mounted and pre-tested for ease of installation High Quality/Proven Reliability Designed, manufactured, assembled and tested in accordance with Teledyne Energy Systems ISO 9001:200certified proceduresASME certified pressure vessels fabricated and welded at Teledyne Energy Systems, Inc.Designed in accordance with NFPA codes and standards for electricalinstallations, ensuring delivery of a safe and reliable system Safe, Automatic, Unattended Operation Fully automatic operation including continuous monitoring of all critical parameters for safe, unattended operationUnit maintains only a small amount of on-board gases during operation, giving optimum site safetyFurnished with an Uninterruptible Power Supply (UPS) for safe depressurization of system in event of loss of power shutdown > A Teledyne Technologies Company Better Energy Solutions. What Listening Generates. TITAN is a TELEDYNE ENERGY SYSTEMS, INC. Trademark for its Hydrogen Gas Systems ҩ TELEDYNE ENERGY SYSTEMS, INC. 2007. All rights reserved ES-693(6/2007) size="-2">
Open the catalog to page 1
H > 2 Delivery Pressure kg/cm > 2 gauge 10.3 psig 147 > O > 2 Delivery Pressure kg/cm > 2 gauge 8.4 psig 120 > Max.Inlet Temp. ٰC 40 F 104 Max.Flow lpm 40 gpm 11 > Condenser Cooling Water > Min allowable temperature аC 10 Max allowable pressure kg/cm > 2 gauge 7Required Flow lpm 4Pressure Drop 0.2 kg/cm > 2 gaugeMaximum Heat Load kW 1 > Purge Gas N or other inert gasPressure kg/cm > Feed Water Specification ASTM D1193-99, Type IV Min.Resistivity MegOhm-cm 0.2Min. Supply Pressure kg/cm > *Subject to ambient and condenser water temperatures**With use of optional HM O2 purifier 2 gauge 3.5 psig...
