PRODUCTS OVERVIEW SENSORS | CAMERAS | FRAME GRABBERS | PROCESSORS | SOFTWARE | VISION SOLUTIONS ADVANCED IMAGE CAPTURE, ACQUISITION, AND PROCESSING MACHINE VISION >

1 A GLOBAL VISION COMPANY We maintain industry leadership through extensive and ongoing investment in the development of advanced image capture, acquisition and processing technologies.DALSA is a fully integrated manufacturer with its own semiconductor foundry one of the world֒s few remaining openӔ foundries. From the research and design of image sensor technology to the development of software to support our cameras and vision solutions, we bring engineering expertise and capability to machine vision like no other manufacturer. VISIONSOLUTIONSPROCESSORS SOFTWARE 2 4 6 8 10 12 FRAMEGRABBERS...

3 ADVANCED IMAGE CAPTURE CAMERAS LINE SCAN Line scan imaging uses a single line of pixels to build seamless two-dimensional images of moving objects. DALSA line scan cameras are designed to optimize speed, responsivity, and dynamic range. AREA SCAN HIGH SENSITIVITY LINE SCAN Our area scan cameras offer the most advanced feature sets in the industry. Models can include global shutter, programmable operation, electronic shuttering, Camera Link or GigE interface or mounting adapters for readily-available lenses, color, backside-thinned for UV sensitivity, and built-in pixel correction. For low...

80 x 85 x 54 mm50 x 50 x 88 mm85 x 85 x 55 mm 150 x 80 x 65 mm76 x 105 x 50 mm NEW! Color Models LINE SCAN HIGH SPEED SERIES Genie HM640640 x 480 @ 300 fps - 7.4m Genie HM10241024 x 768 @ 117 fps - 7.4յm Genie HM14001400 x 1024 @ 64 fps - 7.4m COLOR SERIES Genie C640-1/2640 x 480 @ 64 fps - 9.9յm Genie C640-1/3640 x 480 @ 64 fps - 7.4m Genie C10241024 x 768 @ 20 fps - 4.65յm Genie C1400-1/21360 x 1024 @ 15 fps - 4.65m Genie C1410-2/31360 x 1024 @ 21.8 fps - 6.45յm Genie C16001600 x 1200 @ 15 fps - 4.4m FALCON 1.4M100FALCON 2M30/4M15FALCON 4M30/60PANTERA 1M, 6M, 11MPANTERA 22MSPYDER 3SPYDER...

DIGITAL SOLUTIONS PCI ANALOG SOLUTIONS X64 XCELERA-CL PX4 DUAL/FULLX64 XCELERA-CL PX4 SEFX64 XCELERA-LVDS PX4X64-CL EXPRESSPC2-VISIONX64-AN QUADX64-CL FULLX64-CL IPROPC2-CAMLINKX64-LVDS 1 DIGITAL SOLUTIONS FEATURES 1 Available Q1 2009. Contact DALSA Sales for details *Compatible. List of supported features may vary with Linux version and board model X64 XCELERA-AN LX1 QUADPC2-VISION EXPRESSPC2-COMP EXPRESSX64 XCELERA-CL LX1 BASE TRIGGER-TO-IMAGE RELIABILITY RoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS, CE, FCCRoHS,...

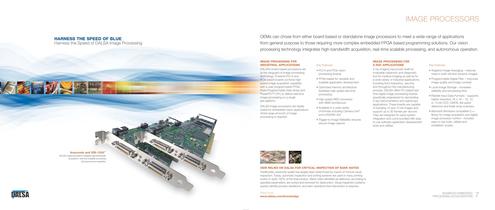

7 ADVANCED EMBEDDED PROCESSING ACCELERATORS IMAGE PROCESSORS IMAGE PROCESSING FOR X-RAY APPLICATIONS X-ray imaging has proven itself an invaluable inspection and diagnostic tool for medical imaging as well as for a wide variety of industrial applications including food inspection, security, and throughout the manufacturing process. DALSA offers PC based real- time digital image processing boards specifi cally engineered for demanding X-ray instrumentation and radioscopy applications. These boards are capable of handling 10 and 12-bit images and support up to 30 frames per second. They are...

9 ACQUISITION CONTROL AND IMAGE PROCESSING POWERFUL IMAGE PROCESSING AND ANALYSIS Sapera Essential processing libraries include highly optimized functions for morphology, fi lters, geometric, measurement, segmentation, point-to- point operations, transforms, and other processing functions with sub-pixel accuracy. Sapera Essential includes a powerful board confi guration and camera setup utility plus a suite of image processing tools including a highly advanced, yet cost effective search package that supports both area and edge-based pattern fi nding, a versatile barcode tool for both 1-D...

Trigger-to-Image Reliability ensures highly reliable acquisition control throughout the image capture and processing sequence, from the time that a trigger is fi red (part in place), to the time the image is transferred to the host computer for processing, to the time a decision is made to accept or reject the part. This level of dependability is accomplished by integrating various image acquisition control functions - including trigger inputs, strobe outputs, camera control signals and external I/O - onto on-board hardware and using software API functions for command and control. CamExpert...

11 INDUSTRIAL VISION SOLUTIONS ADVANCED FACTORY FLOOR SOLUTIONS FLAW DETECTION MEASUREMENT Surface fl aws are often hard to detect, even by humans. Often they are low- contrast and random in their patterns. DALSA vision solutions allow easy integration of critical components like lighting to show all classes of fl aws. Attention to the inspection environment and image quality is as important as the vision algorithms themselves. DALSA sub-pixel measurement tools, combined with the right optics and stable lighting, provide the precision and repeatability to ensure manufacturing accuracy....
