System T20
System T20
The manual provides comprehensive instructions for the Tele Radio T20/T60 systems, emphasizing the importance of reading it before installation and programming. It stresses the necessity of co-coding transmitters and receivers prior to use.
Only trained personnel should operate the system. The transmitter should not be left unattended, and operators must maintain a clear view of the equipment.
The system operates at 433.92 MHz using frequency modulation (FM), which is less prone to electrical interference than amplitude modulation (AM). The typical range is 50-100 meters, though obstacles and other transmitters can affect this.
Receivers should be installed in weather-protected areas with antennas placed high and away from metal objects. Proper installation involves selecting a suitable location, connecting the operating voltage, co-programming the transmitter and receiver, and connecting necessary functions.
Transmitters and receivers must be co-coded. The T60 system allows for adjustable or fixed codes, while the T20 system uses fixed codes. Both systems are compatible with Tele Radio's system 460.
Various receiver models are detailed with specifications such as operating voltage, power consumption, size, protection level, and compatibility. Each model includes instructions for programming and erasing transmitter codes.
Instructions for storing and erasing transmitter codes are provided. Up to 60 transmitters can be stored, involving pressing the receiver's self-instruction button and entering the transmitter's code within a 6-second window.
The manual includes a troubleshooting chart and guidelines for servicing and maintenance to ensure optimal system performance.
This document provides detailed instructions for programming and operating various handheld transmitters and receivers, specifically models T20, T60, and 460. It includes specifications, procedures for programming, and guidelines for ensuring proper functionality.
- Protection ratings vary between IP 40 and IP 65 depending on the model.
- Operational temperature range is -20°C to +55°C with humidity levels between 0-90%.
- Battery types include CR2032, CR2430, and AAA, depending on the transmitter model.
- Transmitter Programming: The process involves selecting the desired function using the receiver's button, confirming with the transmitter's button, and verifying code storage through LED indicators.
- Stopping and Deleting Codes: Instructions are provided for stopping a transmitter and deleting all stored codes by holding the receiver's button for specified durations.
- Receiver Programming: The receiver's function and select buttons are used to program options such as self-instruction of code, changeover/instantaneous function, and interlock function.
- Red LED indicates code learning and storage.
- Yellow LED indicates changeover function activation.
- Green LED indicates interlock function activation.
- Changeover/Instantaneous Function: Allows selection between changeover and instantaneous relay functions.
- Interlock Function: Provides options for interlocking between specific relay pairs.
- Compatibility details for transmitters in systems T60 and 460, including specific models and coding instructions.
- Instructions for setting system and code switches to ensure compatibility and proper operation.
Catalog excerpts

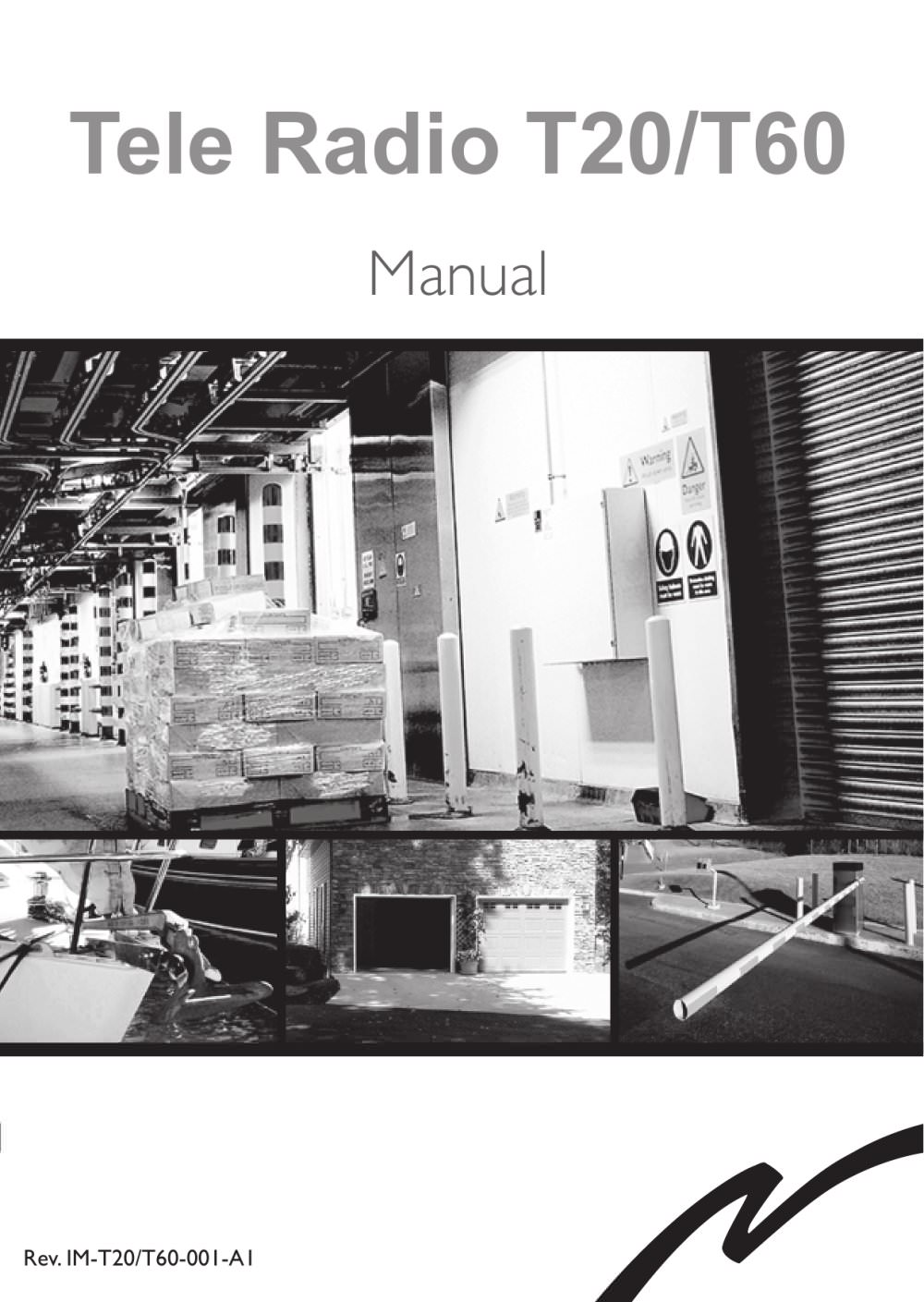

Tele Radio T20/T60 Manual Rev. IM-T20/T60-001-A1 de TELE RADIO ASIA China Tel. +86-(0)592-3111168 e-mail: [email protected] TELE RADIO TURKEY Turkey Tel. +90-532 292 4448 e-mail: [email protected] TELE RADIO AS Norway Tel. +47-6933 4900 e-mail: [email protected]
Open the catalog to page 1
EN DE FR ES EE NL SE NO DK 259 General information Frequency modulation The system works at the frequency 433.92 MHz and uses frequency modulation, generally known as FM. The main benefit of using FM instead of the more common AM (amplitude modulation), is that FM is less sensitive to the electrical interference generated in computers, electric motors, etc. Range The normal range for the transmitter in an interference-free environment is about 50-100 m. Objects positioned between the transmitter and receiver antenna, in particular large metal objects, can affect the range in a very unpredictable...
Open the catalog to page 3
EN DE FR ES NL SE NO DK EE 260 Codes Transmitters and receivers that are to be used together must be co-coded prior to use. Transmitter System T60: The transmitter and receiver in system T60 can be programmed in two different ways. Either with an adjustable or fixed individual code. Each transmitter supplied has a fixed, individual code that cannot be altered. All transmitters are also equipped with a code switch that comprises 10 three-position switches, which makes it possible to choose between 59,049 adjustable codes. For more detailed information please refer to the "programming the receiver"...
Open the catalog to page 4
EN DE FR ES EE NL SE NO DK 261 Receiver STANDARD RECEIVER T20RX-03ASL Operating voltage: 1 2-30 V AC/DC Power consumption: 25-75 mA Size: 1 32 x 133 x 45 mm Protection: IP 65 Climatic conditions: -30°C till +70°C Humidity 10-90% Transmitter compatibility: T20, T60, 460 1. Green LED LED lights up when the receiver receives a radio signal. 2. Yellow LED LED lights up when the receiver has the correct operating voltage. 3.Red LED LED lights up above the relay that is actuated and shows the programming status. 4. Button Button for self-instruction / erasing. 5. Connection terminal Connection terminal...
Open the catalog to page 5
EN DE FR ES NL SE NO DK EE 262 Pro gramm ing the re ceiver T20RX-03ASL Self-instructing the transmitter code 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 Storing codes 60 transmitters can be stored in the receiver. The number in brackets below refers to the summary diagram in section “T20RX-03ASL” 1. Remove the receiver cover (four screws). 2. Press the receiver’s button for self-instruction (4) once. The red LEDs (3) light up above the relays. The receiver is open for code registration for 6 seconds. NOTE! The next stage must be carried out within 6 seconds. 3. Press button 1 on the transmitter to...
Open the catalog to page 6
EN DE FR ES EE NL SE NO DK 263 DIN RECEIVER T20/T60RX-03ADL Operating voltage: 1 2-30 V AC/DC Power consumption: 40-80 mA Size: 85 x 62 x 30 mm Protection: IP 20 Climatic conditions: -30°C till +70°C Humidity <95% Transmitter compatibility: T20, T60, 460 1. Yellow LED LED lights up when the receiver has the correct operating voltage. 2.Red LED LED shows programming status. 3. Green LED LED lights up when the receiver receives a radio signal. 4. Button Button for self-instruction / erasing. 5. BNC BNC contact for the antenna. 6. Connection terminal Connection terminal for voltage. 7. Connection...
Open the catalog to page 7
EN DE FR ES NL SE NO DK EE 264 T20/T60RX-03ADL Self-instruction of Transmitter’s Code 1 2 3 4 5 6 Storing codes 60 transmitters can be stored in the receiver. The number in brackets below refers to the summary diagram in section “T20/T60RX-03ADL” 1. Press the receiver’s button for self-instruction (4) once. The red LED (2) lights up. The receiver is open for code registration for 6 seconds. NOTE! The next stage must be carried out within 6 seconds. 2. Press button 1 on the transmitter to enter the transmitter’s fixed code in the receiver’s memory. (Button 1 controls relay 1, button 2 controls...
Open the catalog to page 8
EN DE FR ES EE NL SE NO DK 265 Receiver PLUG-IN T20/T60RX-01APL Operating voltage: 1 2-30 V AC/DC Power consumption: 40-80 mA Size: 70 x 58 x 40 mm Protection: IP 20 Climatic conditions: -30°C till +70°C Humidity <95% Transmitter compatibility: T20, T60, 460 1.Red LED LED shows programming status. 2. Yellow LED LED lights up when the receiver has the correct operating voltage. 3. Green LED LED lights up when the receiver receives a radio signal. 4. Button Button for self-instruction / erasing. 5. BNC BNC contact for the antenna. 6. Relay Max load over relay is 8 A for resistive loads. 1 2 3 4...
Open the catalog to page 9
EN DE FR ES NL SE NO DK EE 266 Receiver T20/T60RX-01ARL Operating voltage: 1 2-30 V AC/DC Power consumption: 40-80 mA Dimensions ARL: 54 x 63 x XX mm Climatic conditions: -30°C till +70°C Humidity <95% Transmitter compatibility: T20, T60, 460 1.Red LED LED shows programming status. 2. Yellow LED LED lights up when the receiver has the correct operating voltage. 3. Green LED LED lights up when the receiver receives a radio signal. 4. Button Button for self-instruction / erasing. 5. Relay Max load over relay is 8 A for resistive loads. 6. Connection terminal Connection terminal for voltage. 7....
Open the catalog to page 10
EN DE FR ES EE NL SE NO DK 267 T20/T60RX-01APL, and T20/T60RX-01ARL Self- instruction of Transmitter’s Code 2 3 4 5 6 Storing codes 60 transmitters can be stored in the receiver. The number in brackets below refers to the summary diagram for each receiver. 1. Press the receiver’s button for self-instruction (4) once. The red LED (1) lights up. The receiver is open for code registration for 6 seconds. NOTE! The next stage must be carried out within 6 seconds. 2. Press the transmitter button to be used to control the relay. - The red LED flashes three times. 3. To program a T60 adjustable code...
Open the catalog to page 11
EN DE FR ES NL SE NO DK EE 268 1 Receiver T20RX-02AKL Operating voltage: 1 2-30 V AC/DC Power consumption: 30-80 mA Size: 54 x 96 x 37 mm Protection: IP 54 Climatic conditions: -30°C till +70°C Humidity 10-90% Transmitter compatibility: T20 1. Yellow LED LED lights up when the receiver has the correct supply voltage. 2. Green LED LED lights up when the receiver receives a radio signal. 3. BNC BNC contact for the antenna. 4. Push-button Programming relay function and transmitter. 5. Red LED LED indicates during programming. 6. AC/DC connection terminal Connection terminal for voltage. 7. Bushing...
