Right Angle Gearmotor

Right Angle Gearmotor
1 / 25 PagesView full catalog

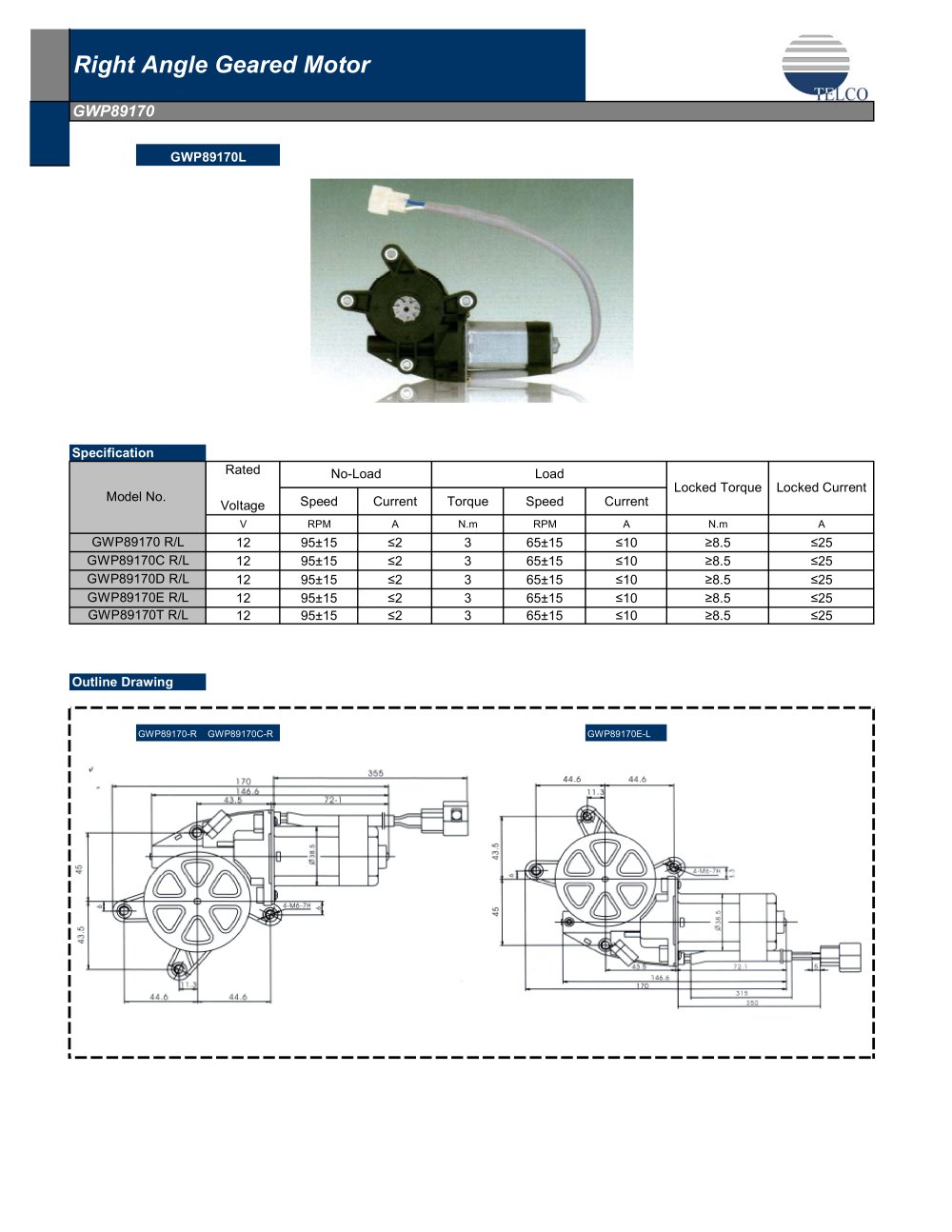

Right Angle Gearmotor

Product catalog summary
Overview: This document provides technical specifications for various models of right angle geared motors. Each model is detailed with its performance characteristics under no-load and load conditions, including speed, current, and torque specifications.
Specifications:
  • Voltage: The motors operate at rated voltages of 10.5V, 12V, and 24V depending on the model.
  • Speed: The speed is specified in RPM with a tolerance range, varying across models from 35±10 RPM to 95±15 RPM.
  • Current: Current ratings are provided for both no-load and load conditions, with maximum values ranging from ≤1A to ≤4A.
  • Torque: Torque is measured in Newton-meters (N.m), with locked torque values specified for each model.
Performance Curves: Each motor model includes a performance curve that illustrates the relationship between speed, current, and torque under different operating conditions.
Model Variants: The document lists multiple model numbers, each with specific right/left (R/L) configurations, indicating the direction of rotation or mounting.
Contact Information: The document provides contact details for Telco Intercontinental Corp., located in Houston, TX, for further inquiries or support.
See more

Catalog excerpts

Right Angle Gearmotor-2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Tahoma", sans-serif; } .font1 { font:8.00pt "Tahoma", sans-serif; } POWSRINC YOUR DESIGN 9812 Whithorn Dr., Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]

 Open the catalog to page 2
Right Angle Gearmotor-3

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Tahoma", sans-serif; } .font4 { font:8.00pt "Tahoma", sans-serif; } Right Angle Geared Motor 1 GWP66160R Model No. Rated Voltaae No-Load Load Locked Torque Locked Current Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP66160 R/L 12 95±15 <2 3 65±15 <10 >8.5 <25 GWP66160A R/L 12 95±15 <2 3 65±15 <10 >8.5 <25 Outline Drawing POWERING YOVR DESIGN 9812 Whithorn Dr.,...

 Open the catalog to page 3
Right Angle Gearmotor-4

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Tahoma", sans-serif; } Right Angle Geared Motor Model No. Rated Voltaae No-Load Load Locked Torque Locked Current Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP76190 R/L 10.5 80±10 <3 7.9 25±5 <17 10.2 <21 Outline Drawing Performance Curve 9812 Whithorn Dr, Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]

 Open the catalog to page 4
Right Angle Gearmotor-5

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Tahoma", sans-serif; } .font4 { font:8.00pt "Tahoma", sans-serif; } Right Angle Geared Motor Spcification Model No. Rated Voltaae No-Load Load Locked Torque Locked Current Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP76189 R/L 10.5 80±10 <3 7.9 25±5 <17 10.2 <21 Outline Drawing erformance Curve POWSEING YOUR DESICX 9812 Whithorn Dr., Houston, TX77095, Phone: 281.855.2218,...

 Open the catalog to page 5
Right Angle Gearmotor-6

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Tahoma", sans-serif; } Right Angle Geared Motor Model No. Rated Voltaae No-Load Load Locked Torque Locked Current Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP41172 R/L 12 80±10 <3 3 65±15 <10 >8.5 <25 Outline Drawing 9812 Whithorn Dr,, Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]

 Open the catalog to page 6
Right Angle Gearmotor-7

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Tahoma", sans-serif; } Right Angle Geared Motor Spcification Model No. Rated Voltaae No-Load Load Locked Torque Locked Current Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP89188 R/L 12 80±10 <3 3 65±15 <10 >8.5 <25 Outline Drawing Performance Curve 9812 Whithom Dr,, Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]

 Open the catalog to page 7
Right Angle Gearmotor-8

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Tahoma", sans-serif; } .font4 { font:8.00pt "Tahoma", sans-serif; } Right Angle Geared Motor Spcification Model No. Rated Voltaae No-Load Load Locked Torque Locked Current Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP71175B R/L 10.5 90±10 <3.7 5.1 50±10 <15 >9 <25 Outline Drawing Performance Curve POWSRING YOUR DESIGN 9812 Whithorn Dr., Houston, TX77095, Phone:...

 Open the catalog to page 8
Right Angle Gearmotor-9

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } Right Angle Geared Motor GWP74178-L Rated Voltage No-Load Load Locked Torque Locked Current Model No. Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP74178 R/L 10.5 90±10 <3.7 5.1 50±10 <15 >9 <25 GWP74178A R/L 10.5 90±10 <3.7 5.1 50±10 <15 >9 <25 GWP74178B R/L 10.5 90±10 <3.7 5.1 50±10 <15 >9 <25 Outline Drawing GWP74178-L

 Open the catalog to page 9
Right Angle Gearmotor-10

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Tahoma", sans-serif; } TWM13410A-L 9812 Whithom Dr,, Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]

 Open the catalog to page 10
Right Angle Gearmotor-11

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } Right Angle Geared Motor Rated Voltage No-Load Load Locked Torque Locked Current Model No. Speed Current Torque Speed Current V RPM A N.m RPM A N.m A GWP73178 R/L 12 70±10 <3 6 30±10 <13 >9 <23 GWP73178A R/L 12 70±10 <3 6 30±10 <13 >9 <23

 Open the catalog to page 11
Right Angle Gearmotor-12

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Tahoma", sans-serif; } GWP73178A-L 9812 Whithorn Dr, Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]

 Open the catalog to page 12
