Micro DC Gearmotor Catalog

Micro DC Gearmotor Catalog
1 / 11 PagesView full catalog

Micro DC Gearmotor Catalog

Product catalog summary

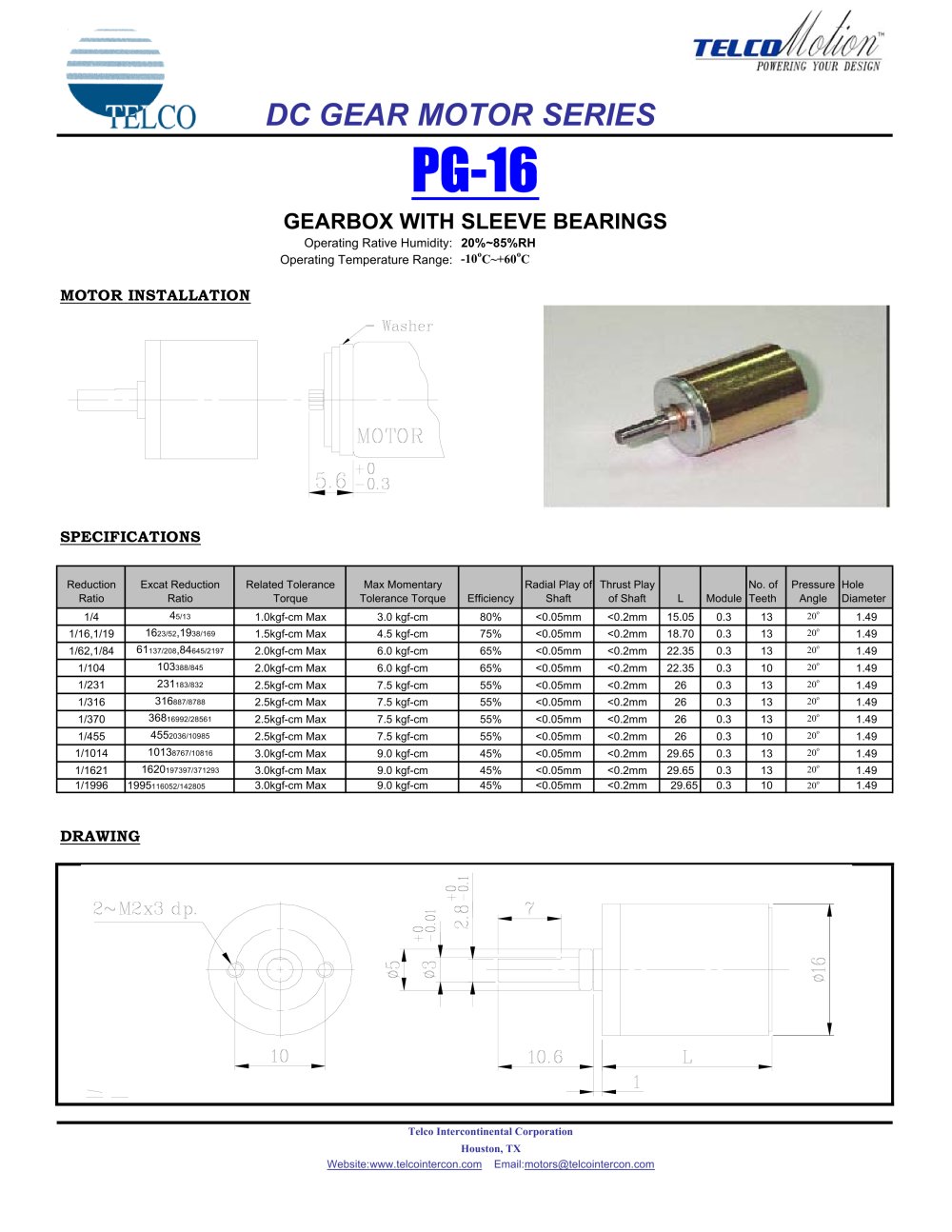

DC Gear Motor Series Overview
The document provides detailed specifications for various DC gear motor series, focusing on operating conditions, installation, and technical specifications. The motors are designed to operate within a relative humidity range of 20% to 85% and a temperature range of -10°C to +60°C.
Specifications
  • Reduction Ratios: Various reduction ratios are provided for different motor models, indicating the gear reduction levels available.
  • Torque: Each motor model specifies a related tolerance torque and a maximum momentary tolerance torque, indicating the torque capacity and limits.
  • Efficiency: Efficiency percentages vary across models, reflecting the energy conversion efficiency of the motors.
  • Shaft Play: Radial and thrust play of the shaft are specified, ensuring precision in motor operation.
  • Module and Teeth: The module, number of teeth, pressure angle, and hole diameter are detailed for each motor, providing insights into the gear design and compatibility.
Gearbox Types
The document mentions different gearbox configurations, including sleeve bearings and ball/sleeve bearings, which affect the motor's performance and application suitability.
Drawings and Contact Information
Technical drawings are included for each motor series, and contact information for Telco Intercontinental Corporation is provided for further inquiries.
