Product catalog summary

General Specifications:
The document provides detailed specifications for various models of brushless DC motors. Key parameters include the number of phases, number of poles, Hall-Effect angle, shaft run-out, shaft radial play, shaft end play, maximum radial and axial loads, winding insulation, dielectric strength, and insulation resistance.

Motor Models and Specifications:
The document lists multiple motor models with varying specifications:

DN42100-24-105 Series: Rated voltage of 24V, torque ranging from 0.0625 to 0.25 Nm, peak torque from 0.19 to 0.75 Nm, and rated speed of 4000 RPM. The rotor inertia varies from 24 to 96 Kg-m².
DN5745R-36 to DN57115S-36 Series: Rated voltage of 36V, torque ranging from 0.055 to 0.43 Nm, peak torque from 0.16 to 1.27 Nm, and rated speed of 4000 RPM. The rotor inertia ranges from 30 to 230 Kg-m².
DN5750-24-050 to DN57101-24-110 Series: Rated voltage of 24V, torque ranging from 0.56 to 1.33 Nm, and no-load speed from 3600 to 4400 RPM.
DN5752-24-058 Model: Rated voltage of 24V, torque of 0.24 Nm, peak torque of 0.55 Nm, and rated speed of 2300 RPM.
DN8658-48-110 to DN86125-48-660 Series: Rated voltage of 48V, torque ranging from 0.35 to 2.1 Nm, peak torque from 1.05 to 6.3 Nm, and rated speed of 3000 RPM. The rotor inertia ranges from 400 to 2400 Kg-m².

Mechanical and Electrical Characteristics:
Each motor model is characterized by specific mechanical and electrical properties such as torque constant, resistance, inductance, back EMF, peak current, body length, and motor weight. The document also specifies the maximum radial and axial loads, and the insulation class (Class B) for all models.

Outline Drawings:
The document includes outline drawings for each motor model, providing dimensional details necessary for installation and integration into systems.

Contact Information:
The document provides contact details for Telco Intercontinental, including address, phone, fax, and email for further inquiries.

Catalog excerpts

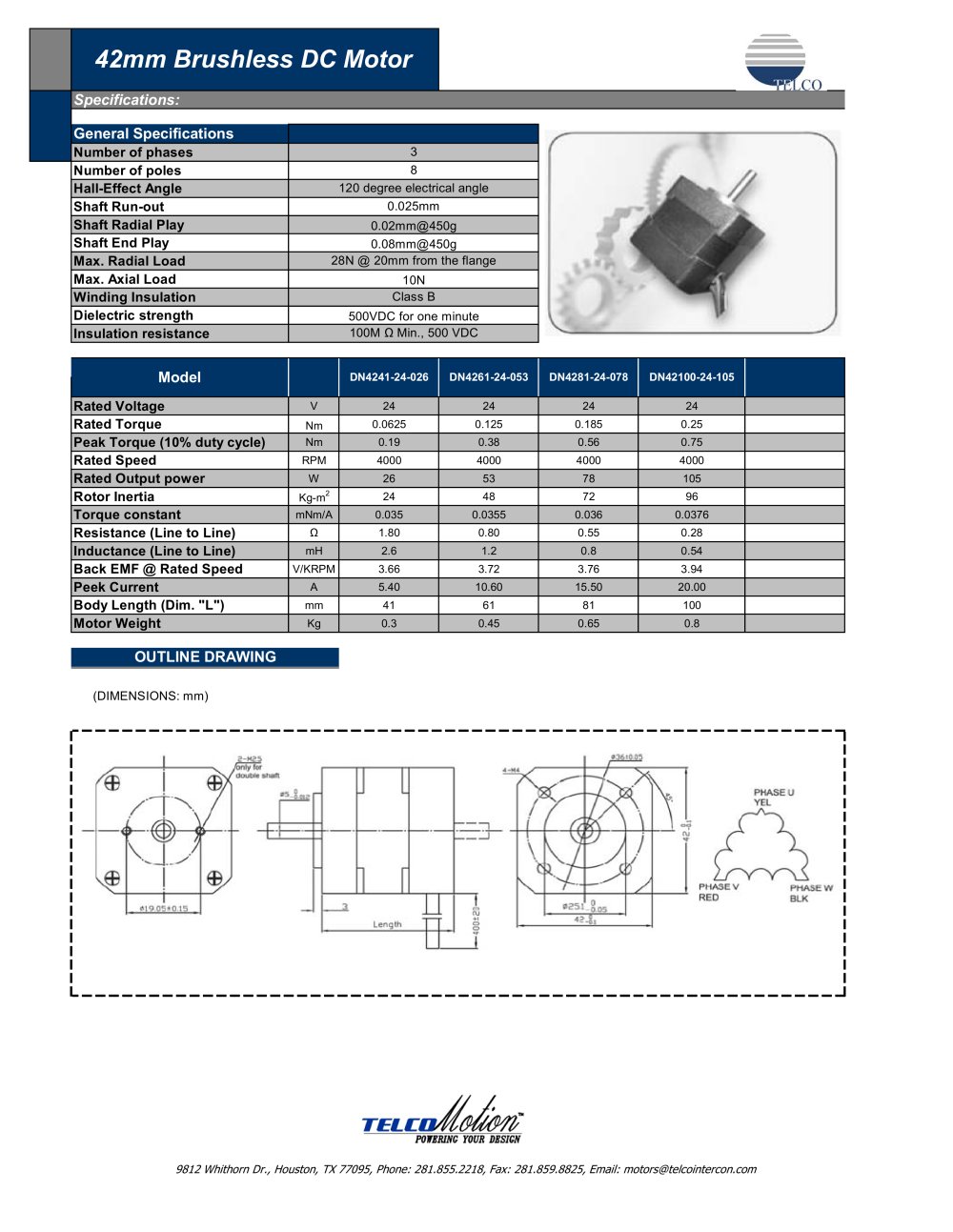

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:6.00pt "Tahoma", sans-serif; } .font5 { font:8.00pt "Tahoma", sans-serif; } Spcifications:_ General Spcifications Number of phases 3 Number of poles 8 Hall-Effect Angle 120 degree electrical angle Shaft Run-out 0.025mm Shaft Radial Play 0.02mm@450g Shaft End Play 0.08mm@450g Max. Radial Load 28N @ 20mm from the flange Max. Axial Load 10N Winding Insulation Class B Dielectric strength 500VDC for one minute Insulation resistance 100M Q Min., 500 VDC Model DN4241-24-026 DN4261-24-053 DN4281-24-078 DN42100-24-105 Rated Voltage V 24 24 24 24 Rated Torque Nm 0.0625 0.125 0.185 0.25 Peak Torque (10% duty cycle) Nm 0.19 0.38 0.56 0.75 Rated Speed RPM 4000 4000 4000 4000 Rated Output power W 26 53 78 105 Rotor Inertia Kg-m2 24 48 72 96 Torque constant mNm/A 0.035 0.0355 0.036 0.0376 Resistance (Line to Line) Q 1.80 0.80 0.55 0.28 Inductance (Line to Line) mH 2.6 1.2 0.8 0.54 Back EMF @ Rated Speed V/KRPM 3.66 3.72 3.76 3.94 Peek Current A 5.40 10.60 15.50 20.00 Body Length (Dim. "L") mm 41 61 81 100 Motor Weight Kg 0.3 0.45 0.65 0.8 OUTLINE DRAWING (DIMENSIONS: mm) P0WSRING Y0VR DESIGN 9812 Whithom Dr, Houston, TX77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected]
