Hybrid Stepping Motor Catalog

Hybrid Stepping Motor Catalog

Product catalog summary

Overview: This document provides detailed specifications for various series of stepping motors manufactured by Telco Intercontinental Corp. The motors are categorized based on frame size and NEMA size, with specifications including step angle, leads, holding torque, voltage, current, resistance, inductance, rotor inertia, and weight.

Specifications:

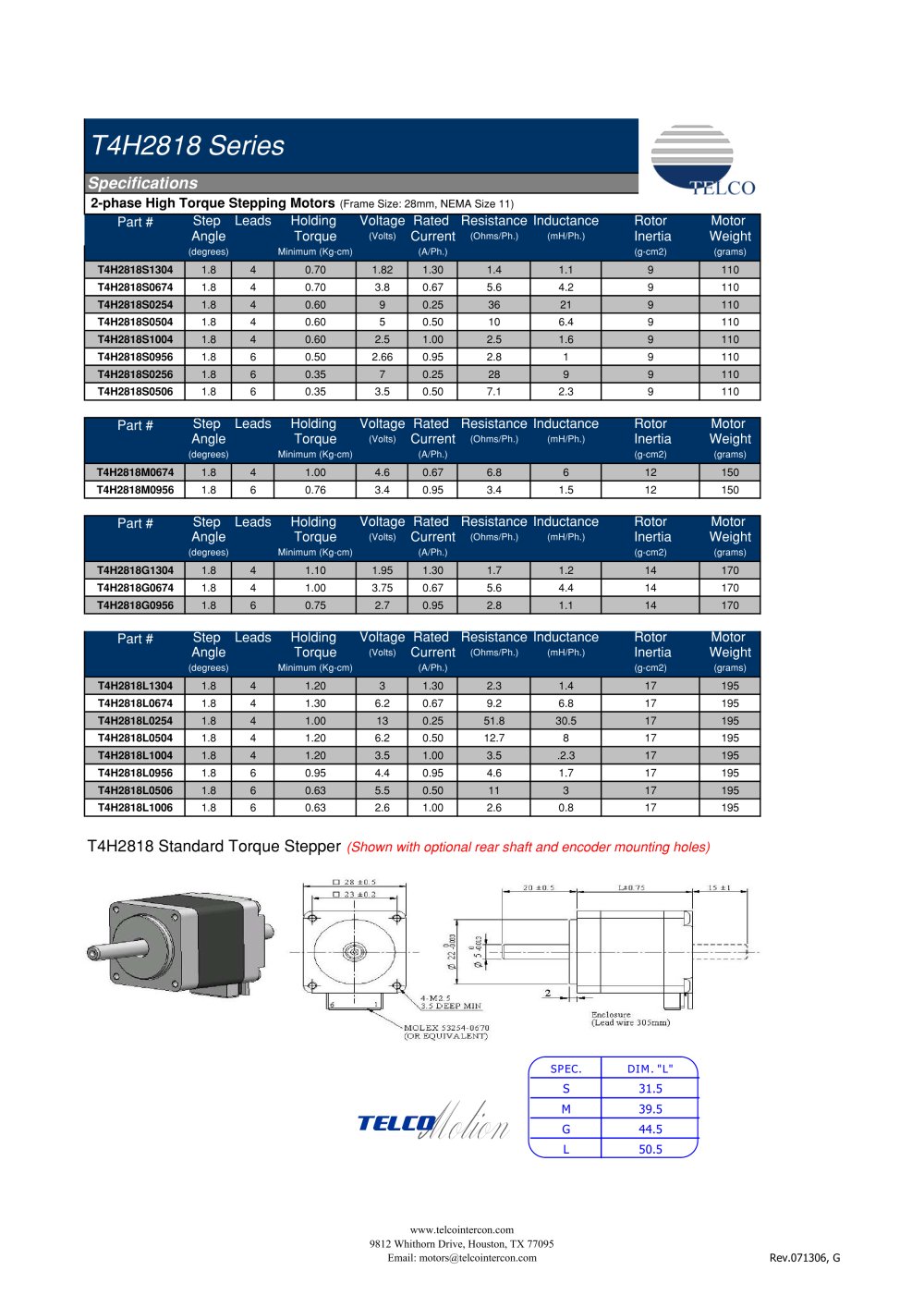

T4H2818 Series: 2-phase high torque stepping motors with a frame size of 28mm (NEMA Size 11). Key specifications include a step angle of 1.8 degrees, holding torque ranging from 0.35 to 1.30 Kg-cm, and weights around 110 grams.
T4H3518 Series: 2-phase high torque stepping motors with a frame size of 35mm (NEMA Size 14). These motors have a step angle of 1.8 degrees, holding torque from 0.5 to 1.4 Kg-cm, and weights around 140 to 180 grams.
T4H3918 Series: 2-phase high torque stepping motors with a frame size of 39mm (NEMA Size 15). Specifications include a step angle of 1.8 degrees, holding torque from 0.47 to 1.65 Kg-cm, and weights around 120 to 200 grams.
T4H4018 Series: 2-phase standard torque stepping motors with a frame size of 40mm (NEMA Size 16). These motors feature a step angle of 1.8 degrees, holding torque from 0.6 to 2.2 Kg-cm, and weights around 125 to 260 grams.
T4H5618 Series: 2-phase standard torque stepping motors with a frame size of 56mm (NEMA Size 23). They have a step angle of 1.8 degrees, holding torque from 2.5 to 12.0 Kg-cm, and weights around 340 to 1400 grams.
T4H8618 Series: 2-phase standard torque stepping motors with a frame size of 86mm (NEMA Size 34). These motors have a step angle of 1.8 degrees, holding torque from 13 to 26 Kg-cm, and weights around 1400 to 2600 grams.
T4T6018 Series: 4-phase high torque stepping motors with a frame size of 60mm (NEMA Size 23). Specifications include a step angle of 1.8 degrees, holding torque from 7.8 to 31.0 Kg-cm, and weights around 600 to 1400 grams.
T4H11018 Series: 4-phase high torque stepping motors with a frame size of 110mm (NEMA Size 42). These motors have a step angle of 1.8/0.9 degrees, holding torque from 45.90 to 105.06 Kg-cm, and weights around 3800 to 11500 grams.
T5H11018 Series: 5-phase high torque stepping motors with a frame size of 110mm (NEMA Size 42). They feature a step angle of 0.36/0.72 degrees, holding torque from 69.36 to 105.06 Kg-cm, and weights around 7500 to 11500 grams.

Key Parameters: The document highlights critical parameters such as holding voltage, rated resistance, inductance, rotor inertia, and motor weight, which are essential for selecting the appropriate motor for specific applications.

Contact Information: Telco Intercontinental Corp., 9812 Whithorn Drive, Houston, TX 77095. Phone: (281) 855-2218, Fax: (281) 859-8825, Email: [email protected]

Catalog excerpts

www.telcointercon.com9812 Whithorn Drive, Houston, TX 77095Email: [email protected] Rev.071306, G >

Open the catalog to page 1

S p eci f ications > 2-phase High Torque Stepping Motors (Frame Size: 39mm, NEMA Size 15) 9812 Whithorn Dr., Houston, TX 77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected] Rev. 121103 size="-3">

Open the catalog to page 3

(Frame Size: 40mm, NEMA Size 16) >

Open the catalog to page 4

(Frame Size: 56mm, NEMA Size 23) >

Open the catalog to page 5

Specifications > 4-phase Hi Torque Stepping Motors (Frame Size: 60mm, NEMA Size 23) T4T6018 Hi g h Torque Steppe r > (Shown with optional rear shaft and encoder mounting holes) Telco > 9812 Whithorn Dr., Houston, TX 77095, Phone: 281.855.2218, Fax: 281.859.8825, Email: [email protected] size="-3">

Open the catalog to page 7

4-phase High Torque Stepping Motors > (Frame Size: 110mm, NEMA Size 42) Part # S tep LeadsHold i ng Voltag e R ated R es i stanceInductanc e R otorAngleTorque > (Volts) C urren t > (Ohms/Ph.)(mH/Ph.) Inert i a > (degrees)Minimum (Kg-cm)(A/Ph.)(g-cm2) T4H11018S60081.8/0.9445.9080-2006.000.1823800 Part #Step LeadsHolding Voltag e Rated ResistanceInductanc e RotorAngleTorque > (Volts) Curren t > (Ohms/Ph.)(mH/Ph.) Inertia > (degrees)Minimum (Kg-cm)(A/Ph.)(g-cm2) T4H11018M60081.8 /0.9872.4280-2006.000.222.17500 Part #Step LeadsHolding Voltag e Rated ResistanceInductanc e RotorAngleTorque > (Volts)...

Open the catalog to page 8

5-phase High Torque Stepping Motors > (Frame Size: 110mm, NEMA Size 42) Part # S tep Hold i ng VoltageRated Res i stanceInductanc e RotorAngleTorque > (Volts) C urrent > (Ohms/Ph.)(mH/Ph.) Inert i a > (degrees)Minimum (Kg-cm)(A/Ph.)(g-cm2) T5H110072M50080.36 / 0.7269.361305.000.31.97500T5H110072M30080.36 / 0.7269.361303 3.000.55.37500 Part #Step Holding VoltageRated ResistanceInductanc e RotorAngleTorque > (Volts) Current > (Ohms/Ph.)(mH/Ph.) Inertia > (degrees)Minimum (Kg-cm)(A/Ph.)(g-cm2) T5H110072L50080.36 / 0.72105.061305.000.373.411500 T5H110072L30080.36 / 0.72105.061303.000.629.511500 SPEC....

Open the catalog to page 9
