55000 General Solenoid Range, 2 Way Pilot Assisted, Normally Closed.

1 / 2 PagesView full catalog

55000 General Solenoid Range, 2 Way Pilot Assisted, Normally Closed.

Product catalog summary

Specifications:

Suitable for use with air, water, oil, and steam.
Coils are compatible with 230V A.C. and other voltages.
Supplied with a DIN plug connector.
In-line body connections with a range of BSP connection sizes.
Available in 10, 14, and 20mm seat sizes.

Application:

The Teddington 55000 Series General Use Solenoid Valves are designed for applications such as heating systems, pumping systems, and process control. They are widely used across various industries and larger domestic installations.

Physical Description:

The 55000 Series valves are 2-way in-line, normally closed, pilot-assisted solenoid valves with brass bodies. They offer versatility in wiring with a DIN plug or amp tags, allowing quick and independent changes of the valve and loom.

Operation:

These valves are electrically operated shut-off valves that use a magnetic field to convert electrical energy into mechanical movement, providing flexibility in design and layout.

Outline Details:

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	L (mm)
55001	71	85	38	35	80	26	50
55002	71	85	38	35	80	26	50
55003	82	96	45	35	80	31	58
55004	82	96	45	35	80	31	58
55005	96	117	65	35	80	41	82
55006	96	117	65	35	80	41	82

Technical Details:

Connection G (BSP): 3/8", 1/2", 3/4", 1".
Flow rates: 2, 3.6, 8.3, 11 m³/h.
Valve body: Brass.
Operating method: Pilot assisted.
Media: Air, water, oil (<50°C), steam.
Media temperature: 0-120°C.
Pressure range: 0.3-10 bar.
Voltage options: 24Vac, 110Vac, 230Vac, 12Vdc, 24Vdc.

Catalog excerpts

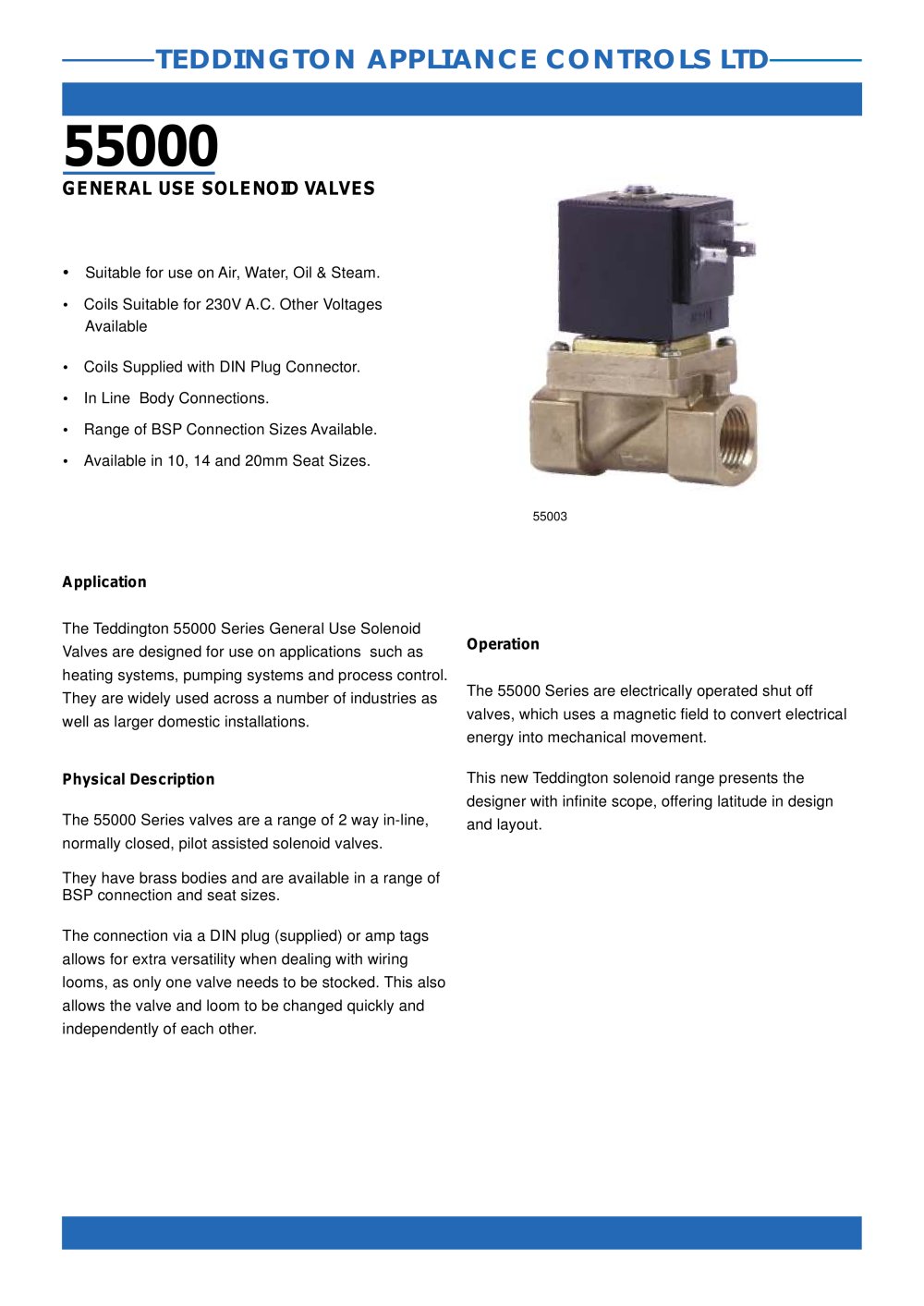

55000 General Solenoid Range, 2 Way Pilot Assisted, Normally Closed.-1

Suitable for use on Air, Water, Oil & Steam. Coils Suitable for 230V A.C. Other Voltages Available Coils Supplied with DIN Plug Connector. Operation In Line Body Connections. The 55000 Series are electrically operated shut offvalves, which uses a magnetic field to convert electrical energy into mechanical movement.This new Teddington solenoid range presents the designer with infinite scope, offering latitude in design and layout. Range of BSP Connection Sizes Available. Available in 10, 14 and 20mm Seat Sizes. > 55003 Application TheTeddington 55000 Series General Use Solenoid Valves are designed for use on applications such as heating systems, pumping systems and process control. They are widely used across a number of industries as well as larger domestic installations. Physical Description The 55000 Series valves are a range of 2 way in-line, normally closed, pilot assisted solenoid valves. They have brass bodies and are available in a range of BSP connection and seat sizes.The connection via a DIN plug (supplied) or amp tags allows for extra versatility when dealing with wiring looms, as only one valve needs to be stocked. This also allows the valve and loom to be changed quickly and independently of each other. >

Open the catalog to page 1
