51000 Solenoid Valve

Product catalog summary

Overview
The Teddington 51000 Series Gas Solenoid Valves are designed for use with natural gas and LPG in appliances such as cookers, hob units, grills, and hotplates. They function as on/off controls or safety shutoffs, suitable for electronic cooking and larger installations.

Specifications

Flow Capacity: Minimum 280l/hr air at 1mb pressure drop with the right connection.
Coil Voltage: 230V A.C. or 24V A.C. with 6Va.
Ambient Temperature Range: 0 - 80°C.
Operating Gas Pressure: 0 – 50mbar.
Mounting Attitude: Any.
Weight: Approximately 113g for the aluminium right angle connection version.

Standards and Compliance

Conforms to BS EN 161:1991 (subject to approval).
Minimum life expectancy of 1,000,000 operations as per Class 2 BS 5963.

Design and Features

Compact solenoid coil with a lightweight aluminium body.
Versatile connection options via DIN plug or amp tags.
Allows for quick and independent changes of valve and wiring loom.

Ordering Information
To order, quote part number 51001 FM 1790.

Catalog excerpts

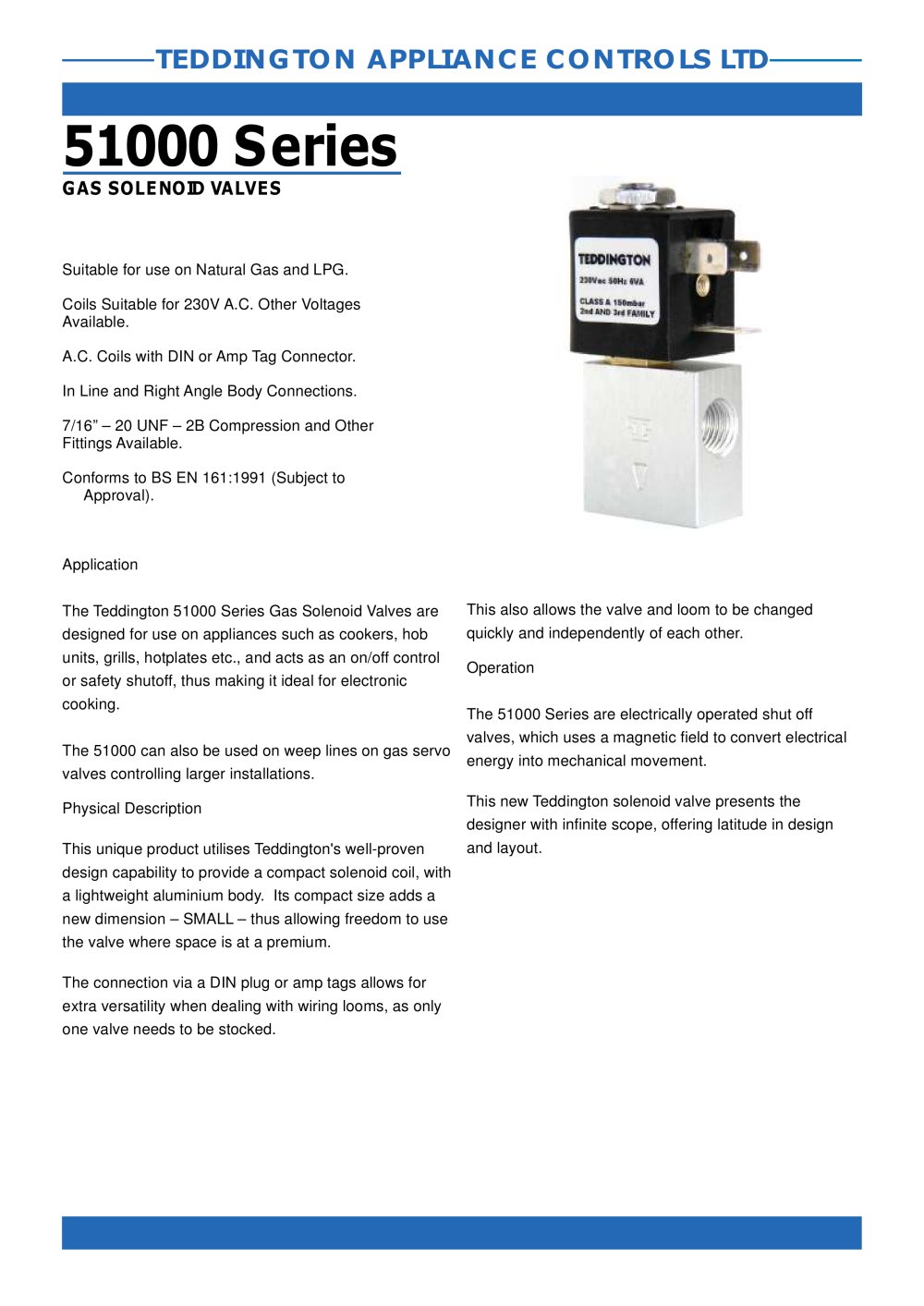

Flow CapacityAt 1mb pressure drop Minimum 280l/hr air with right connection. Coil230V a.c. or 24V a.c. 6Va.AmbientTemp Range0 - 80ְC. Mounting AttitudeAny. Operating Gas Pressure0 50mbar. StandardsConforms to BS EN 161: 1991 (Subject to Approval). Minimum Life (Class 2 BS 5963) 1,000,000 operations minimum. Cable Loom to suit application.DIN or Amp tag connections, (DIN 43650B type plug). Weight (Approx.)113g (Aluminium right angle connection version). > Part of the Holmbush St. Austell Cornwall United Kingdom PL23 3HGTel: +44 (0) 1726 74400 Fax: +44 (0) 1726 67953www.tedcon.com [email protected]...

Open the catalog to page 2
