Temperature Humidity data logger

Temperature Humidity data logger
1 / 1 PageView full catalog

Temperature Humidity data logger

Product catalog summary
Overview:
The TR-31 and TR-32 are temperature and humidity data loggers designed for monitoring applications such as refrigerators, cold-chain transportation, and container transportation. They feature a compact design and user-friendly interface.
Specifications:
  • Measurement Range: TR-31 measures temperature from -30 to 85 °C. TR-32 measures both temperature (-30 to 85 °C) and humidity (0 to 100% RH).
  • Accuracy: Temperature accuracy is ±0.5 °C for both models. Humidity accuracy for TR-32 is ±3% RH.
  • Resolution: Temperature resolution is 0.1 °C (0.1 °F), and humidity resolution for TR-32 is 0.1% RH.
  • Data Storage: Both models can store up to 43,000 readings.
  • IP Rating: IP67, indicating high resistance to dust and water.
  • Logging Rate: Adjustable from 2 seconds to 24 hours.
  • Battery: Powered by a 1/2 AA, 3.6V Lithium Battery with a typical life of 1 year.
  • Dimensions and Weight: 125 x 28 x 22 mm, weighing 60g.
  • Operating Conditions: Temperature: 0 to 50 °C, Humidity: 0 to 95% RH.
Features:
  • USB connectivity for easy setup and data transfer.
  • Low energy consumption design.
  • LED alarm settings for high/low thresholds.
  • Displays maximum, minimum, and current readings.
  • Switchable temperature units (°C/°F).
  • Dew point calculation available via software for TR-32.
  • Low battery indication.
  • Includes an acrylic holder for wall installation.
Accessories:
  • Analysis Software CD
  • USB cable
  • User Manual
  • Battery
  • Fixed bracket and waterproof transparent cover
See more

Catalog excerpts

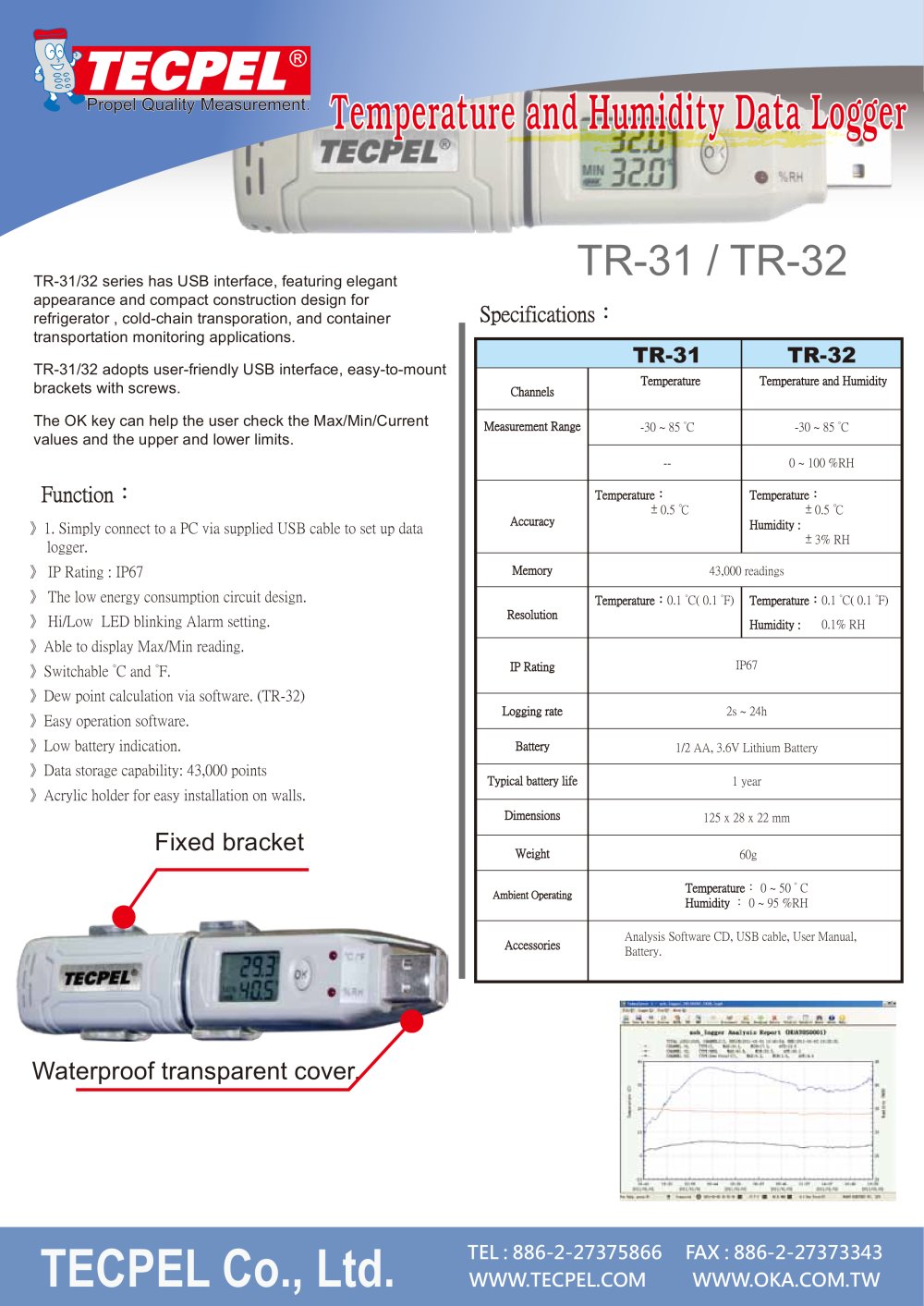

Temperature Humidity data logger-1

Temprature and Humidity Data Logger TECPEL KM] l0 "3° TR-31/32 sries has USB interface, featuring elegant appearance and compact construction design for refrigerator , cold-chain transporation, and container transportation monitoring applications. TR-31/32 adopts user-friendly USB interface, easy-to-mount brackets with screws. The OK key can help the user check the Max/Min/Current values and the upper and lower limits. TR-31 / TR-32 Specif驯cations: TR-31 TR-32 Channels Temperature Temperature and Humidity Measurement Range -30 ~ 85 °C -30 ~ 85 °C -- 0 ~ 100 %RH Accuracy Temperature^ ± 0.5 C Temperature: ± 0.5 C Humidity : ± 3% RH Memory 43,000 readings Resolution Temperature : 0.1 °C( 0.1 °F) Temperature : 0.1 °C( 0.1 °F) Humidity : 0.1% RH IP Rating IP67 Logging rate 2s ~ 24h Battery 1/2 AA, 3.6V Lithium Battery Typical battery life 1 year Dimensions 125 x 28 x 22 mm Weight 60g Ambient Operating Temperature : 0 ~ 50 ° C Humidity : 0 ~ 95 %RH Accessories Analysis Software CD, USB cable, User Manual, Battery. Function: Simply connect to a PC via supplied USB cable to set up data logger. ) IP Rating : IP67 ) The low energy consumption circuit design. ) Hi/Low LED blinking Alarm setting. )Able to display Max/Min reading. )Switchable °C and °F. )Dew point calculation via software. (TR-32) )Easy operation software. )Low battery indication. )Data storage capability: 43,000 points )Acrylic holder for easy installation on walls. Fixed bracket Waterproof transparent cover. TEL : 886-2-27375866 FAX : 886-2-27373343 WWW.TECPEL.COM WWW.OKA.COM.TW TECPEL Co., Ltd.

 Open the catalog to page 1
