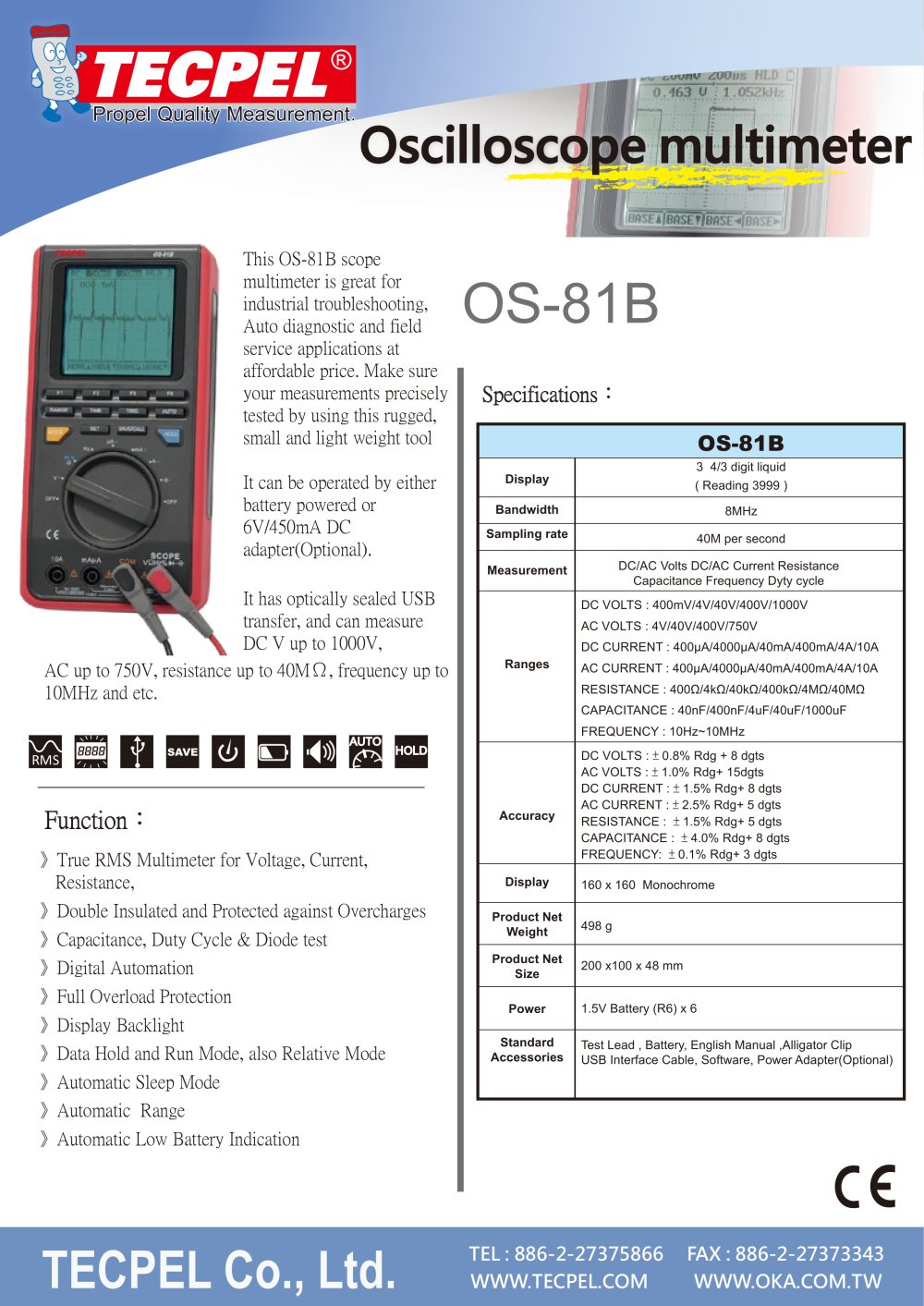

TECPEL Handheld Oscilloscope Multimeter OS-81B - 1

OS-81B This OS-81B scope multimeter is great for industrial troubleshooting, Auto diagnostic and field service applications at affordable price. Make sure your measurements precisely tested by using this rugged, small and light weight tool It can be operated by either battery powered or 6V/450mA DC adapter(Optional). It has optically sealed USB transfer, and can measure DC V up to 1000V, AC up to 750V, resistance up to 40MÙ, frequency up to 10MHz and etc. SpecificationsF FunctionF Display Bandwidth Sampling rate Measurement Ranges Accuracy Display Product Net Weight Product Net Size Power Standard Accessories OS-81B 3 4/3 digit liquid ( Reading 3999 ) 8MHz 40M per second DC/AC Volts ADC/AC Current AResistance Capacitance AFrequency ADyty cycle DC VOLTS : 400mV/4V/40V/400V/1000V AC VOLTS : 4V/40V/400V/750V DC CURRENT : 400ìA/4000ìA/40mA/400mA/4A/10A AC CURRENT : 400ìA/4000ìA/40mA/400mA/4A/10A RESISTANCE : 400Ù/4kÙ/40kÙ/400kÙ/4MÙ/40MÙ CAPACITANCE : 40nF/400nF/4uF/40uF/1000uF FREQUENCY : 10Hz~10MHz DC VOLTS : ± 0.8% Rdg + 8 dgts AC VOLTS : ± 1.0% Rdg+ 15dgts DC CURRENT : ± 1.5% Rdg+ 8 dgts AC CURRENT : ± 2.5% Rdg+ 5 dgts RESISTANCE : ± 1.5% Rdg+ 5 dgts CAPACITANCE : ± 4.0% Rdg+ 8 dgts FREQUENCY: ± 0.1% Rdg+ 3 dgts 160 x 160 Monochrome 498 g 200 x100 x 48 mm 1.5V Battery (R6) x 6 Test Lead , Battery, English Manual ,Alligator ClipA USB Interface Cable, Software, Power Adapter(Optional) tTrue RMS Multimeter for Voltage, Current, Resistance, tDouble Insulated and Protected against Overcharges tCapacitance, Duty Cycle & Diode test tDigital Automation tFull Overload Protection tDisplay Backlight tData Hold and Run Mode, also Relative Mode tAutomatic Sleep Mode tAutomatic Range tAutomatic Low Battery Indication TEL : 886-2-27375866 FAX : 886-2-27373343 WWW.TECPEL.COM WWW.OKA.COM.TW TECPEL Co., Ltd. Oscilloscope multimeter RMS SAVE HOLD
