TECPEL® 6000 count digital Multimeter DMM-8062


Catalog excerpts

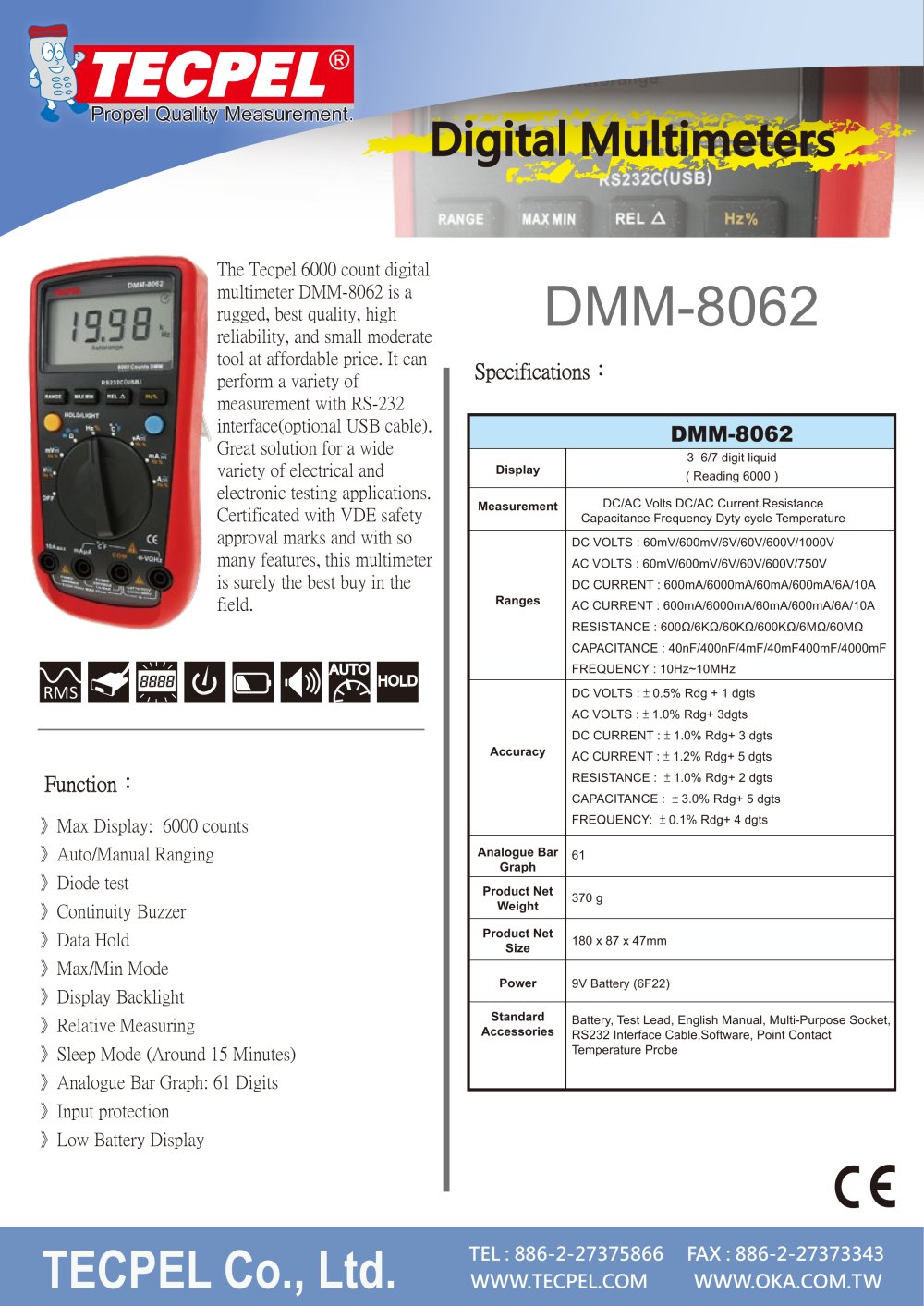

TECPEL®  6000 count digital Multimeter DMM-8062 - 1

DMM-8062 The Tecpel 6000 count digital multimeter DMM-8062 is a rugged, best quality, high reliability, and small moderate tool at affordable price. It can perform a variety of measurement with RS-232 interface(optional USB cable). Great solution for a wide variety of electrical and electronic testing applications. Certificated with VDE safety approval marks and with so many features, this multimeter is surely the best buy in the field. SpecificationsF FunctionF Display Measurement Ranges Accuracy Analogue Bar Graph Product Net Weight Product Net Size Power Standard Accessories DMM-8062 3 6/7 digit liquid ( Reading 6000 ) DC/AC Volts ADC/AC Current AResistanceA Capacitance AFrequency ADyty cycle ATemperature DC VOLTS : 60mV/600mV/6V/60V/600V/1000V AC VOLTS : 60mV/600mV/6V/60V/600V/750V DC CURRENT : 600mA/6000mA/60mA/600mA/6A/10A AC CURRENT : 600mA/6000mA/60mA/600mA/6A/10A RESISTANCE : 600Ù/6KÙ/60KÙ/600KÙ/6MÙ/60MÙ CAPACITANCE : 40nF/400nF/4mF/40mF400mF/4000mF FREQUENCY : 10Hz~10MHz DC VOLTS : ± 0.5% Rdg + 1 dgts AC VOLTS : ± 1.0% Rdg+ 3dgts DC CURRENT : ± 1.0% Rdg+ 3 dgts AC CURRENT : ± 1.2% Rdg+ 5 dgts RESISTANCE : ± 1.0% Rdg+ 2 dgts CAPACITANCE : ± 3.0% Rdg+ 5 dgts FREQUENCY: ± 0.1% Rdg+ 4 dgts 61 370 g 180 x 87 x 47mm 9V Battery (6F22) Battery, Test Lead, English Manual, Multi-Purpose Socket, RS232 Interface Cable,Software, Point Contact Temperature Probe tMax Display: 6000 counts tAuto/Manual Ranging tDiode test tContinuity Buzzer tData Hold tMax/Min Mode tDisplay Backlight tRelative Measuring tSleep Mode (Around 15 Minutes) tAnalogue Bar Graph: 61 Digits tInput protection tLow Battery Display TEL : 886-2-27375866 FAX : 886-2-27373343 WWW.TECPEL.COM WWW.OKA.COM.TW TECPEL Co., Ltd. Digital Multimeters HOLD RMS

Open the catalog to page 1
