Handheld 20MHz Oscilloscope TECPEL OS-1022

Handheld 20MHz Oscilloscope TECPEL OS-1022
1Pages

Catalog excerpts

Handheld 20MHz Oscilloscope TECPEL OS-1022 - 1

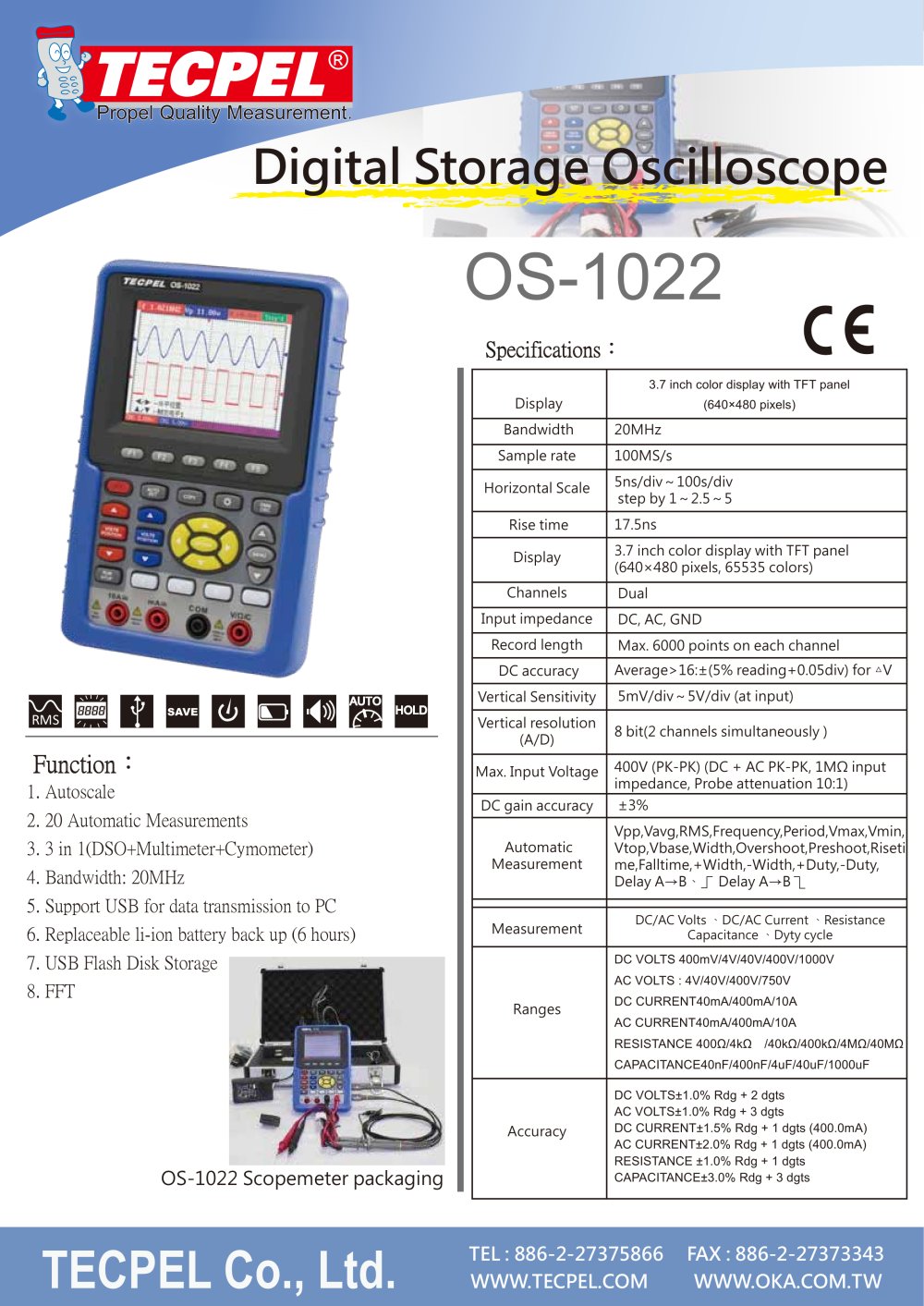

X-PPC 950 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:18.00pt "Arial", sans-serif; } .font6 { font:27.00pt "Arial", sans-serif; } .font7 { font:28.00pt "Arial", sans-serif; } .font8 { font:38.00pt "Arial", sans-serif; } .font9 { font:18.00pt "Tahoma", sans-serif; } .font10 { font:6.00pt "Times New Roman", serif; } .font11 { font:11.00pt "Times New Roman", serif; } .font12 { font:13.00pt "Times New Roman", serif; } .font13 { font:15.00pt "Times New Roman", serif; } .font14 { font:18.00pt "Times New Roman", serif; } Digital Storage Oscilloscope OS-1022 C Sp)cifications: Display 3.7 inch color display with TFT panel (640x480 pixels) Bandwidth 20MHz Sample rate 100MS/s Horizontal Scale 5ns/div~100s/div step by 1~2.5~5 Rise time <17.5ns Display 3.7 inch color display with TFT panel (640x480 pixels, 65535 colors) Channels Dual Input impedance DC, AC, GND Record length Max. 6000 points on each channel DC accuracy Average>16:±(5% reading+0.05div) for *V Vertical Sensitivity 5mV/div~5V/div (at input) Vertical resolution (A/D) 8 bit(2 channels simultaneously ) Max. Input Voltage 400V (PK-PK) (DC + AC PK-PK, 1MQ input impedance, Probe attenuation 10:1) DC gain accuracy ±3% Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin, Vtop,Vbase,Width,Overshoot,Preshoot,Riseti me,Falltime,+Width,-Width,+Duty,-Duty, Delay A^BJ Delay A^B \ Measurement DC/AC Volts DC/AC Current Resistance Capacitance Dyty cycle Ranges DC VOLTS: 400mV/4V/40V/400V/1000V AC VOLTS : 4V/40V/400V/750V DC CURRENT : 40mA/400mA/10A AC CURRENT : 40mA/400mA/10A RESISTANCE : 400n/4kn/40kn/400kn/4MO/40Mn CAPACITANCE : 40nF/400nF/4uF/40uF/1000uF Accuracy DC VOLTS : ±1.0% Rdg + 2 dgts AC VOLTS : ±1.0% Rdg + 3 dgts DC CURRENT : ±1.5% Rdg + 1 dgts (400.0mA) AC CURRENT : ±2.0% Rdg + 1 dgts (400.0mA) RESISTANCE : ±1.0% Rdg + 1 dgts CAPACITANCE : ±3.0% Rdg + 3 dgts Id|4)) kmsbPH HOLD SAVE Function: 1. Autoscale 2. 20 Automatic Measurements 3. 3 in 1(DSO+Multimeter+Cymometer) 4. Bandwidth: 20MHz 5. Support USB for data transmission to PC 6. Replaceable li-ion battery back up (6 hours) 7. USB Flash Disk Storage 8. FFT OS-1022 Scopemeter packaging TEL : 886-2-27375866 FAX : 886-2-27373343 WWW.TECPEL.COMWWW.OKA.COM.TW TECPEL Co., Ltd.
