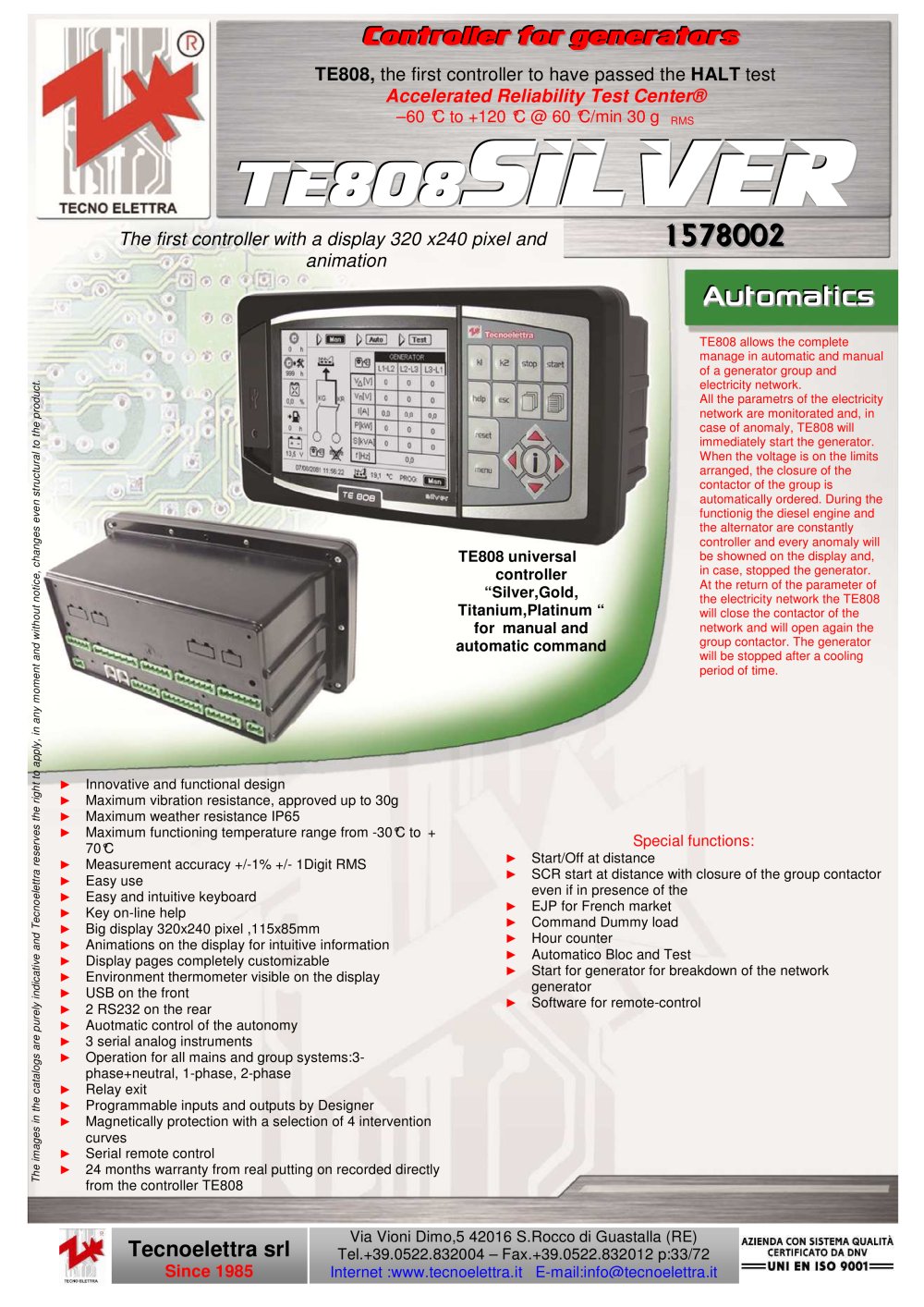

TECNOELETTRA TE808 CONTROLLER 2011

Product catalog summary

Overview: The TE808 series by Tecnoelettra is a universal controller for managing generator groups and electricity networks both automatically and manually. It features synchronization capabilities, innovative design, and advanced functionality for seamless operation.

Specifications:

Display: 320x240 pixel with customizable pages and animations.
Protection: IP65, vibration resistance up to 30g.
Temperature Range: Operating from -30°C to +70°C, storage from -40°C to +80°C.
Voltage Range: Vdc 8-35, Vac 50-500.
Dimensions: 138x257x110 mm, Weight: 1.3 kg.
Connectivity: USB and RS232 ports.
Compliance: EN61010.
Warranty: 24 months from installation.

Key Features:

Automatic and manual control of generator and network systems.
Remote control capabilities and programmable inputs/outputs.
Special functions include remote start/stop, dummy load command, and automatic block and test.
Synchronization for multiple generators and networks.
Self-learning function for the Platinum version.

Alarms and Safety:

Comprehensive alarm system for conditions like low fuel, high engine temperature, and generator overload.
Includes emergency stop and maintenance alerts.

Technical Data:

Includes a battery-powered calendar and memory flash with 128 events.
System Data Recorder (SDR) for unit recording and data transmission.

Additional Information:

Equipped with a keyboard for manual operations and an intuitive interface with online help.

Conclusion: The TE808 series controllers are robust and versatile, designed for efficient management of generator systems with advanced monitoring and control features.
