TECNOELETTRA PANELS SERIES ATS 2011

Product catalog summary

Overview: The document provides technical specifications and operational details for Tecnoelettra's ATS-E and ATS-I series panels, designed for mains/generator transfer switching applications. These panels are equipped with electronic controllers to manage electrical parameters and facilitate automatic or manual generator start/stop operations.

Specifications:

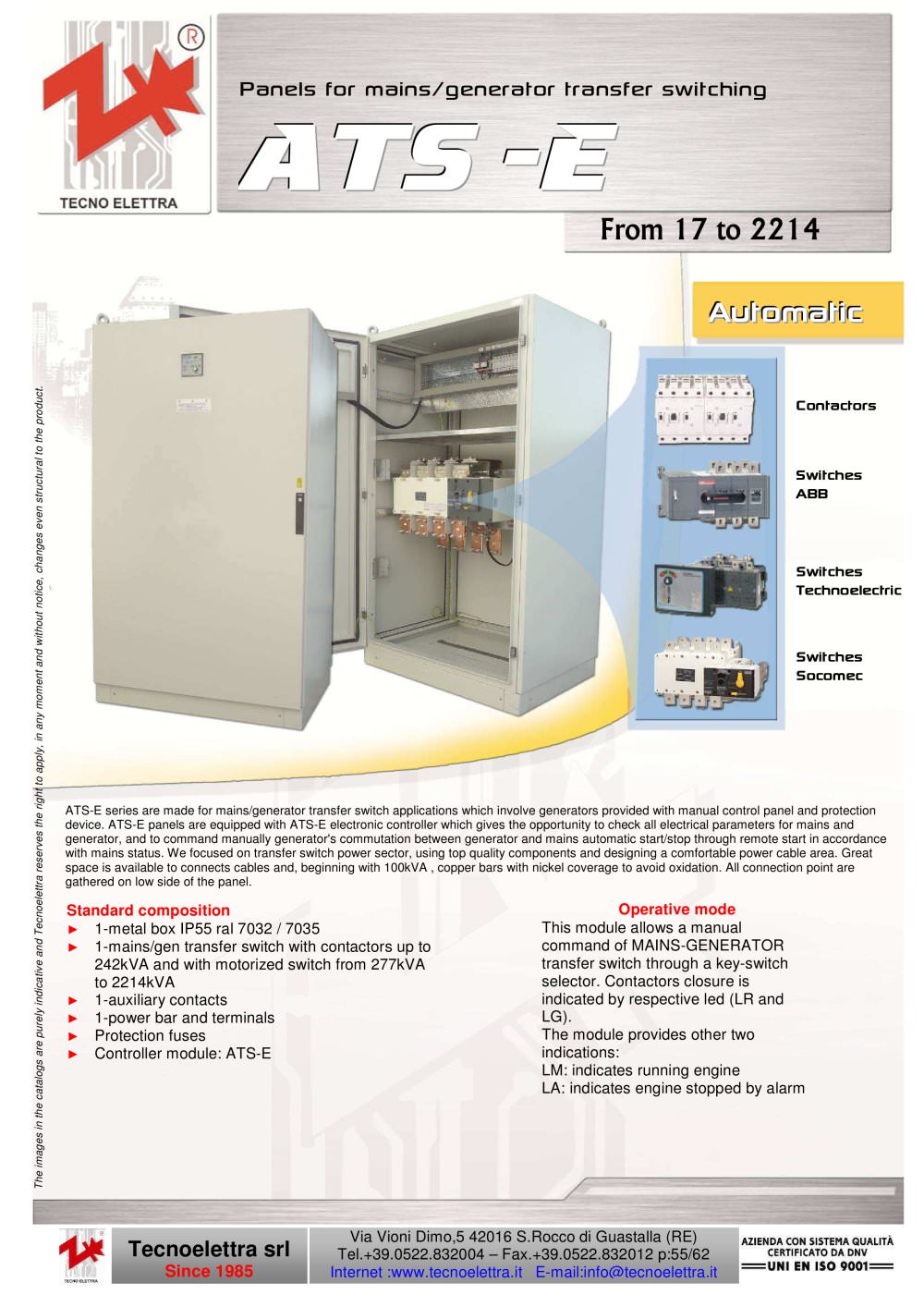

ATS-E Series: Suitable for applications from 17 to 2214 kVA. Includes a metal box (IP55), mains/gen transfer switch, auxiliary contacts, power bar, terminals, protection fuses, and an ATS-E controller.
ATS-I Series: Similar range and components as ATS-E, with an ATS-I controller for both manual and automatic operation modes.

Operational Modes:

ATS-E: Manual control via key-switch selector, with LED indicators for contactor status, engine running, and engine alarm.
ATS-I: Supports both manual and automatic modes. Automatic mode includes mains monitoring and generator start/stop based on mains status, with a display showing voltage and other parameters.

Components and Options:

Switches available from ABB, Technoelectric, and Socomec.
Various configurations with contactors and switches, each with specific kVA, kW, dimensions, and codes.

Controller Features:

ATS-E Controller: IP20 protection, LED indicators, and inputs for mains and generator status.
ATS-I Controller: IP65 protection, remote start/stop output, three-phase control, multiple alarms, and a backlit display.

Standards and Compliance: Both series comply with EN60439-1 standards.
