TECNOELETTRA FIREFIGHT CONTROLLER UNI12845 2011
1 / 6 PagesView full catalog
TECNOELETTRA FIREFIGHT CONTROLLER UNI12845 2011
Product catalog summary
Overview: The document provides technical specifications and functionalities of the TE808VVF and TE2010VVF controllers used for the automatic and manual control of firefighting electropumps, adhering to the UNI12845 normative. These controllers offer various starting methods and are equipped with advanced features for monitoring and control.

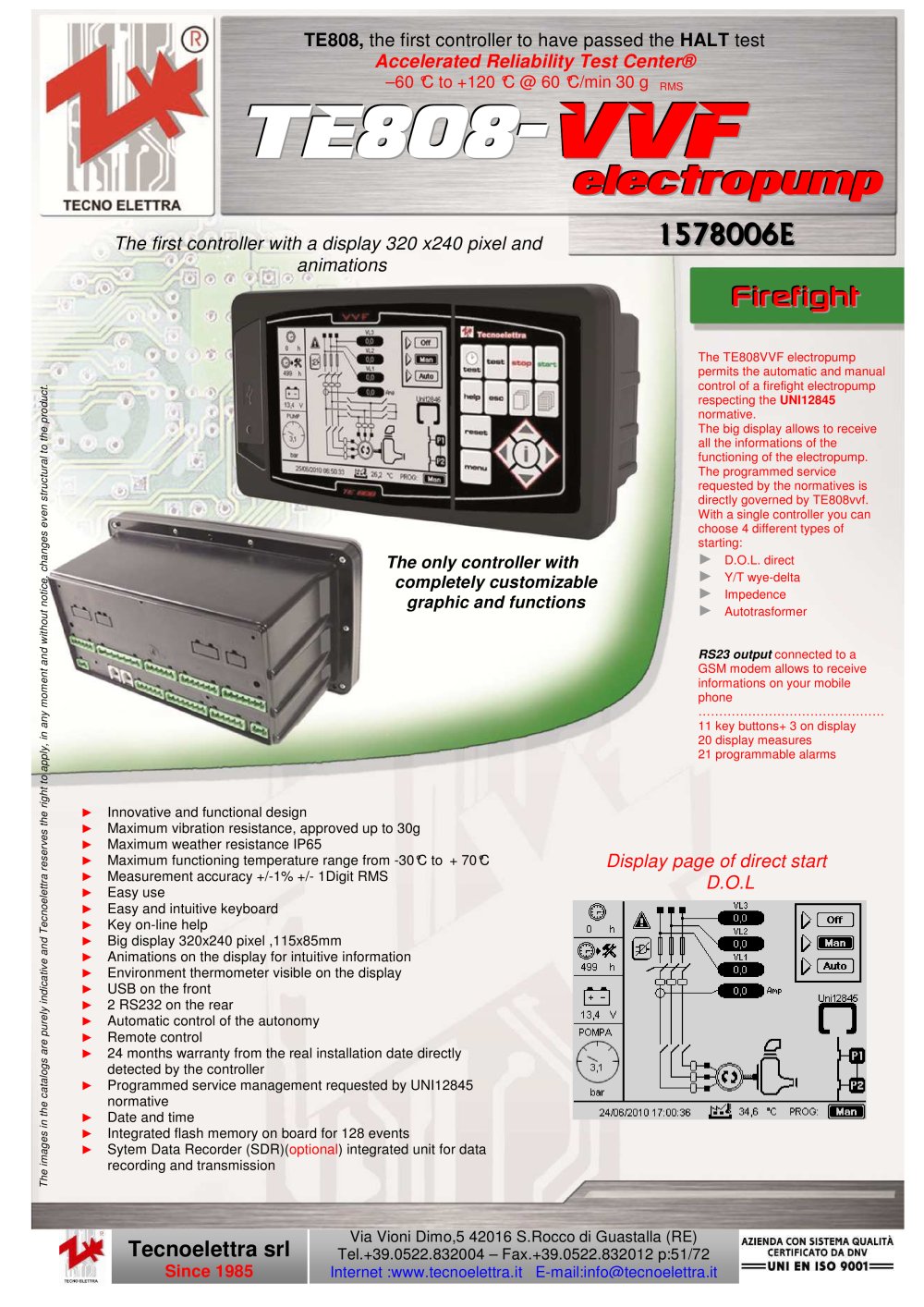

TE808VVF Electropump Controller:
- Supports four starting methods: D.O.L. direct, Y/T wye-delta, Impedance, and Autotransformer.
- Features a large 320x240 pixel display with animations for intuitive operation.
- Includes RS232 output for GSM modem connectivity, allowing remote monitoring via mobile phone.
- Offers 21 programmable alarms and 20 display measures for comprehensive monitoring.
- Designed for maximum vibration resistance (up to 30g) and weather resistance (IP65).
- Operates within a temperature range of -30°C to +70°C.
- Includes USB and RS232 ports for connectivity and data recording.
- Comes with a 24-month warranty from the installation date.
TE2010VVF Electropump Controller:
- Also supports four starting methods similar to the TE808VVF.
- Equipped with RS232 and RS485 outputs for remote control and monitoring.
- Features a compact design with a simple keyboard and clear, backlit display.
- Provides 23 display measures and 17 alarms for detailed monitoring.
- Includes a programmable automatic weekly test and event logging capabilities.
- Supports multiple languages and offers a 2-year warranty.
Technical Specifications:
- Protection: IP64 for both controllers.
- Operating temperature range: -20°C to +60°C.
- Storage temperature range: -30°C to +80°C.
- Voltage range: 9-33 Vdc and 50-620 Vac.
- Frequency range: 45-65 Hz.
- Compliance with various international standards including IEC/EN 61010-1 and UL 508.
Additional Features:
- Both controllers include a comprehensive list of alarms for various operational faults and conditions.
- TE808VVF includes advanced features like System Data Recorder (SDR) for data recording and transmission.
- TE2010VVF offers special functions such as three-phase control and programmable pressure sensor settings.
