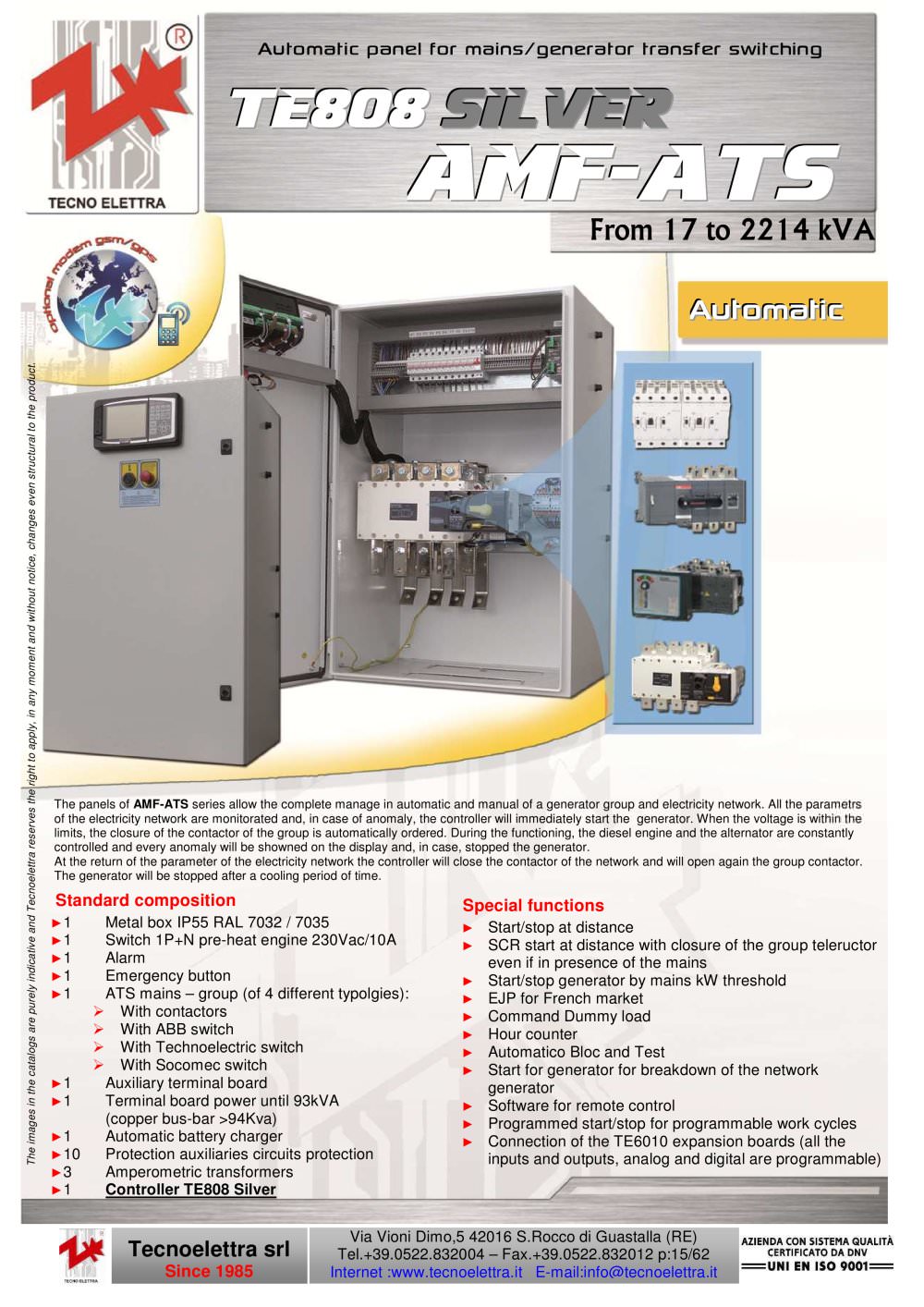

Overview: The document details the technical specifications and functionalities of Tecnoelettra's AMF-ATS and TEM series panels, designed for the management of generator groups and electricity networks. These panels ensure seamless power transfer by monitoring network parameters and automatically starting generators during anomalies.

Specifications: The panels are available in configurations with power capacities from 17 to 2214 kVA, featuring a metal box with IP55 protection, pre-heat engine switch, alarm, emergency button, and various ATS mains-group switches. They include an automatic battery charger, protection circuits, amperometric transformers, and a TE808 controller.

Key Features: The panels support remote start/stop, SCR start at distance, generator start/stop by mains kW threshold, and programmable work cycles. They are equipped with software for remote control and can connect to TE6010 expansion boards for additional inputs and outputs.

Electrical and Engine Measurements: The panels measure electrical parameters such as Vac, KW, kVA, Cos.Fi, Hz, Vdc, and room temperature. Engine instruments include fuel level, engine temperature, and oil pressure.

Controller TE808: Available in Silver, Gold, and Titanium versions, the TE808 controller features a display, function keys, programmable alarms, and supports multiple languages. It includes RS232 outputs with Modbus RTU protocol, a USB port for programming, and GSM-GPS communication support. It has passed the HALT test for reliability under extreme conditions.

Compliance and Warranty: The panels comply with EN60439-1 standards and come with a two-year warranty from the installation date.

Product Variants: Various product codes and configurations are listed based on switch type and power capacity, with detailed dimensions and specifications for each variant.

Additional Notes: Tecnoelettra reserves the right to make changes without notice, and images in the catalog are indicative.
