HMI Touch Screen Panel. TE7010

Product catalog summary

Overview: The TE7010 is a touch screen monitor designed by Tecnoelettra srl, capable of interfacing with the TE808 controller via RS232 and RS485 connections. It features a 65,000 color display and is equipped with a touch screen for interactive control.

Specifications:

Display: 4.3” TFT with 65,000 colors
Protection: IP65
Memory: 16Mb software, 50Mb data
Supply Voltage: 24Vdc
Dimensions: 128x102x38 mm
Cut-off: 119x93 mm

Functionality: The TE7010 allows remote control of the TE808, TE2010, and TE6010 controllers. It provides a graphical interface for system control, including trend graphics, interactive commands, and statistics. The device is programmable and includes function keys and an emergency button.

Features:

Six base pages for monitoring and controlling connected boards
Graphical display of power metrics
Connection diagrams with zoom functionality
Interactive keyboard for generator control
Instructional pages for each function

Order Codes:

TE7010-TFT4: 4" display
TE7010-TFT7: 7" display

Compliance: The product complies with EN 61010 standards.

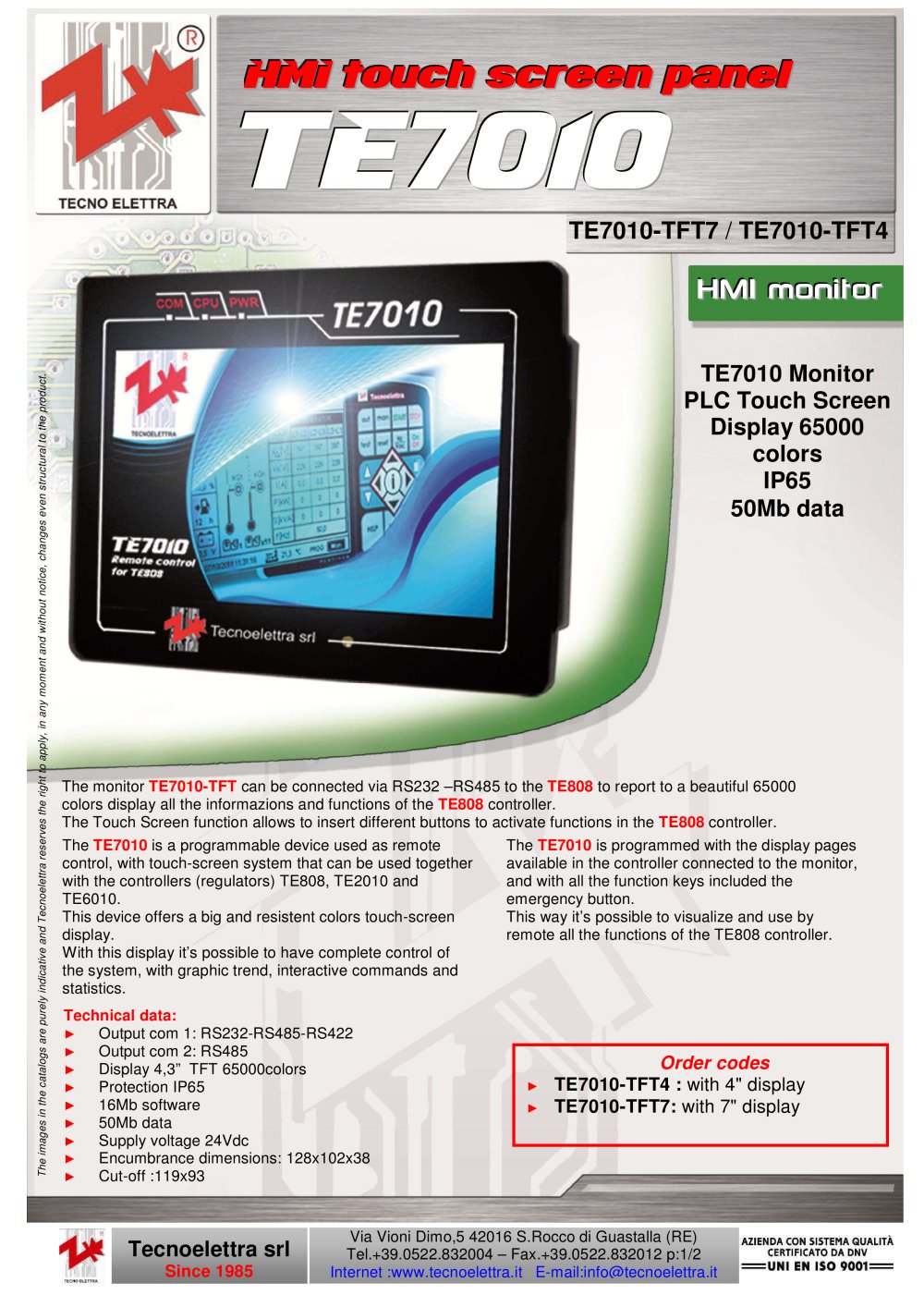

Catalog excerpts

te7010 uk table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:17.00pt "Arial", sans-serif; } .font9 { font:25.00pt "Arial", sans-serif; } .font10 { font:26.00pt "Microsoft Sans Serif", sans-serif; } .font11 { font:11.00pt "Tahoma", sans-serif; } MME touch screen panel TECNO ELETTRA TE7010-TFT7 / TE7010-TFT4 HMI manror TE7010 Monitor PLC Touch Screen Display 65000 colors IP65 50 Mb data I CD The monitor TE7010-TFT can be connected via RS232 -RS485 to the TE808 to report to a beautiful 65000 colors display all the informazions and functions of the TE808 controller. The Touch Screen function allows to insert different buttons to activate functions in the TE808 controller. The TE7010 is a programmable device used as remote control, with touch-screen system that can be used together with the controllers (regulators) TE808, TE2010 and TE6010. This device offers a big and resistent colors touch-screen display. With this display it's possible to have complete control of the system, with graphic trend, interactive commands and statistics. Technical data: The TE7010 is programmed with the display pages available in the controller connected to the monitor, and with all the function keys included the emergency button. This way it's possible to visualize and use by remote all the functions of the TE808 controller. s. 0) ► ► ► ► ► ► ► ► Output com 1 : RS232-RS485-RS422 Output com 2: RS485 Display 4,3" TFT 65000colors Protection IP65 16Mb software 50Mb data Supply voltage 24Vdc Encumbrance dimensions: 128x102x38 Cut-off : 119x93 Order codes ► TE7010-TFT4 : with 4" display ► TE7010-TFT7: with 7" display 1* Tecnoelettra srl Since 1985 Via Vioni Dimo,5 42016 S.Rocco di Guastalla (RE) Tel.+39.0522.832004 - Fax.+39.0522.832012 p:1/2 Internet :www.tecnoelettra.it E-mail:info(5)tecnoelettra.it AZIENDA CON SISTEMA QUALITA CERTIFICAT!) DA DNV =UNI EN ISO 9001^=

Open the catalog to page 1

te7010 uk table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:10.00pt "Arial", sans-serif; } .font7 { font:11.00pt "Arial", sans-serif; } .font8 { font:14.00pt "Arial", sans-serif; } .font9 { font:25.00pt "Arial", sans-serif; } .font10 { font:4.00pt "Microsoft Sans Serif", sans-serif; } The "TE7010" Windows...

Open the catalog to page 2
