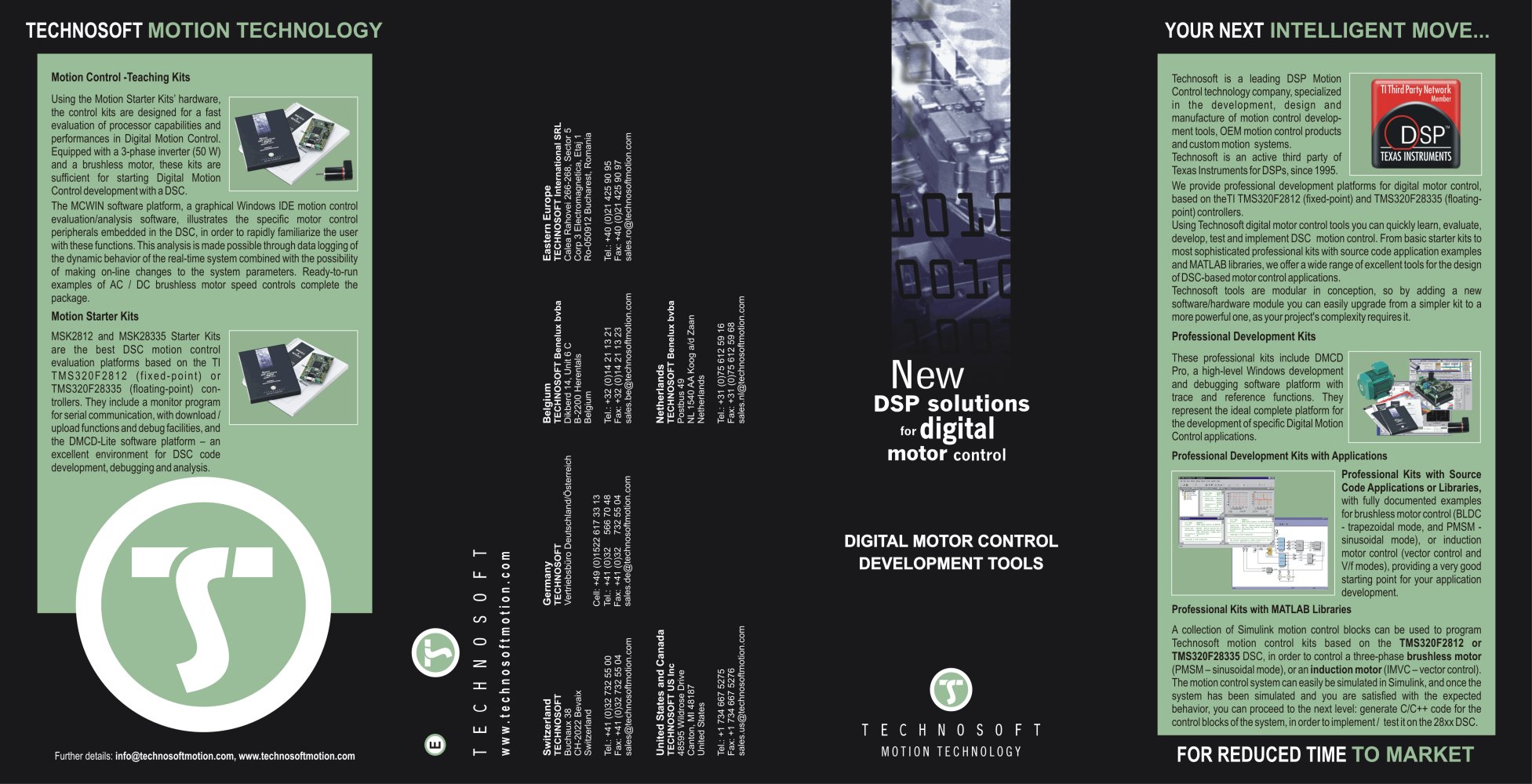

Technosoft Digital Motor Control Development Tools - 1

YOUR NEXT INTELLIGENT MOVE... TECHNOSOFT MOTION TECHNOLOGY Motion Control -Teaching Kits Using the Motion Starter Kits' hardware, the control kits are designed for a fast valuation of processor capabilities and performances in Digital Motion Control. Equipped with a 3-phase inverter (50 W) and a brushless motor, thse kits are sufficient for starting Digital Motion Control developmentwith a DSC. The MCWIN software platform, a graphical Windows IDE motion control evaluation/analysis software, illustr騢tes the spcifie motor control peripherals embedded in the DSC, in order to rapidly familiarize the user with thse functions. This analysis is made possible through data logging of the dynamic behaviorof the real-time System combined with the possibility of making on-line changes to the System parameters. Ready-to-run examples of AC / DC brushless motor speed controls compl騨te the package. Motion Starter Kits MSK2812 and MSK28335 Starter Kits are the best DSC motion control valuation platforms based on the Tl TMS320F2812 (fixed-point) or TMS320F28335 (floating-point) con-trollers. They include a monitor program for sriai communication, with download / upload functions and debug facilities, and the DMCD-Lite software platform - an excellent environment for DSC code development, debugging and analysis. Technosoft is a leading DSP Motion Control technology company, specialized in the development, design and manufacture of motion control develop驭ment tools, OEM motion control products and custom motion Systems. TEXAS INSTRUMENTS Technosoft is an active third party of Texas Instruments for DSPs, since 1995. We provide professional development platforms for digital motor control, based on theTI TMS320F2812 (fixed-point) and TMS320F28335 (floating-point) controllers. Using Technosoft digital motor control tools you can quickly learn, evaluate, develop, test and implement DSC motion control. From basic starter kits to most sophisticated professional kits with source code application examples and MATLAB libraries, we offer a wide range of excellent tools for the design of DSC-based motor control applications. Technosoft tools are modular in conception, so by adding a new software/hardware module you can easily upgrade from a simpler kit to a more powerful one, as your project's complexity requires it. Professional Development Kits Thse professional kits include DMCD Pro, a high-level Windows development and debugging software platform with trace and rf詩rence functions. They represent the idal complte platform for the development of sp騩cifie Digital Motion Control applications. Professional Development Kits with Applications New DSP solutions ^ digital motor control O 3 Z P o ã '5)x «2- o -0 o> a> ufj ^ °f ~ע C I- o m cd ە O <ģ » ■ i o ■Ijiii) « 'O!»ﻣ JLUOI<D - H Q- 2121 Professional Kits with Source Code Applications or Libraries, with fully documented examples for brushless motor control (BLDC - trapezoidal mode, and PMSM -sinusoidal mode), or induction motor control (vector control and V/f modes), providing a very good starting point for your application development. Professional Kits with MATLAB Libraries A collection of Simulink motion control blocks can be used to program Technosoft motion control kits based on the TMS320F2812 or TMS320F28335 DSC, in order to control a three-phase brushless motor (PMSM - sinusoidal mode), or an induction motor (IMVC - vector control). The motion control System can easily be simulated in Simulink, and once the System has been simulated and you are satisfied with the expected behavior, you can proceed to the next level: generate C/C++ code for the control blocks of the System, in order to implement/ test it on the 28xx DSC. DIGITAL MOTOR CONTROL DEVELOPMENT TOOLS o Ll_ o O o C/5 o O *- o <_) CD T E C H N 0 S 0 F T FOR REDUCED TIME TO MARKET MOTIONTECHNOLOGY Further dשtails: info@technosoftmotion.com, www.technosoftmotion.com

Open the catalog to page 1
