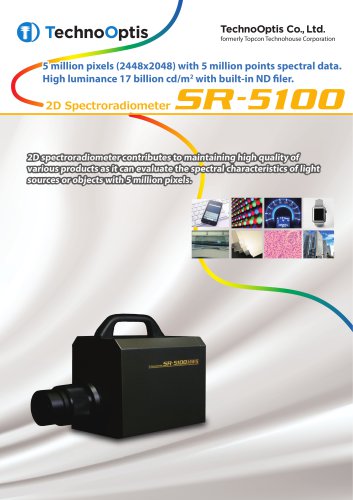

formerly Topcon Technohouse Corporation 5 million pixels (2448x2048) with 5 million points spectral data. High luminance 17 billion cd/m2 with built-in ND filer. 2D Spectroradiometer 2D D sp spectroradiometer pectrrorad diometerr contrib contributes butess tto o maintaining ain gh high ig gh q quality uality y off v arious p rod ductss ass itt can evaluate th he sp pe ectrall ch haracteristicss of lig ght various products the spectral characteristics light sourcess orr o bjectss with h 5 million p ixels ixels. objects pixels.

Replacing the measured numerical data with pseudo-color, grayscale, and RGB images, it enable to display Mura of the object. [ By measuring spectrum and analyzing thespecrumofttieobjectj it canevaluatesample for not [only characteristics that are difficult to detect with the human eye or filter-typed imaging 'luminancemeter, but also refrected light of objects and lighting simulations.^ • Non-destructive and non-contact, 5 million points of spectral evaluation for the characteristics of light sources, spectral transmittance characteristics of materials, land lspectral l reflectancelcharacteristicslwithl...

Support standard application software to measure and evaluate efficiently with easy operation. (Japanese/English) Colorimetric Image Software You can control the SR-5100 series and retrieve measured data, save data, convert measured data into image via PC. The application software conducts various types of data processing and data analyzing efficiently. •Live view Real time image that is automatically adjusted by brightness show on PC. You can check measurement area of target and adjust the position via Live-view image. •Focusing assist This function is used to adjust focus at real time. The...

| Usage examples ❖ Evaluation of luminance, chromaticity and spectrum unevenness for OLED, LCD, ^/mini LED and related materials. Pixel rdata^a= Spectrum image "Color shift" occurs due to low durability of OLED's RGB organic matter, and it is detected by shift of spectrum, ❖ Evaluation for automotive interior and exterior lamp. Evaluation for luminance unevenness, spectrum of specified points, luminance or chromaticity of object such as indicator.

❖ Multi points color rendering index Spectral search ^Matching : ratigjmagej: Matching analysis of spectrum unvenness ❖ SR-5100HM C-mount adapter application exampleEnable to evaluate high accurate spectrum distribution with contactless by microscope lens, zoom lens and system integration. SR-5100HM + Wide angle lens

Optional accessories ●Tripod 5N Easy collimation of measurement object. •Max height: 1835 mm •Weight: Approx. 4.8kg including Tripod head ●SR-5100HM optional accessories ●ZV-60 MS-ADAPTER It is the adapter for connecting the microscope and C-mount port. Spectral transmission factor correction tool for microscope lens. Spectral transmission factor correction tool for zoom lens. •Light source︓Halogen lamp •Lamp life : Approx. 700 hours •Operating conditions : Temperature 0 to 40℃ Humidity 20 to 80%R.H. (No condensation) •Dimensions︓Light unit︓115x130x281 mm Diffuser unit︓109x29x62 mm Light guide...

System diagram SR-5100 main body AC adapter (Standard accessory) Attachment wide lens AL-5001 USB 3.0 cable (Standard accessory) Computer(*) Tripod 5N Tripod head (Standard accessory of Tripod 5N) Carrying case (Standard accessory) Colorimetric Image software CI-100 (Standard accessory) Black MURA (Optional sohtware) (*)Goods on the market Dimension SR-5100HWS Standard lens Use only specified screws when using the tripod screw and screw holes for jig attachment. Do not tighten the screws any more than necessary. Doing so might cause internal breakage

*1:Standard lens + Attachment lens, *2:Standard illuminant A, *3:Standard illuminant A, *4:Hg, Hi precision mode, *5:FWHM, Hi precision mode, *6:At the center of sensor, *7 Within 2o, *8:Max value - Min value, *9:Center of the sensor, Standard illuminant A, within 80% of field of view, Measurement area: Standard lens Hardware requirement Measurement area: Wide lens Measurement area: Telephoto lens *Microsoft and Windows are registered trademark of Microsoft Corp. in the US and other countries. *Intel Core is a registered trademark or trademark of Intel Corporation in the US and other countries....
