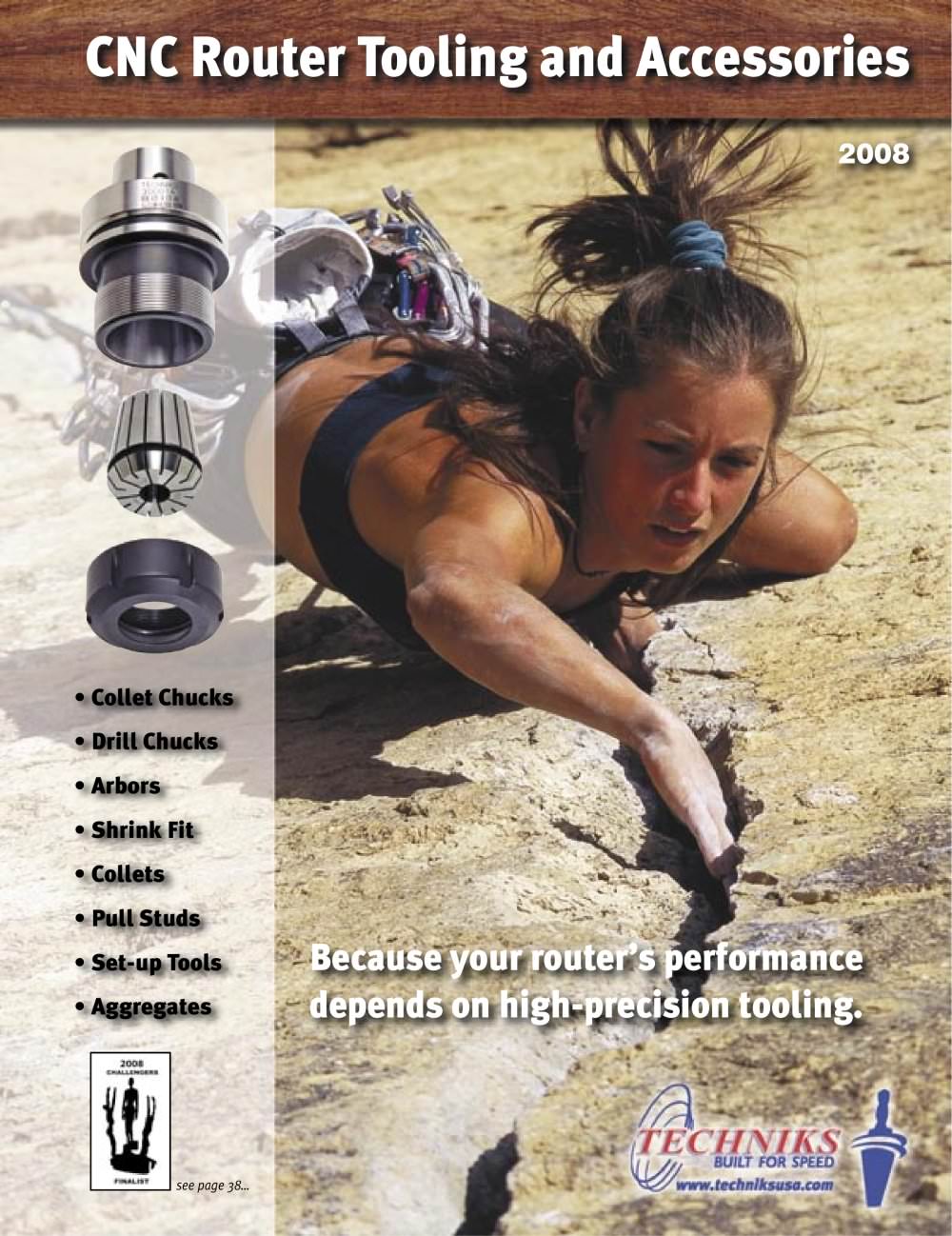

CNC Router Tooling and Accessories Because your router’s performance depends on high-precision tooling. • Collet Chucks • Drill Chucks • Arbors • Shrink Fit • Collets • Pull Studs • Set-up Tools • Aggregates 2008 see page 38…

Every holder is individually tested for quality & accuracy and comes with a lab certifi cation documenting accuracy and balance specifi cations. Taper-to-Pocket T.I.R. 0.0001" Measured from taper O.D. to collet pocket I.D. Taper Accuracy AT3 Taper ground to AT3 accuracy for maximum contact with spindle. Power Coat Nuts Our Power Coat nut holds 40% tighter than bearing nuts for best T.I.R. and rigidity. Balanced Nut Balanced nut reduces vibration to extend cutting tool life. Techniks Certified Tooling Improves Router Performance Balanced to 24,000 RPM Factory balanced to 24,000 RPM at G2.5 Custom...

All Techniks products are backed by our 100% satisfaction guarantee! 5 ISO and SK Tool Holders for CNC Routers • Balanced to 25,000 RPM at G2.5 • Inspection report included for accuracy and balance • includes collet nut Note: Measure the "A" dimension with the collet in the nut. Dimensions are in millimeters. SK Tool Holders for ANDI and Weeke CNC Routers Part No. Description D A F N Collet Nut Wrench Flats NT-54300130 SK-30 x SYOZ 25 - 70 50 70 15.9 60 included 03691 38 • Balanced to 25,000 RPM at G2.5 • Inspection report included for accuracy and balance • includes collet nut Note: Measure...

Call us toll-free at: (800) 597-3921 to speak to a tool holder applications s 8 pecialist. HSK 63F and ISO 30 Arbors for CNC Routers Part No. Description L GL D B N 12700-40-W ISO 30 x 1-1/4" x 40 arbor 40 42 1-1/4" 20 42 12700-55-W ISO 30 x 1-1/4" x 55 arbor 55 42 1-1/4" 20 42 12700-80-W ISO 30 x 1-1/4" x 80 arbor 80 42 1-1/4" 20 42 12700-100-W ISO 30 x 1-1/4" x 100 arbor 100 42 1-1/4" 20 42 Special sizes made to your specifications. Refer to page 42 or call for details. • Special 3 screw design improves safety • Precision ground taper provides high accuracy • Balanced 25,000 RPM at G2.5 ISO...

9 High Precision Drill Chucks, Adapters, & CMS Tool Holder • Capacity from 1/16" to 1/2" • 4 times greater holding power • Balanced to 10,000 RPM Part No. Collet Type Shank Thread 00316-R ER16 3/8" or 10mm Right 00316-L ER16 3/8" or 10mm Left Part No. Shank Thread I.D. 00316-SLN-R M10x1.05 Right 10 00316-SLN-L M10x1.05 Left 10 Drill Adapters For CNC routers with inline multi-spindles. CMS Toolholder Includes turret nut. Order collets and nuts separately. Part No. Description CMS-RR32 CMS Toolholder with turret nut • Works with ER or ETS collets • 0.0002" T.I.R. (collet pocket runout) • Taper...

All Techniks products are backed by our 100% satisfaction guarantee! 11 TechnoSHRINK Induction Heat Shrink-Fit Machines TechnoSHRINK Machines Part No. Description Tool Change Cooling Power Rating L x D x H Ship Wt. 00300 Techno-Shrink II 30 seconds air (2-3 min.) 220V, 1 phase 16"x 19"x 28" 33 lbs 00100 Techno-Shrink Ultra 6-9 seconds air (2-3 min.) 220V, 3 phase 16"x 16"x 32" 77 lbs Tool Holder Spindle Adapters Part No. Spindle Figure 00151 any 30 taper 2 00152 any 40 taper 1 00153 any 50 taper 1 00156 HSK 32 2 00157 HSK 40 2 00158 HSK 50 2 00159 HSK 63 1 00160 HSK 80 1 TechnoSHRINK II (affordable...

Call us toll-free at: (800) 597-3921 to speak to a tool holder applications s 12 pecialist. Hydraulic Tool Holders for CNC Routers ISO Hydraulic Chucks for CNC Routers Part No. Description d1 d2 d3 d I2 I1 64.05.043.224 ISO/SK 30 Hydro Chuck 3/4" ID 3/4" 70 45 50 44 60 64.05.043.225 ISO/SK 30 Hydro Chuck 1" ID 1.0" 70 45 50 44 60 HSK Hydraulic Chucks for CNC Routers Part No. Description d1 d2 d3 d I2 I1 171.05.036.016 HSK 63 F Hydro Chuck 20mm ID 20 42 50 63 58 100 171.05.036.018 HSK 63 F Hydro Chuck 32mm ID 32 60 50 63 59 125 171.05.036.020 HSK 63 F Hydro Chuck 25mm ID 25 44 50 63 23 85 171.05.036.035...

Call us toll-free at: (800) 597-3921 to speak to a tool holder applications s 16 pecialist. Rubber bearing seals fail, then dust contaminates bearings, making them seize. Uncoated threads limit holding power. Bearing Nuts = Old Technology Why CNC Routers Run Better with Power Coat Nuts Power Coat nuts are manufactured with a special process that reduces friction between the nut, collet shoulder, and tool holder threads. This greatly increases holding power so runout (T.I.R.) is improved. Better T.I.R. means cutting is faster and smoother and tool life is improved too. Power Coat Nuts = 40% More...

All Techniks products are backed by our 100% satisfaction guarantee! 17 Ultra High Speed Power Coat ER Collet Nuts Ultra High-Speed ER Coated Nuts Part No. Description D B M Max. Speed Wrench * Max. Torque 46111 ER RH 11 B Nut 19 11.8 M14 x 0.75 70,000 04608 20 ft/lbs 46116 ER RH 16 B Nut 32 18.0 M22 x 1.5 65,000 04613 50 ft/lbs 46120 ER RH 20 B Nut 35 19.5 M25 x 1.5 60,000 04614 75 ft/lbs 46125 ER RH 25 B Nut 42 20.5 M32 x 1.5 55,000 04615 95 ft/lbs 46132 ER RH 32 B Nut 50 23.0 M40 x 1.5 50,000 04616 125 ft/lbs 46140 ER RH 40 B Nut 63 26.0 M50 x 1.5 40,000 04617 140 ft/lbs *Recommended torque...

Call us toll-free at: (800) 597-3921 to speak to a tool holder applications s 18 pecialist. ER Bearing Nuts and High Speed Mini Nuts ER Bearing Nuts Part No. Description D B M Wrench * Max. Torque 29132 ER 32 HS Bearing Nut 50 25 M40x1.5 04616 125 ft/lbs 21240 ER 40 HS Bearing Nut 63 28 M50x1.5 04617 140 ft/lbs Use these nuts for spindle speeds below 18,000 RPM’s * Recommended torque is 80-90% of maximum value Bearing nuts reduce friction between the nut and the collet shoulder. This creates more downforce on the collet, making it collapse tighter around the tool shank. For maximum holding power...

All Techniks products are backed by our 100% satisfaction guarantee! 19 Power Coat ER Dust Seal Nuts – Bearing ER Dust Seal Nuts Power Coat ER Internal Dust Seal Nuts Part No. Description D B Wrench T * Max. Torque 41616 ER 16 HS Internal Dust Seal Coated Nut 32 22.5 04613 M22x1.5 50 ft/lbs 41620 ER 20 HS Internal Dust Seal Coated Nut 35 24 04614 M25x1.5 75 ft/lbs 41625 ER 25 HS Internal Dust Seal Coated Nut 42 25 04615 M32x1.5 95 ft/lbs 41632 ER 32 HS Internal Dust Seal Coated Nut 50 27.5 04616 M40x1.5 125 ft/lbs 41640 ER 40 HS Internal Dust Seal Coated Nut 63 30.7 04617 M50x1.5 140 ft/lbs See...
