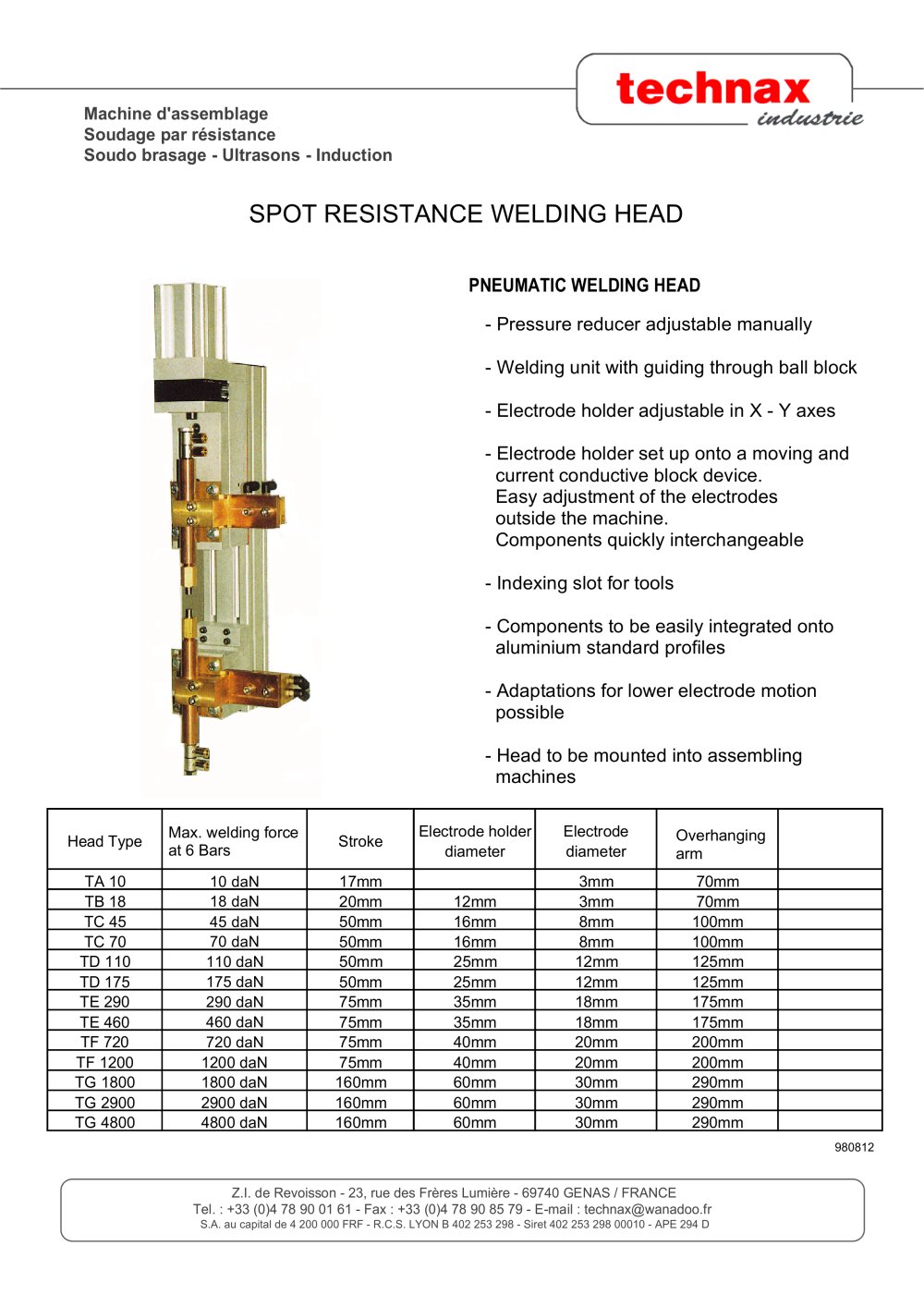

Pneumatic spot welding heat type T

Product catalog summary
Overview: The document provides technical specifications and features of a pneumatic spot resistance welding head, designed for integration into assembly machines.
Specifications:
  • Pressure Adjustment: Manual pressure reducer.
  • Welding Unit: Guided through a ball block for precision.
  • Electrode Holder: Adjustable in X-Y axes, set on a moving and current conductive block for easy external adjustment and quick component interchangeability.
  • Tool Integration: Features an indexing slot for tools and compatibility with aluminum standard profiles.
  • Electrode Motion: Adaptations possible for lower electrode motion.
Head Types and Capacities:
Head TypeMax. Welding Force (daN)Stroke (mm)Electrode Holder Diameter (mm)Electrode Diameter (mm)Overhanging Arm (mm)
TA 101017370
TB 18182012370
TC 454550168100
TC 707050168100
TD 110110502512125
TD 175175502512125
TE 290290753518175
TE 460460753518175
TF 720720754020200
TF 12001200754020200
TG 180018001606030290
TG 290029001606030290
TG 480048001606030290
Contact Information: Technax, Z.I. de Revoisson, 23 rue des Frères Lumière, 69740 Genas, France. Tel: +33 (0)4 78 90 01 61, Fax: +33 (0)4 78 90 85 79, Email: [email protected]
Company Details: S.A. with a capital of 4,200,000 FRF, R.C.S. Lyon B 402 253 298, Siret 402 253 298 00010, APE 294 D.
