Pedestal type spot welder
Product catalog summary

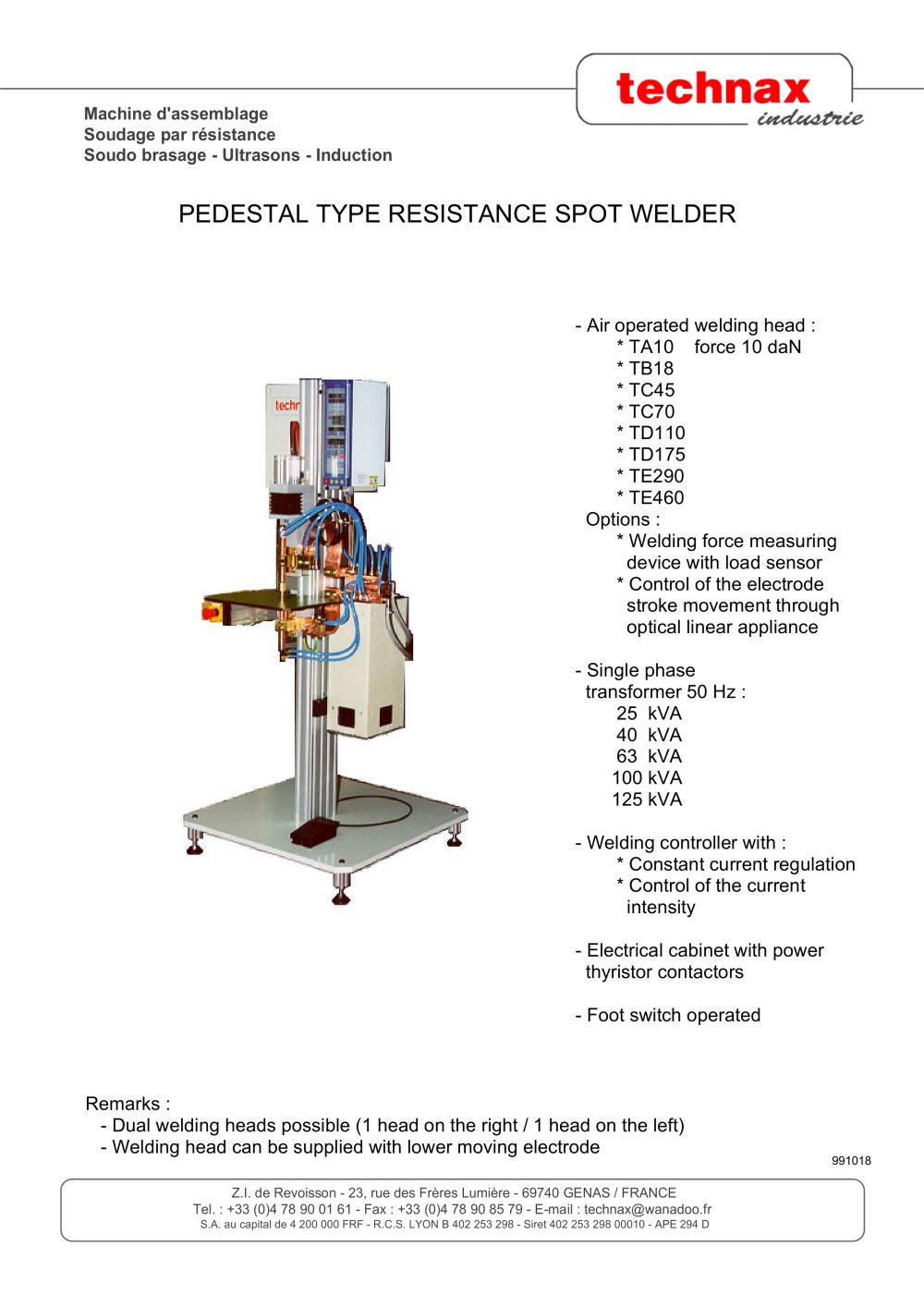

Overview: The document describes a pedestal type resistance spot welder, model 991018, manufactured by a company located in Genas, France. It outlines the specifications, options, and features of the welding machine.
Specifications:
- Dual Welding Heads: The machine can be equipped with two welding heads, one on the right and one on the left.
- Welding Head Options: The welding head can be supplied with a lower moving electrode and is air-operated with various force options (TA10, TB18, TC45, TC70, TD110, TD175, TE290, TE460).
- Transformer: Single-phase transformer operating at 50 Hz with power options of 25 kVA, 40 kVA, 63 kVA, 100 kVA, and 125 kVA.
- Welding Controller: Features constant current regulation and control of current intensity.
- Electrical Cabinet: Equipped with power thyristor contactors.
- Operation: The machine is operated via a foot switch.
Options:
- Welding force measuring device with load sensor.
- Control of the electrode stroke movement through an optical linear appliance.
Contact Information: The company can be contacted via phone, fax, or email for further inquiries.
