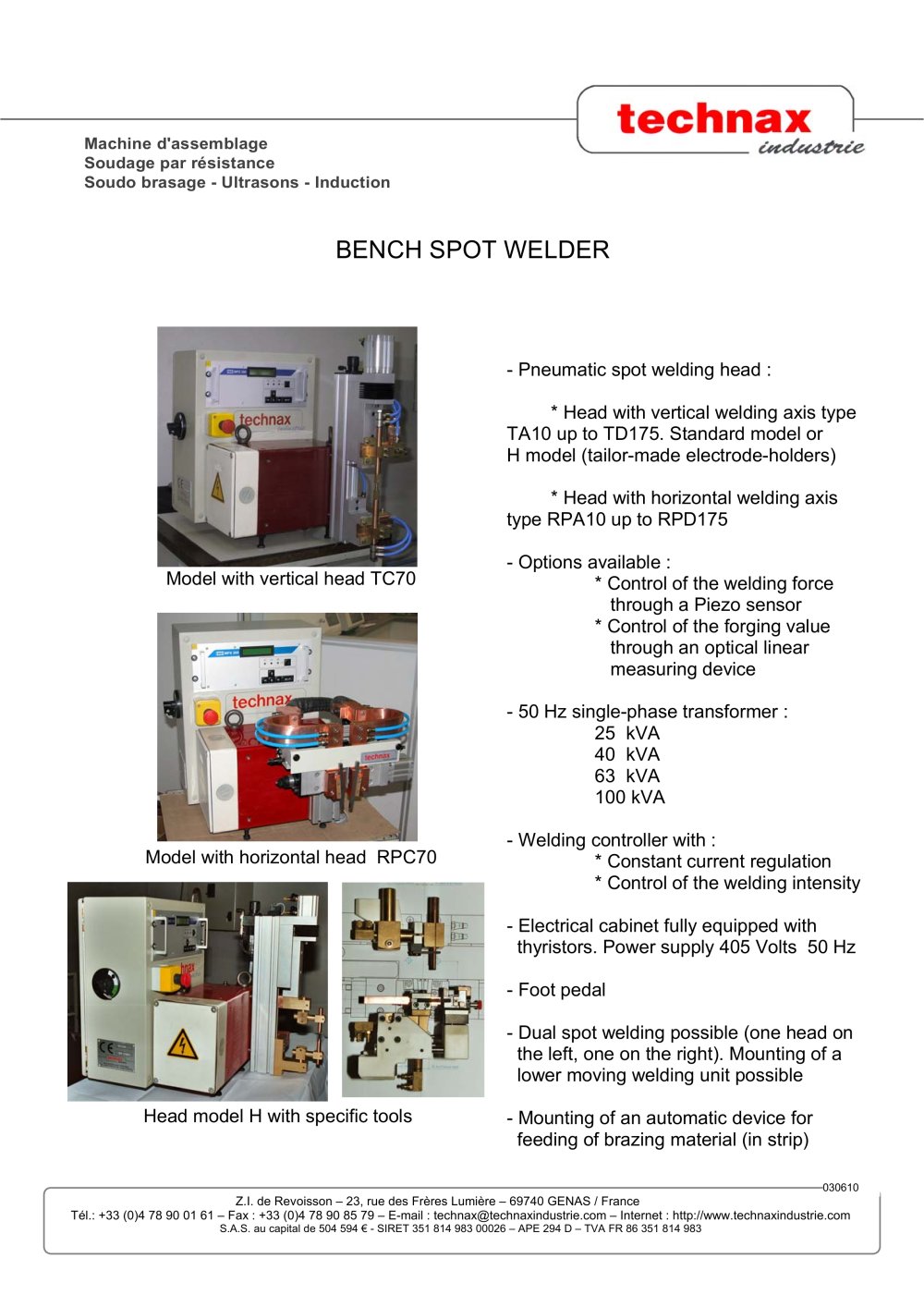

Bench spot welders

Product catalog summary
Overview: The document provides technical specifications and options for a Bench Spot Welder, focusing on resistance welding technologies including ultrasonic and induction methods.
Specifications:
  • Pneumatic Spot Welding Head: Available in vertical (TA10 to TD175) and horizontal (RPA10 to RPD175) welding axis types. Customizable electrode-holders are available in the H model.
  • Transformer Options: Single-phase transformers available in 25 kVA, 40 kVA, 63 kVA, and 100 kVA.
  • Welding Controller: Features constant current regulation and welding intensity control.
  • Electrical Cabinet: Equipped with thyristors, operating at 405 Volts, 50 Hz.
Options and Features:
  • Force and Forging Control: Optional piezo sensor for welding force control and optical linear measuring device for forging value control.
  • Dual Spot Welding: Capability for dual spot welding with heads on both sides and an optional lower moving welding unit.
  • Automatic Brazing Material Feeding: Automatic device for feeding brazing material in strip form.
Models:
  • Vertical Head Model: TC70
  • Horizontal Head Model: RPC70
