Automatic welding line electronic components / plate

Automatic welding line electronic components / plate
1 / 1 PageView full catalog

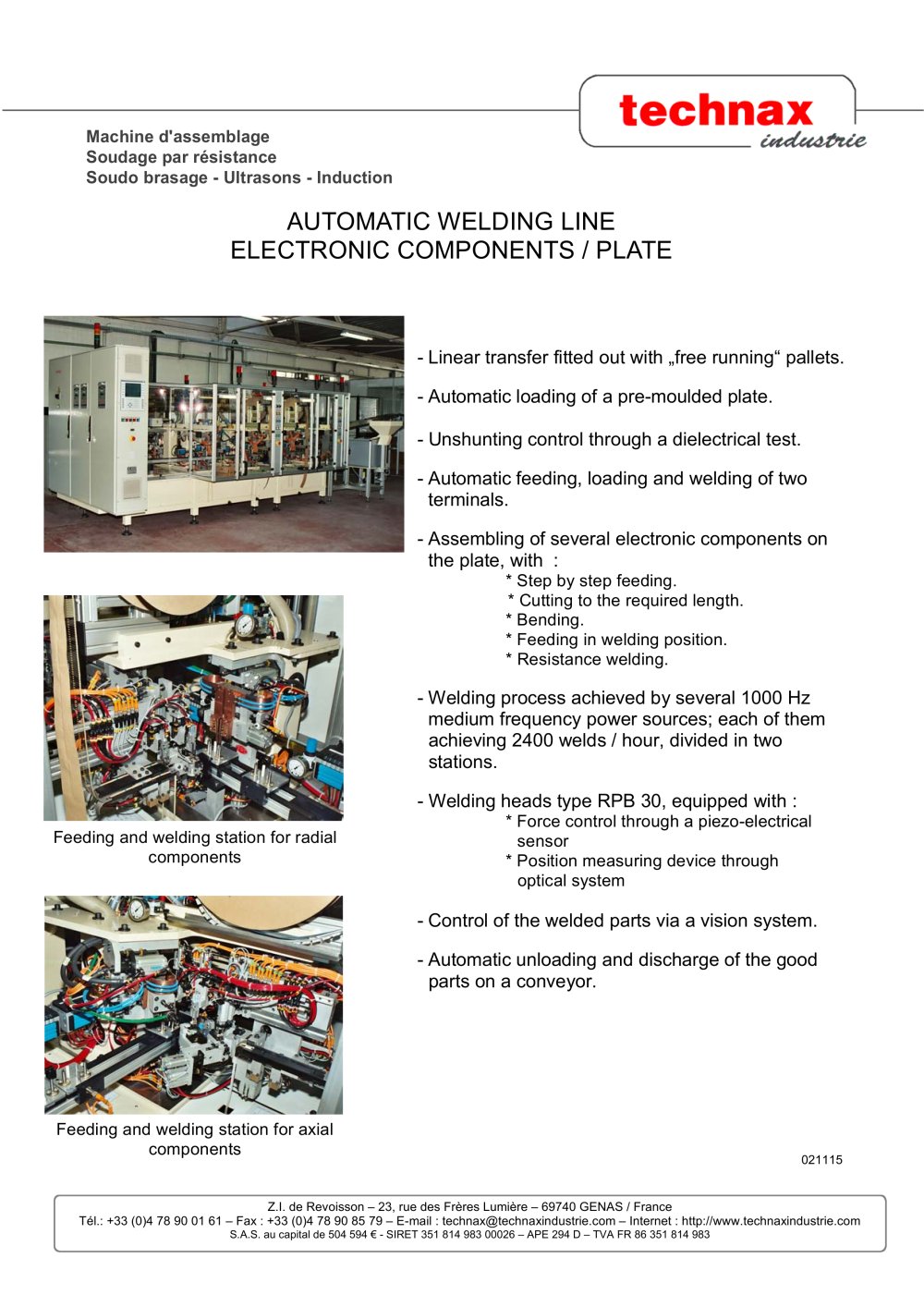

Automatic welding line electronic components / plate

Product catalog summary
Overview: The document describes an automatic welding line designed for assembling electronic components onto a plate. The system is equipped with advanced features to ensure efficient and precise welding processes.
Specifications:
  • Linear transfer system with 'free running' pallets for smooth operation.
  • Automatic loading of pre-moulded plates.
  • Dielectrical test for unshunting control.
  • Automatic feeding, loading, and welding of two terminals.
Procedures:
  • Step-by-step feeding of electronic components.
  • Components are cut to the required length, bent, and fed into the welding position.
  • Resistance welding is performed using medium frequency power sources operating at 1000 Hz, capable of 2400 welds per hour across two stations.
Equipment:
  • Welding heads type RPB 30 with force control via piezo-electrical sensors and position measurement through an optical system.
Quality Control:
  • Vision system for controlling the quality of welded parts.
  • Automatic unloading and discharge of good parts onto a conveyor.
Stations:
  • Feeding and welding station for radial components.
  • Feeding and welding station for axial components.
See more
