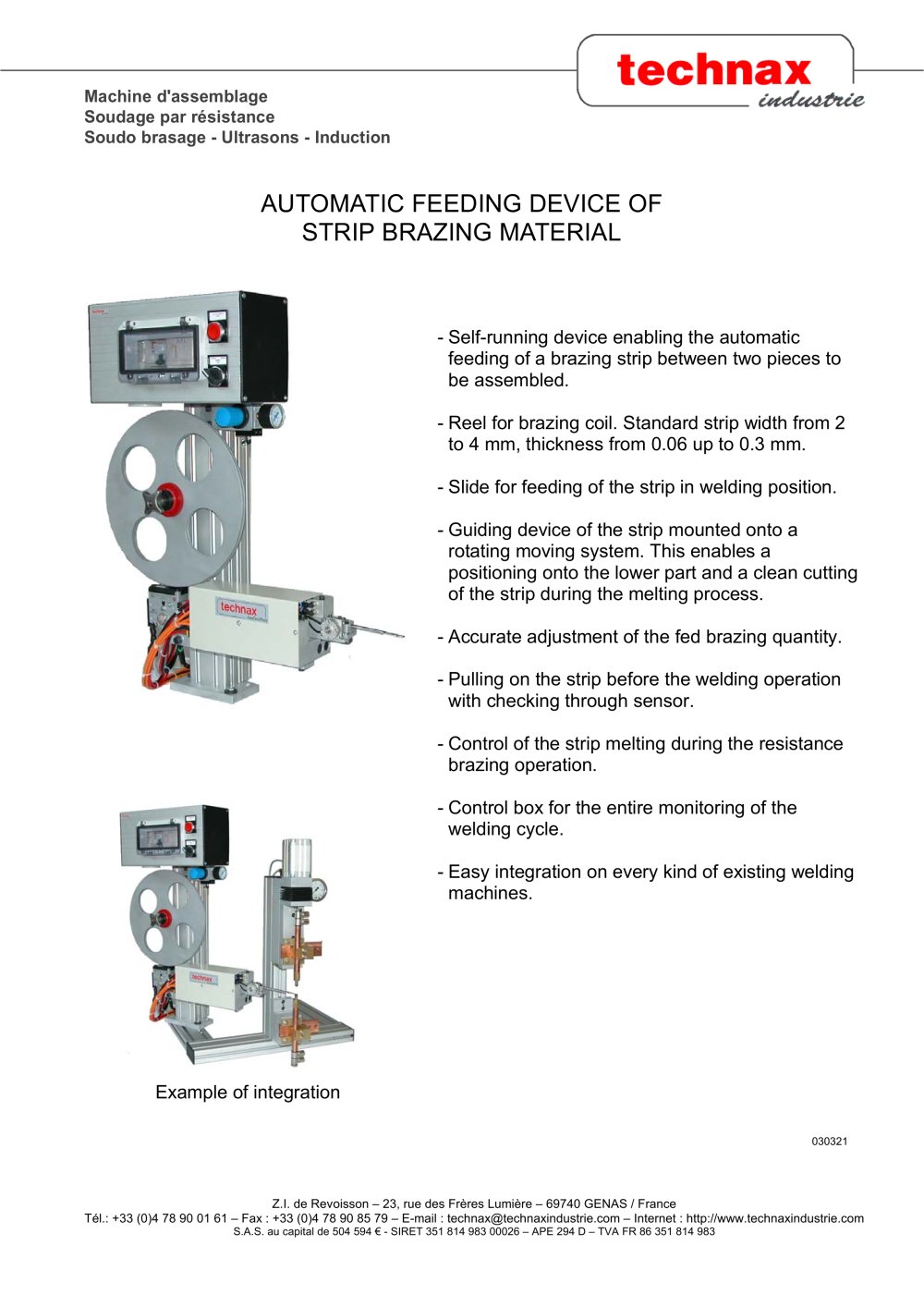

Automatic strip brazing feeding device

Product catalog summary
Overview: The document describes an automatic feeding device designed for strip brazing material, facilitating the assembly of two pieces through a self-running mechanism.
Specifications:
  • The device includes a reel for brazing coil, accommodating standard strip widths from 2 to 4 mm and thicknesses from 0.06 to 0.3 mm.
  • A slide mechanism feeds the strip into the welding position.
  • A guiding device is mounted on a rotating system for precise positioning and clean cutting during the melting process.
Functional Features:
  • Accurate adjustment of the brazing quantity fed into the process.
  • Pre-welding strip tensioning with sensor-based monitoring.
  • Control over strip melting during resistance brazing operations.
  • A control box is provided for comprehensive monitoring of the welding cycle.
Integration: The device is designed for easy integration with existing welding machines, including resistance welding, ultrasonic, and induction brazing systems.
Contact Information: The document provides contact details for Technax Industrie, located in Genas, France, for further inquiries and support.
