50 Hz single-phase welding controller

Product catalog summary
Overview: The document provides technical specifications and operational modes for a single-phase welding controller, specifically the MPS type, used in resistance welding applications.
Specifications:
  • Supports up to 8 weld schedules.
  • Operates in three modes: Configuration, Programming, and Counter (of welds) mode.
  • Allows programming of welding time in periods or half-periods.
  • Features current regulation on the secondary circuit with intensity programming in kA.
  • Includes welding current monitoring with adjustable mini/maxi limits.
  • Display available in English, French, and German.
  • Utilizes thyristors for a 50 Hz single-phase transformer, supporting up to 125 kVA.
  • Equipped with water cooling for thyristors.
Additional Components:
  • Welding controller types 300 and 200 are mentioned, indicating compatibility or additional options.
See more

Catalog excerpts

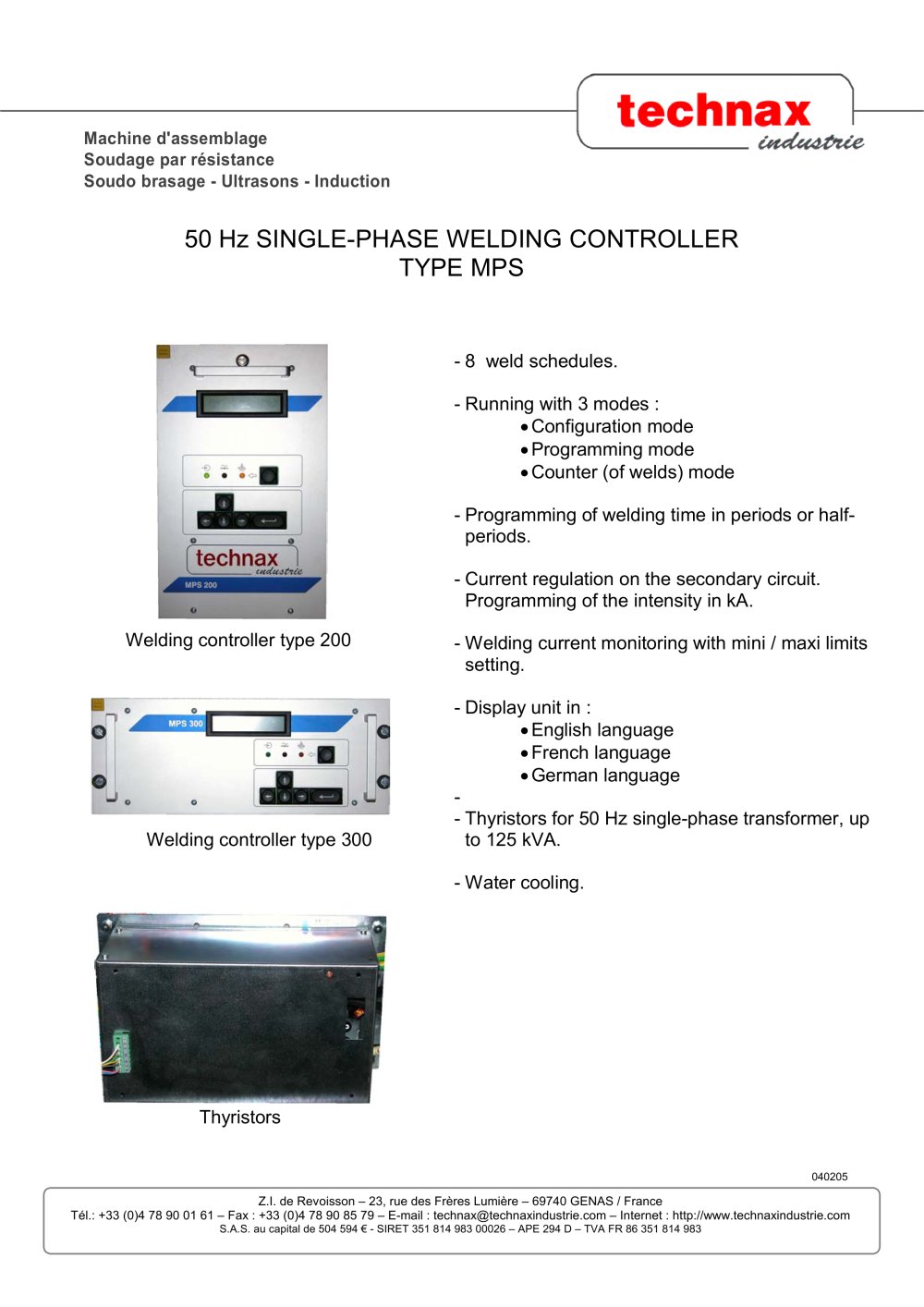

50 Hz single-phase welding controller-1

Machine d'assemblageSoudage par rsistanceSoudo brasage - Ultrasons - Induction -8 weld schedules. -Running with 3 modes : Configuration mode Programming mode Counter (of welds) mode -Programming of welding time in periods or half-periods. -Current regulation on the secondary circuit. Programming of the intensity in kA. -Welding current monitoring with mini / maxi limits setting. -Display unit in : Welding controller type 200 English language French language German language - -Thyristors for 50 Hz single-phase transformer, up to 125 kVA. -Water cooling. Welding controller type 300 Thyristors > 040205 Z.I. de Revoisson 23, rue des Fr閨res Lumire 69740 GENAS / France T薩l.: +33 (0)4 78 90 01 61 Fax : +33 (0)4 78 90 85 79 ֖ E-mail : [email protected] Internet : http://www.technaxindustrie.com S.A.S. au capital de 504 594 ր - SIRET 351 814 983 00026 APE 294 D ֖ TVA FR 86 351 814 983 size="-3">

 Open the catalog to page 1
