1000 Hz medium frequency welding power source

1000 Hz medium frequency welding power source
1 / 1 PageView full catalog

1000 Hz medium frequency welding power source

Product catalog summary
Overview: The document provides technical specifications and features of a medium frequency welding power source used in resistance welding, soldering, and brazing applications. It highlights the capabilities and configurations available for different power requirements.
Specifications:
  • Welding Time: Measured in milliseconds, allowing precise control over the welding process.
  • Current Control and Regulation: Ensures consistent welding quality by managing the welding current effectively.
  • Programmable Welding Steps: Allows customization of welding schedules with multiple steps for different applications.
  • Proportional Valve Monitoring: Ensures accurate control of welding parameters.
Operator Interface:
  • Available in multiple languages: French, English, German, and Spanish, facilitating ease of use for operators from different regions.
Power Range:
  • Various power configurations are available to suit different industrial needs, ranging from 25 kVA to 700 kVA, including options for multiple transformers (e.g., 2 x 250 kVA, 3 x 250 kVA, 2 x 700 kVA).
Components:
  • Includes an inverter, welding controller, and transformers with different capacities (140 kVA, 180 kVA, 250 kVA).
See more

Catalog excerpts

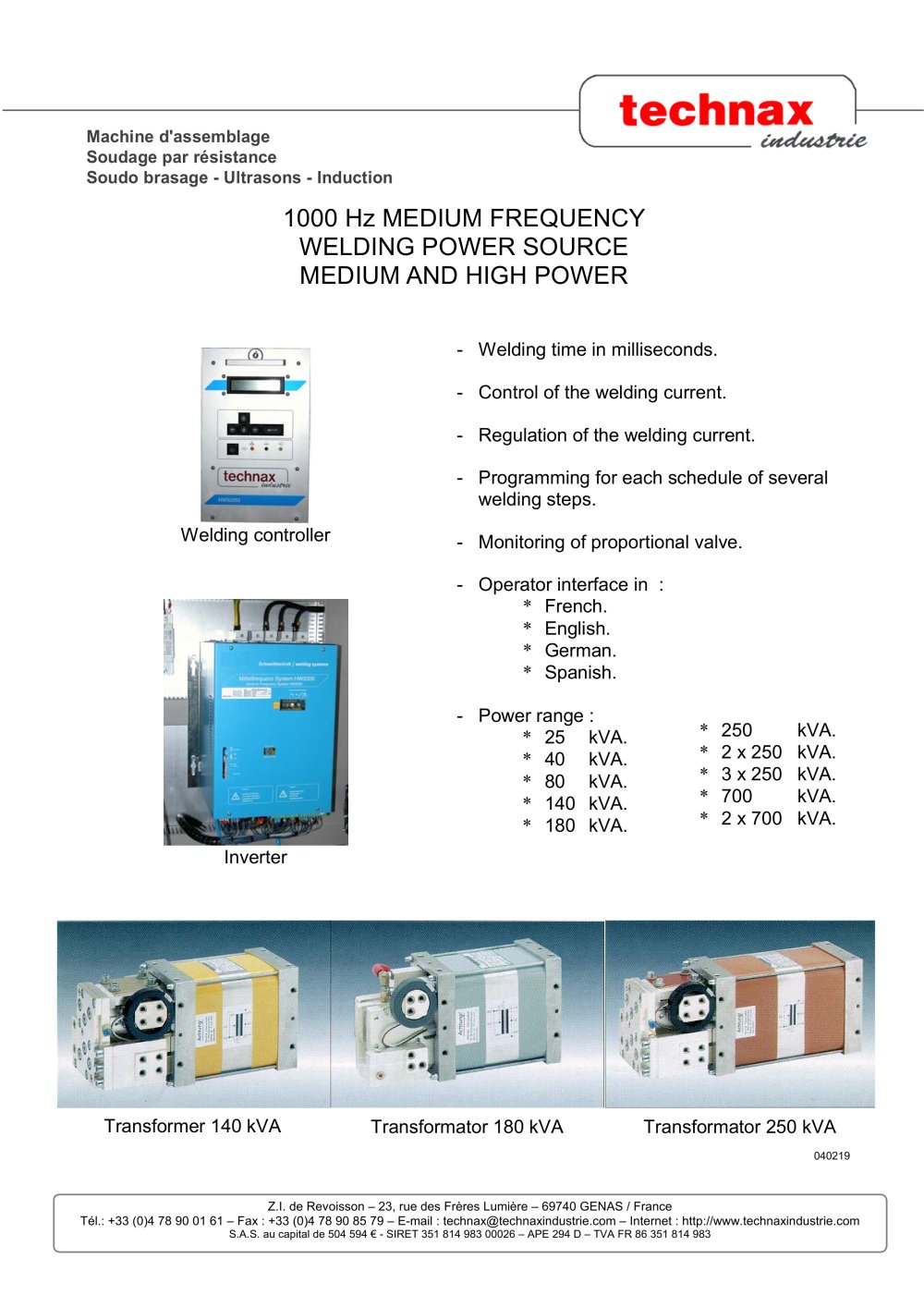

1000 Hz medium frequency welding power source-1

Machine d'assemblageSoudage par rsistanceSoudo brasage - Ultrasons - Induction -Welding time in milliseconds. -Control of the welding current. -Regulation of the welding current. -Programming for each schedule of several welding steps. -Monitoring of proportional valve. -Operator interface in : * French. Welding controller * English. * German. * Spanish. -Power range : * 25 kVA. * 40 kVA. * 80 kVA. * 140 kVA. * 180 kVA. * 250 kVA. * 2 x 250 kVA. * 3 x 250 kVA. * 700 kVA. * 2 x 700 kVA. Inverter Transformer 140 kVA Transformator 180 kVA Transformator 250 kVA > 040219 Z.I. de Revoisson 23, rue des Fr閨res Lumire 69740 GENAS / France T薩l.: +33 (0)4 78 90 01 61 Fax : +33 (0)4 78 90 85 79 ֖ E-mail : [email protected] Internet : http://www.technaxindustrie.com S.A.S. au capital de 504 594 ր - SIRET 351 814 983 00026 APE 294 D ֖ TVA FR 86 351 814 983 size="-3">

 Open the catalog to page 1
