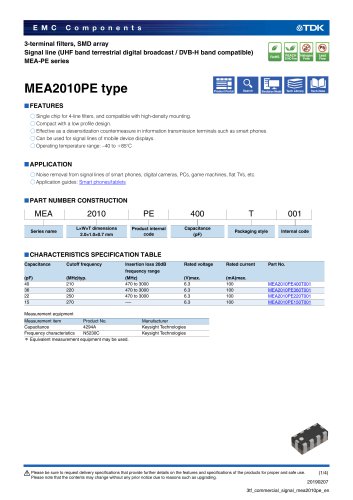

REACH Halogen Lead ROHS SVHC-Free Free Free Signal line (UHF band terrestrial digital broadcast / DVB-H band compatible) MEA-PE series MEA2010PE type■FEATURES C Single chip for 4-line filters, and compatible with high-density mounting. C Compact with a low profile design. C Effective as a desensitization countermeasure in information transmission terminals such as smart phones. Can be used for signal lines of mobile device displays. Operating temperature range: -40 to +85°C Noise removal from signal lines of smart phones, digital cameras, PCs, game machines, flat TVs, etc. C Application guides: Smart phones/tablets PART NUMBER CONSTRUCTION ■ CHARACTERISTICS SPECIFICATION TABLE Capacitance Cutoff frequency Insertion loss 20dB Rated voltage Rated current Part No. frequency range Measurement equipment Measurement item Product No. Manufacturer Capacitance 4294A Keysight Technologies Frequency characteristics N5230C Keysight Technologies * Equivalent measurement equipment may be used. ^Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. (1/4) Please note that the contents may change without any prior notice due to reasons such as upgrading.

MEA2010PE type INSERTION LOSS VS. FREQUENCY CHARACTERISTICS 0 Frequency (MHz) Measurement equipment Product No. Manufacturer N5230C Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading.

REEL DIMENSIONS ■ RECOMMENDED LAND PATTERN q a +2.0 TAPE DIMENSIONS ■ CIRCUIT DIAGRAM Type ■ RECOMMENDED REFLOW PROFILE 160min. Taping 200min. Package quantity | 4,000 pcs/reel ■ TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating temperature range * The storage temperature range is for after the assembly. /j\ Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. (3/4) Please note that the contents may change without any prior notice due to reasons such as upgrading.

REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is less than 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure...
