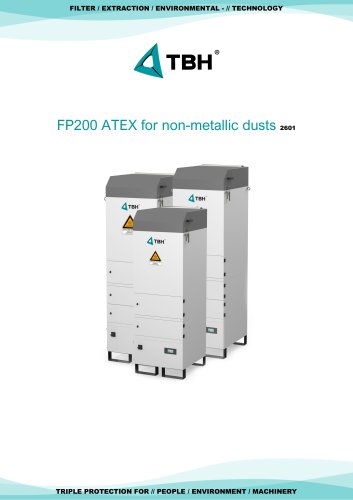

FILTER / EXTRACTION / ENVIRONMENTAL - // TECHNOLOGY FP200 ATEX for non-metallic dusts 2601 TRIPLE PROTECTION FOR // PEOPLE / ENVIRONMENT / MACHINERY

Long service life through effective filter cleaning Image 1: New filter cartridge Image 2: Filter cartridge in use Image 3: Filter cartridge after cleaning with compressed air The FP211 and FP213 are equipped with six cleanable filter cartridges of dust class M. The filter cartridges are made of BGIA (USGC) tested filter material, which allows an optimized filter cleaning due to its special folding. Depending on the application, specially coated variants can be used. Please contact the TBH sales department. Patented technology and contamination-free filter change Filter cartridge cleaning The...

Filter cleaning control TheFP200 ATEX-seriesseries are equipped with a specialized filter cleaning control system that automatically clears the filter cartridge of accumulated dust, significantly extending their service life. The customer can parameterize various options depending on the application: Differential pressure-controlled cleaning (factory setting) The system constantly measures the current filter saturation and automatically starts the cleaning cycle when a set value is reached (factory setting: 75% saturated filter). Interval filter cleaning (parameterizable via the interface) The...

Application-dependent motor selection The TBH product range offers a selection of different motor concepts to ensure that the extraction and filter system is optimally suited to the specific application. This makes it possible to optimally adapt the design of the system to the conditions prevailing on site, for example: • single or multi-station extraction • noise-sensitive environment • industrial production hall • short or long extraction lines • large or small line cross-sections • coarse or fine particles Adsorption of gaseous substances with activated carbon granulate (physical adsorption)...

Powerful control electronics • Switch Start/Stop • "Filter full” early warning level (75 %) • Collective error output (rotation speed, temperature, "filter full” 100%) • External speed control • Parameterization access for activating special functions • Message cache

Applications Dry Dusts in Metalworking Dry dust is generated in many industrial processes. In metalworking, chips and particles are produced that must be extracted and filtered to protect employees and keep the work area clean. TBH extraction and filter systems are ideally suited for this purpose, offering various designs and filter configurations. Plastics Processing Plastics are now used in almost every industry. TBH systems offer reliable extraction and filtration of sanding dust and vapors during plastics processing. Efficient extraction systems and pre-filters are particularly important...

For the easy configuration of your desired TBH extraction and filter system, type FP211 or FP213, please follow these steps: Depending on the application, select the suitable system based on its performance data. The FP211 ATEX and FP213 ATEX are equipped with antistatic filter cartridges by default. Depending on the application, special filter cartridges can also be used. Please contact the TBH sales department. To ensure ATEX protection on the systems, an intermediate module with a special particle filter (H14) is used as a safety level. To increase ease of maintenance, the particle filter...

D - Selection of intake socket Select the intake nozzles for your system (position and diameter) (see figure). Please note any existing connections, e.g. to laser systems or similar. Please also pay attention to a reasonable dimensioning of the line cross-sections for your application (air velocity, pressure loss). E - Selection of filter cleaning The system is factory-equipped with the “differential pressure-controlled filter cleaning” function. When the filter saturation reaches the set value, the system automatically starts its filter cleaning cycle. The cleaning modes, interval cleaning and...

Technical dataFP211 ATEX + FP213 ATEX Delivery scope FP211 ATEX + FP213 ATEX • fully assembled (incl. the selected filter equipment) • Pallet feet (suitable for forklift trucks) • Lifting brackets (optional) • Power cord There are two filter materials to choose from

Ordering data FP211 ATEX STANDARD MODEL WITH INTERMEDIATE MODULES * indicates position only ** Coupling dimension reduces the extraction capacity of the system by approx. 20% - alternatively, an additional filter module can be connected downstream of the system so that the capacity is not negatively affected (see accessories) Necessary for manual precoating or automated production lines. The filter is cleaned manually using the button on the front foil or the interface/customer PLC. Further cleaning modes can be parameterized via the interface.

Ordering data FP213 ATEX DESIGNATION ART. NO. FP213ATEX 230V (1P+N+PE) WITH INTERMEDIATE MODULES reduces the extraction capacity of the system by approx. 20% - alternatively, an additional filter module can be connected downstream of the system so that the capacity is not negatively affected (see accessories) Necessary for manual precoating or automated production lines. The filter is cleaned manually using the button on the front foil or the interface/customer PLC. Further cleaning modes can be parameterized via the interface.

Notification, e.g., for controlling the cleaning process externally in conjunction with automatic cleaning

DELIVERY SCOPE:Connection cable (incl. software) CONNECTION CABLE USB HARTING APPLICATION DELIVERY SCOPE:Connection cable (incl. software) SPARK QUENCHER APPLICATION Installation:Depending on the application and size, the spark quencher can be mounted on the wall or a worktable using a special holder (including magnets, supplied) or with pipe clamps (please order separately). DUST BAG Dust bag for low-contamination disposal of the cleaned filtrate. PRECOATING ACCESSORIES APPLICATION
