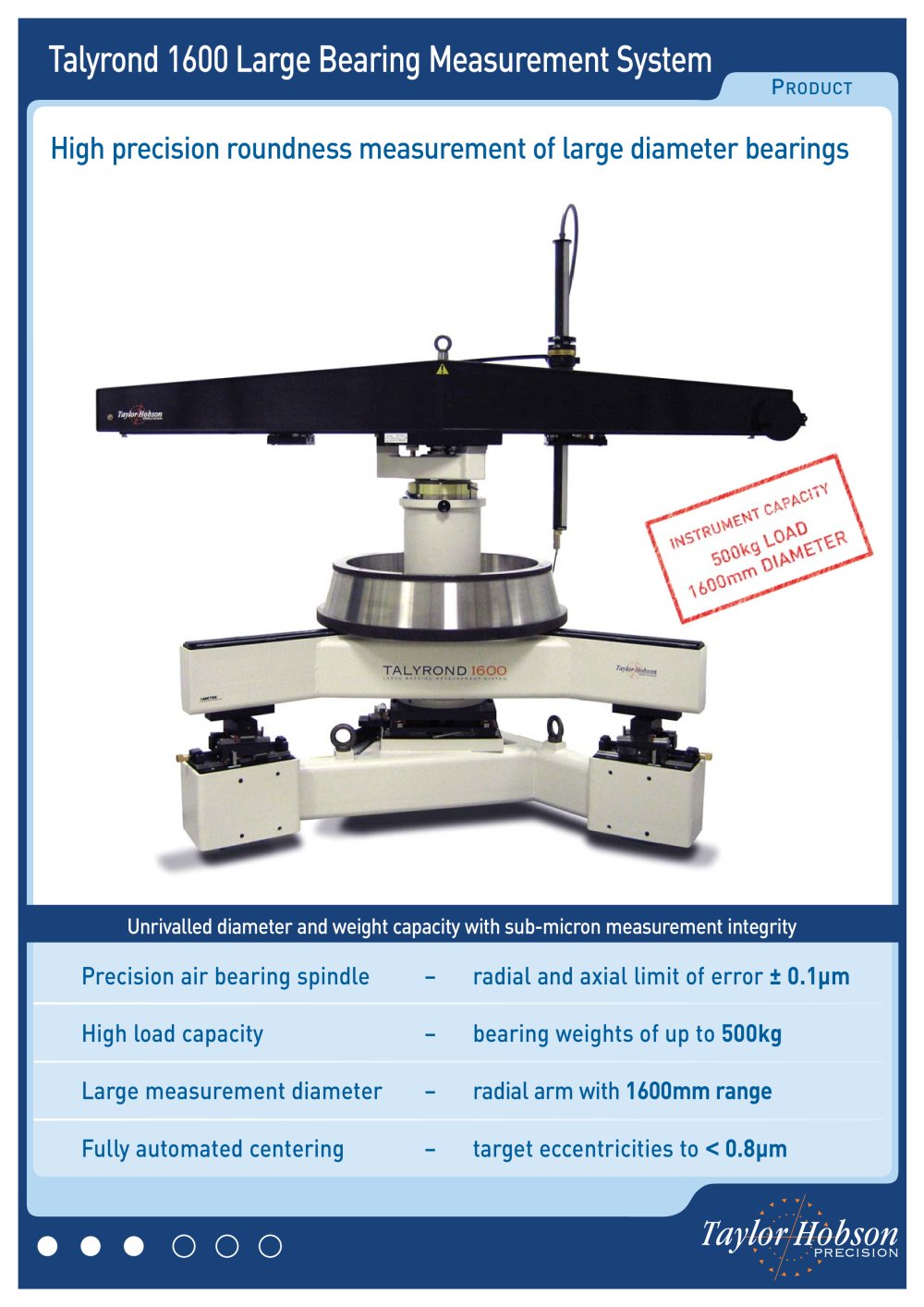

Talyrond 1600 Large Bearing Measurement System High precision roundness measurement of large diameter bearings PRODUCT Precision air bearing spindle – radial and axial limit of error ± 0.1ìm High load capacity – bearing weights of up to 500kg Large measurement diameter – radial arm with 1600mm range Fully automated centering – target eccentricities to < 0.8ìm Unrivalled diameter and weight capacity with sub-micron measurement integrity

Specifications are subject to change without notice. Note, not all features are included with all instruments. High Precision air spindle The air bearing spindle is based on Taylor Hobson’s proven Talyrond range of roundness instruments. Radial and axial accuracies are at levels usually associated with laboratory equipment Automated centering Two high load capacity X,Y motors ensure rapid centering of the radial arm to target eccentricities of less than 0.8ìm . Leveling Stages Unique wedge type leveling stages are placed at two of the base frame legs, the third leg acting as a pivot point. This...
