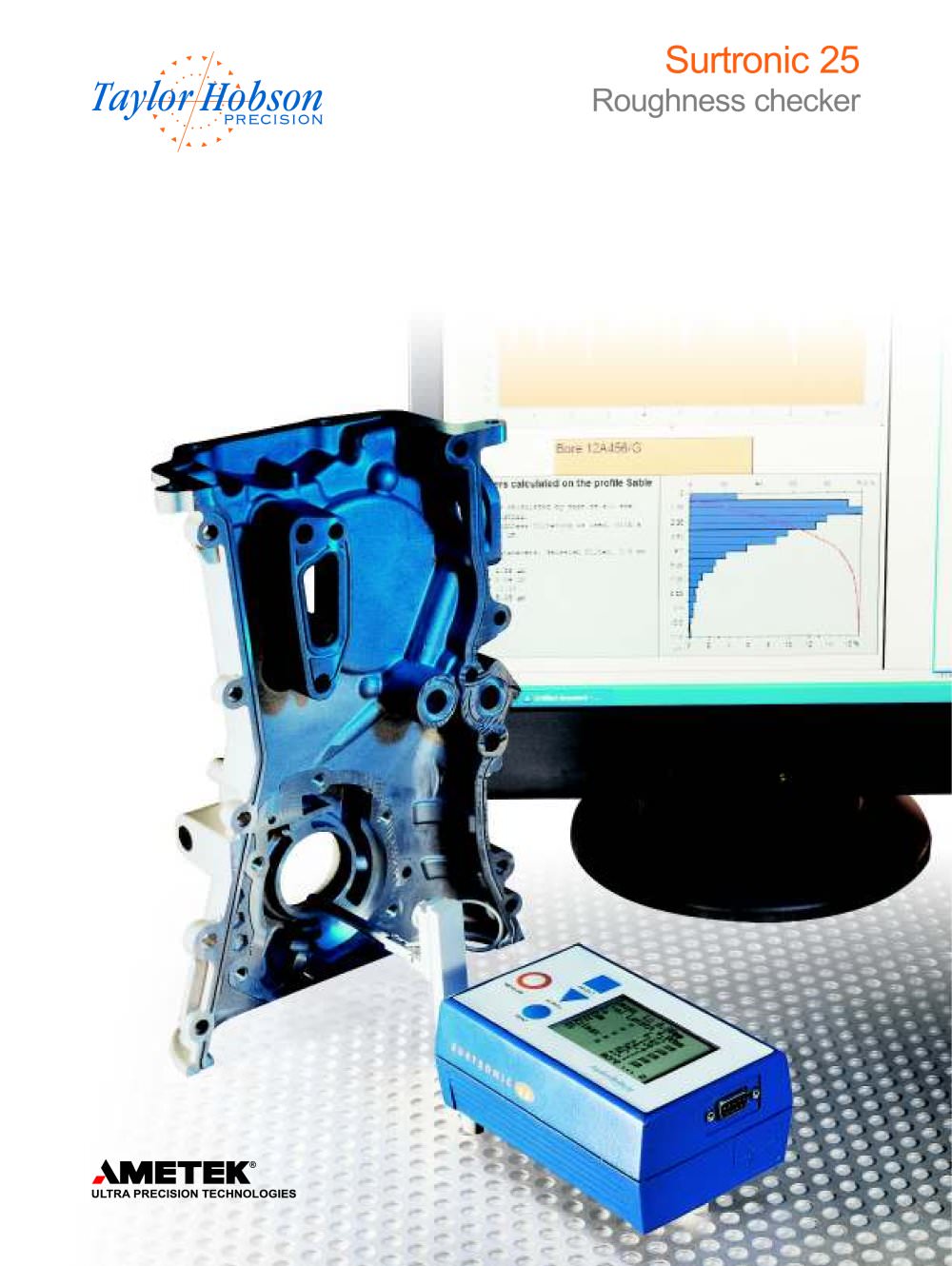

Surtronic 25

Surtronic 25
4Pages

Catalog excerpts

Surtronic 25 Parameter Options to suit your application The Surtronic 25 can calculate up to 10 parameters according to your measurement application: Amplitude Parameters (measures the vertical characteristics of the surface deviations): Ra (Arithmetic Mean Deviation) Rsk (Skewness) Rz (Average peak to valley height) Rt (Total height of profile) Rp (Max profile peak height) Rz1max (Max peak to valley height) Spacing Parameters (measures the horizontal characteristics of the surface deviations): RPc (Peak count) RSm (Mean width of profile elements) Hybrid Parameters (combinations of spacing...

Open the catalog to page 2

3 Unique Stylus Lift Mechanism The Surtronic 25 has a uniquely engineered stylus lift mechanism which allows a vertical adjustment of 50mm and rotation of the pick-up to different measuring positions, including right angle or inverted measurements. These adjustments to the height and position of the gauge allow areas and features of a part to be easily measured without additional complex fixturing. This feature saves the operator a huge amount of set up time and allows total flexibility. Typical applications where the stylus lift is invaluable include the measurement of steps, bores,...

Open the catalog to page 3

www.taylor-hobson.com Copyright© 2008 • Taylor Hobson Precision • Talysurf_CCI_9150_01/09 Taylor Hobson France Rond Point de l’Epine Champs Batiment D, 78990 Elancourt, France Tel: +33 130 68 89 30 Fax: +33 130 68 89 39 taylor-hobson.france@ametek.com Taylor Hobson Germany Postfach 4827, Kreuzberger Ring 6 65205 Wiesbaden, Germany Tel: +49 611 973040 Fax: +49 611 97304600 taylor-hobson.germany@ametek.com Taylor Hobson Italy Via De Barzi 20087 Robecco sul Naviglio, Milan, Italy Tel: +39 02 946 93406 Fax: +39 02 946 93450 taylor-hobson.italy@ametek.com Taylor Hobson Japan Sankyo Meguro...
