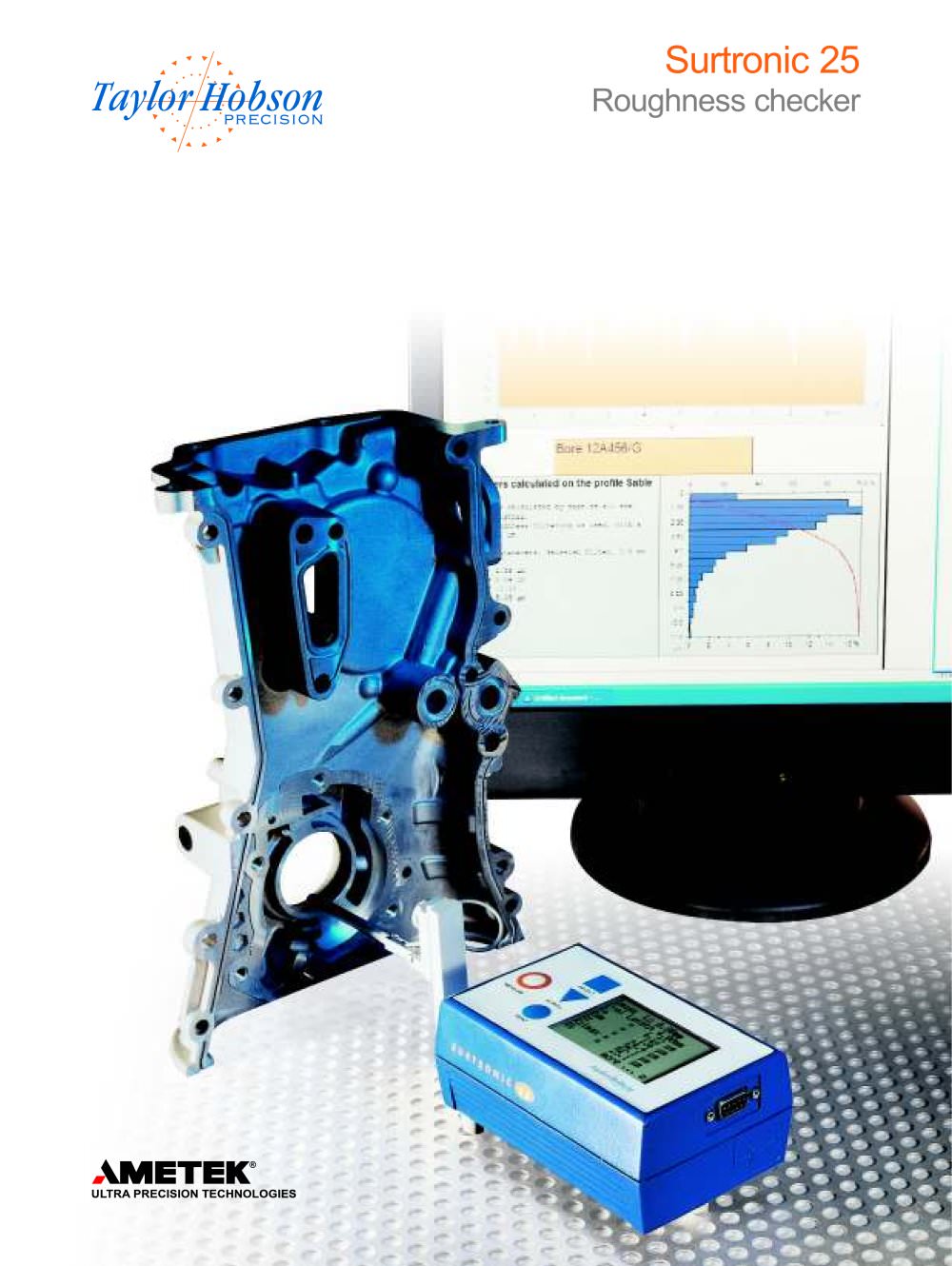

Roughness checker

Roughness checker
4Pages

Catalog excerpts

All measured parameters are displayed simultaneously on the large LCD screen Hybrid Parameters (combinations ofspacing and amplitude parameters):Rmr (Material Ratio) > Rda - R Delta a Additional parameters can be analysed with the addition of Talyprofile software (see page 4). (Arithmetic Mean Slope) > The Surtronic 25 incorporates a large LCD screen which allows full menu and measurement results to be displayed. Using only two buttons the user can scroll through the menusand make selections intuitively before pressing the MEASURE key. All selections become the default forfuture...

Open the catalog to page 2

The Surtronic 25 has a uniquelyengineered stylus lift mechanism which allows a vertical adjustmentof 50mm and rotation of the pick-upto different measuring positions, including right angle or invertedmeasurements . These adjustmentsto the height and position of the gauge allow areas and features of a part to be easily measured without additional complex fixturing. This feature saves the operator a huge amount of set up time and allows total flexibility. Typical applications where the stylus lift is invaluable include the measurement of steps, bores, grooves and lands. > The Surtronic 25 can...

Open the catalog to page 3
