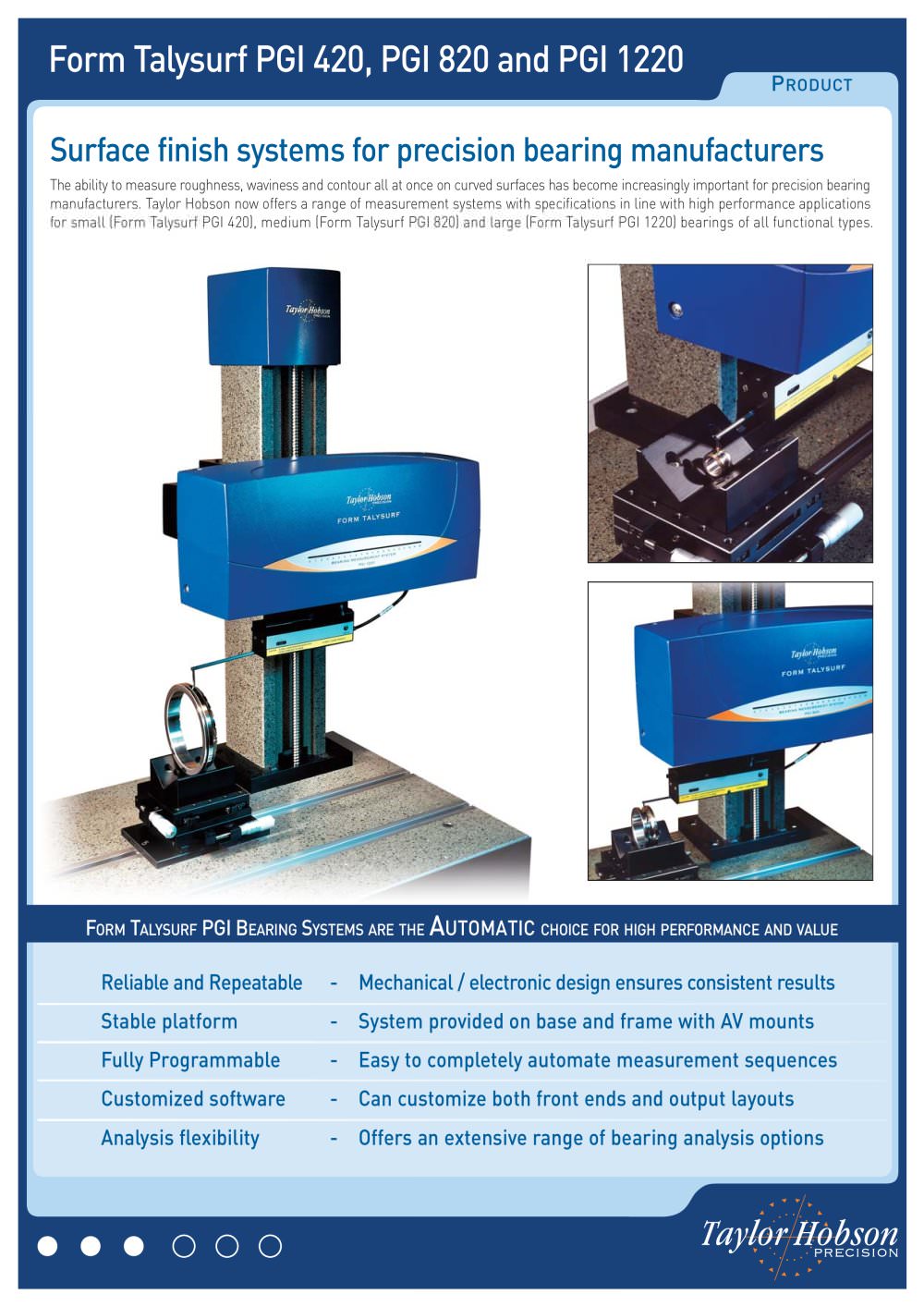

Form Talysurf PGI 420, PGI 820 and PGI 1220 Surface finish systems for precision bearing manufacturers PRODUCT The ability to measure roughness, waviness and contour all at once on curved surfaces has become increasingly important for precision bearing manufacturers. Taylor Hobson now offers a range of measurement systems with specifications in line with high performance applications for small (Form Talysurf PGI 420), medium (Form Talysurf PGI 820) and large (Form Talysurf PGI 1220) bearings of all functional types. Reliable and Repeatable - Mechanical / electronic design ensures consistent results Stable platform - System provided on base and frame with AV mounts Fully Programmable - Easy to completely automate measurement sequences Customized software - Can customize both front ends and output layouts Analysis flexibility - Offers an extensive range of bearing analysis options FORM TALYSURF PGI BEARING SYSTEMS ARE THE AUTOMATIC CHOICE FOR HIGH PERFORMANCE AND VALUE

www.taylor-hobson.com Copyright©2006 • Taylor Hobson Precision • Form Talysurf PGI 420/820/1220_08/08 Specifications are subject to change without notice. Introduction Taylor Hobson can claim a long relationship with bearing manufacturers. Case in point, the original Form Talysurf was developed in 1984 specifically for the precision bearing industry. It was the first instrument ever to measure form, texture and dimension on curved surfaces. Our new line of instruments continue the tradition but also address the much more difficult specialized requirements on many types of high precision bearings....
