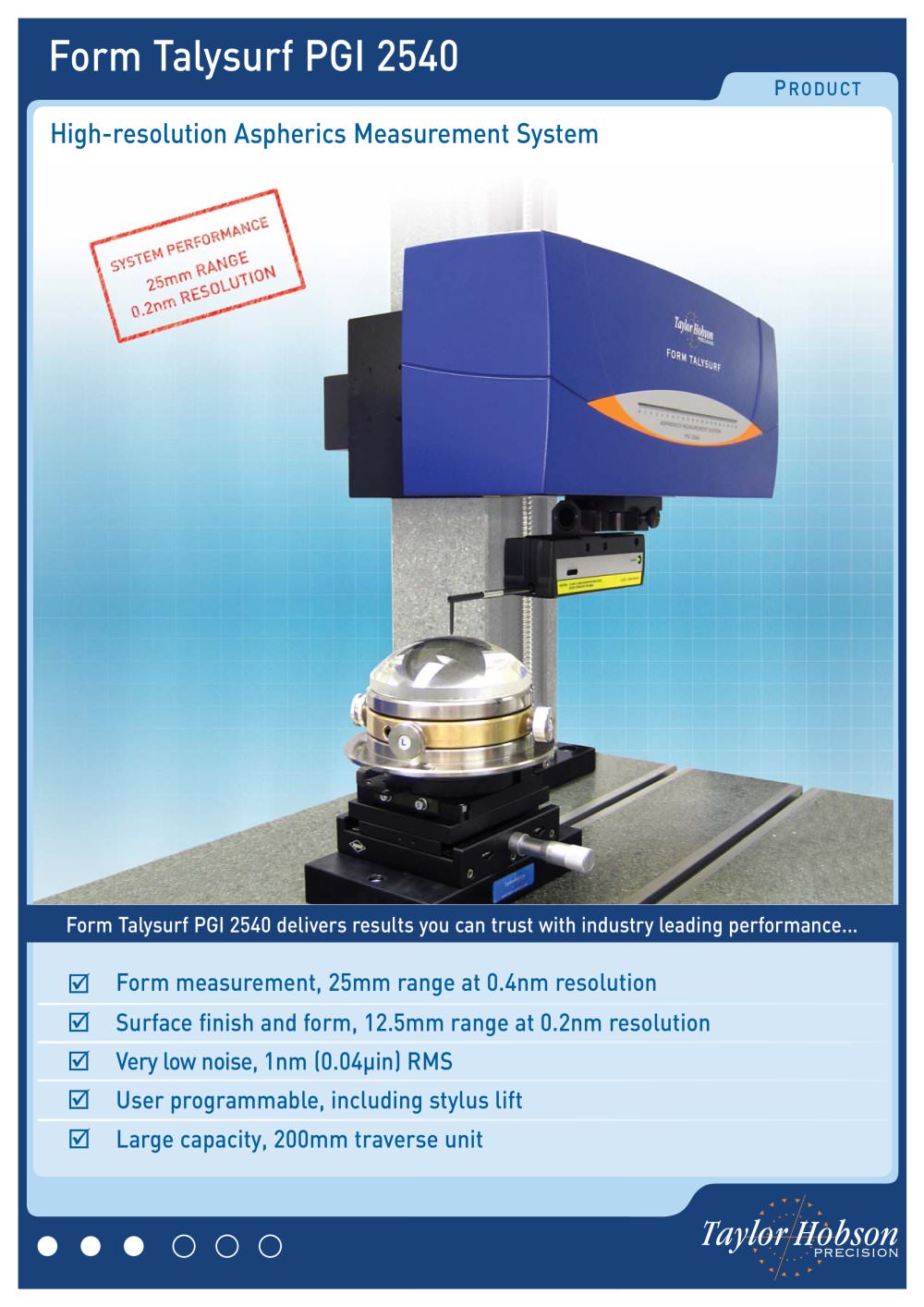

Form Talysurf PGI 2540 High-resolution Aspherics Measurement System Form measurement, 25mm range at 0.4nm resolution Surface finish and form, 12.5mm range at 0.2nm resolution Very low noise, 1nm (0.04ìin) RMS User programmable, including stylus lift Large capacity, 200mm traverse unit Form Talysurf PGI 2540 delivers results you can trust with industry leading performance... PRODUCT

Open the catalog to page 1

Specifications are subject to change without notice. Note, not all features are included with all instruments. Aspheric Analysis The Form Talysurf PGI 2540 is supplied with Taylor Hobson’s dedicated Aspheric Analysis Software. This provides analysis of aspheres up to 20th order. Key features of the software include: • SAG table generation at user-defined x intervals • Derived coefficients analysis • Astigmatism analysis • Base radius optimization Asphero-diffractive Analysis (optional) When combined with the results of the Aspheric Analysis software, the Diffractive Analysis software allows...

Open the catalog to page 2

www.taylor-hobson.com Copyright© 2008 • Taylor Hobson Precision • ***_04/08 Taylor Hobson France Rond Point de l’Epine Champs Batiment D, 78990 Elancourt, France Tel: +33 130 68 89 30 Fax: +33 130 68 89 39 taylor-hobson.france@ametek.com Taylor Hobson Germany Postfach 4827, Kreuzberger Ring 6 65205 Wiesbaden, Germany Tel: +49 611 973040 Fax: +49 611 97304600 taylor-hobson.germany@ametek.com Taylor Hobson Italy Via De Barzi 20087 Robecco sul Naviglio, Milan, Italy Tel: +39 02 946 93406 Fax: +39 02 946 93450 taylor-hobson.italy@ametek.com Taylor Hobson Japan Sankyo Meguro Building 4-5-37,...
