Form Talysurf i60 / i120 / i200 – Inductive Systems

Form Talysurf i60 / i120 / i200 – Inductive Systems
2Pages

Catalog excerpts

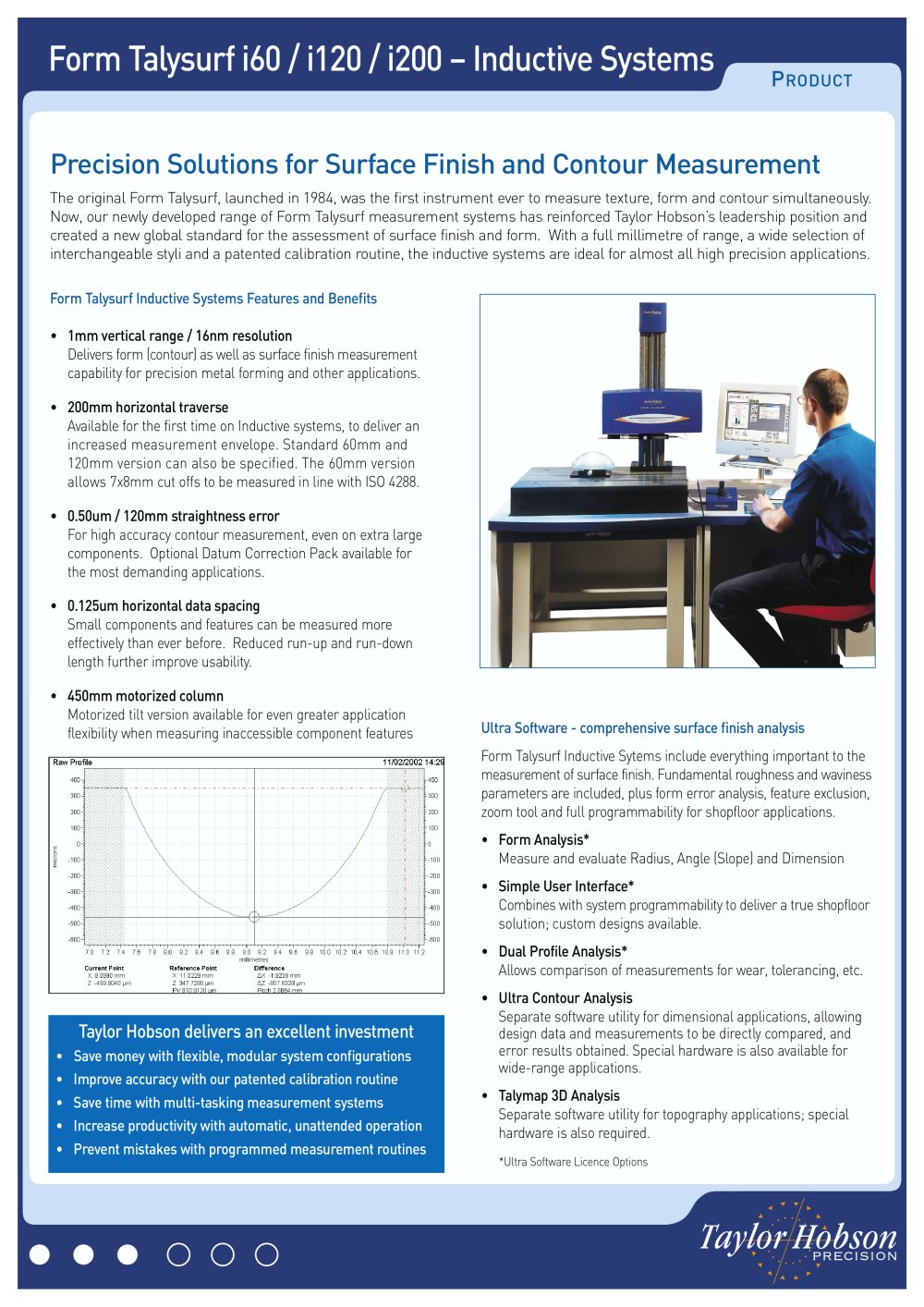

Form Talysurf i60 / i120 / i200 – Inductive Systems - 1

Form Talysurf i60 / i120 / i200 – Inductive Systems Precision Solutions for Surface Finish and Contour Measurement PRODUCT Form Talysurf Inductive Systems Features and Benefits • 1mm vertical range / 16nm resolution Delivers form (contour) as well as surface finish measurement capability for precision metal forming and other applications. • 200mm horizontal traverse Available for the first time on Inductive systems, to deliver an increased measurement envelope. Standard 60mm and 120mm version can also be specified. The 60mm version allows 7x8mm cut offs to be measured in line with ISO 4288. • 0.50um / 120mm straightness error For high accuracy contour measurement, even on extra large components. Optional Datum Correction Pack available for the most demanding applications. • 0.125um horizontal data spacing Small components and features can be measured more effectively than ever before. Reduced run-up and run-down length further improve usability. • 450mm motorized column Motorized tilt version available for even greater application flexibility when measuring inaccessible component features The original Form Talysurf, launched in 1984, was the first instrument ever to measure texture, form and contour simultaneously. Now, our newly developed range of Form Talysurf measurement systems has reinforced Taylor Hobson’s leadership position and created a new global standard for the assessment of surface finish and form. With a full millimetre of range, a wide selection of interchangeable styli and a patented calibration routine, the inductive systems are ideal for almost all high precision applications. Ultra Software - comprehensive surface finish analysis Form Talysurf Inductive Sytems include everything important to the measurement of surface finish. Fundamental roughness and waviness parameters are included, plus form error analysis, feature exclusion, zoom tool and full programmability for shopfloor applications. • Form Analysis* Measure and evaluate Radius, Angle (Slope) and Dimension • Simple User Interface* Combines with system programmability to deliver a true shopfloor solution; custom designs available. • Dual Profile Analysis* Allows comparison of measurements for wear, tolerancing, etc. • Ultra Contour Analysis Separate software utility for dimensional applications, allowing design data and measurements to be directly compared, and error results obtained. Special hardware is also available for wide-range applications. • Talymap 3D Analysis Separate software utility for topography applications; special hardware is also required. *Ultra Software Licence Options Taylor Hobson delivers an excellent investment • Save money with flexible, modular system configurations • Improve accuracy with our patented calibration routine • Save time with multi-tasking measurement systems • Increase productivity with automatic, unattended operation • Prevent mistakes with programmed measurement routines

Open the catalog to page 1

Form Talysurf i60 / i120 / i200 – Inductive Systems - 2

www.taylor-hobson.com Copyright© 2008 • Taylor Hobson Precision • ***_04/08 Taylor Hobson France Rond Point de l’Epine Champs Batiment D, 78990 Elancourt, France Tel: +33 130 68 89 30 Fax: +33 130 68 89 39 taylor-hobson.france@ametek.com Taylor Hobson Germany Postfach 4827, Kreuzberger Ring 6 65205 Wiesbaden, Germany Tel: +49 611 973040 Fax: +49 611 97304600 taylor-hobson.germany@ametek.com Taylor Hobson Italy Via De Barzi 20087 Robecco sul Naviglio, Milan, Italy Tel: +39 02 946 93406 Fax: +39 02 946 93450 taylor-hobson.italy@ametek.com Taylor Hobson Japan Sankyo Meguro Building 4-5-37,...
