Automated small footprint optical measurement system

Automated small footprint optical measurement system
3Pages

Catalog excerpts

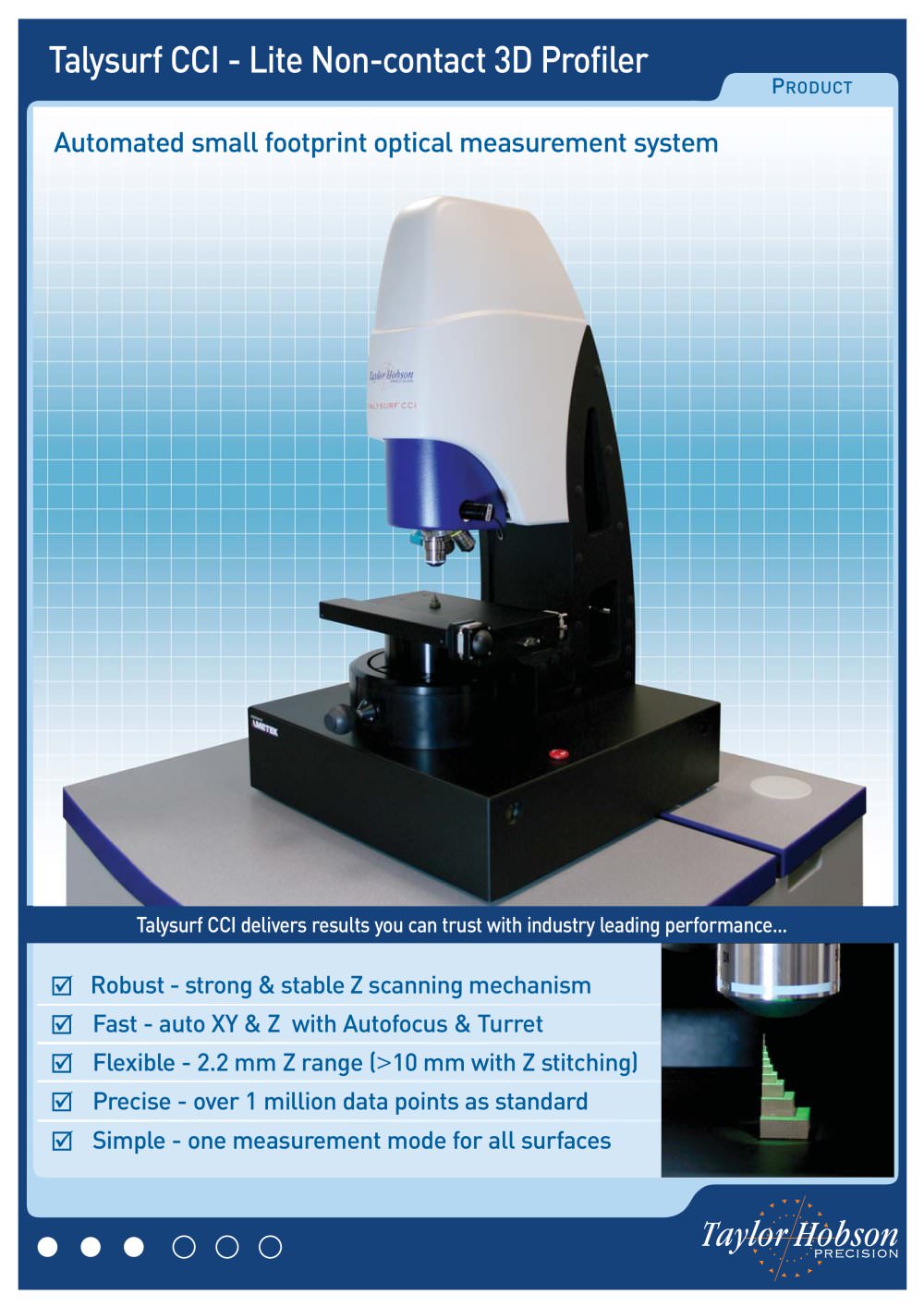

Automated small footprint optical measurement system - 1

Talysurf CCI delivers results you can trust with industry leading performance... Robust - strong & stable Z scanning mechanismFast - auto XY & Z with Autofocus & Turret Flexible - 2.2 mm Z range ( > 10 mm with Z stitching) Precise - over 1 million data points as standard Simple - one measurement mode for all surfaces >

Open the catalog to page 1

Automated small footprint optical measurement system - 2

Matt black surface without data restore Measurement of SIMSCreaters Diamond turned surface - measured using auto fringe find and auto range Diamond turned surface - after form removal Measurement techniqueCoherence Correlation InterferometryVertical range (Z)2.2 mm as standard ( < 0.08 nm [0.8 ] > 10 mm with Z-stitching)Vertical resolution [max]0.01 nm [0.1 Ņ] Noise floor (Z) > 1 Repeatability of surface RMS (Z) < 0.02 nm [0.2 ] > 2 Max. Measurement area (X, Y)6.6 mm ( > 75 mm with X, Y stitching)Number of measurement points1024 x 1024 standardOptical resolution (X, Y) 0.4 - 0.6ŵm (surface...

Open the catalog to page 2

Automated small footprint optical measurement system - 3

Rond Point de lEpine ChampsBatiment D, 78990 Elancourt, FranceTel: +33 130 68 89 30 Fax: +33 130 68 89 39taylor-hobson.france Taylor Hobson is world renowned as a manufacturer of precision measuring instruments used for inspection in research and production facilities. Our equipment performs at nanometric levels of resolution and accuracy. To complement our precision manufacturing capabilitywe alsooffer a host of metrology support services toprovide our customers with complete solutions to their measuring needs and total confidence in their results. > @ ametek.com Via De Barzi 20087 Robecco...
