Aerospect SPS 2500 LC

Aerospect SPS 2500 LC

Product catalog summary

Specifications:
The document outlines the specifications for a precision measuring instrument. Key dimensions include a post height of 1196 mm (48 in) with an optional 1524 mm (60 in), arm lengths of 457 mm and 610 mm (18 in and 24 in) with an optional 762 mm (30 in), and a granite base measuring 2032 x 914 x 406 mm (80 x 36 x 16 in). The worktable height is 777 mm (30.6 in), and the machine weight is 2095 kg (4608 lbs). The electrical cabinet weighs 235 kg (515 lbs).

Performance and Accuracy:
The air bearing load capacity is 1136 kg (2500 lbs) with radial/axial accuracy of 0.125 µm (5 µin) and tilt error motion (coning) of less than 0.025 µm/mm (1 µin/in). Tilt adjustment is +/- 1° and center adjustment is +/- 3 mm (0.125 in). The axis of tilt is 95 mm (3.8 in) above the worktable.

Electrical and Air Requirements:
The system includes a 1000 line encoder, flat screen LCD display, industrial computer, and is CE approved. It operates on 120VAC-50/60hz or 220 VAC-50/60hz with a power consumption of 500VA. Air requirements are 50 – 80 psig pressure and 1.5 scfm @ 60 psig (42 l/min) air usage.

Additional Features:
The system supports raised table profile part measurement and stacking with a gantry for deep bore measurement. Various gage heads are available, including cartridge style, lever style, and ultra-small, with measurement resolution of 0.25 µm (10 µin).

Company Information:
Taylor Hobson is a global manufacturer of precision measuring instruments, offering services such as inspection, metrology training, operator training, UKAS calibration and testing, design engineering, precision manufacturing, and preventative maintenance. Contact information for various international offices is provided.

Note:
AMETEK Precitech reserves the right to deviate from catalog specifications due to continual improvements.

Catalog excerpts

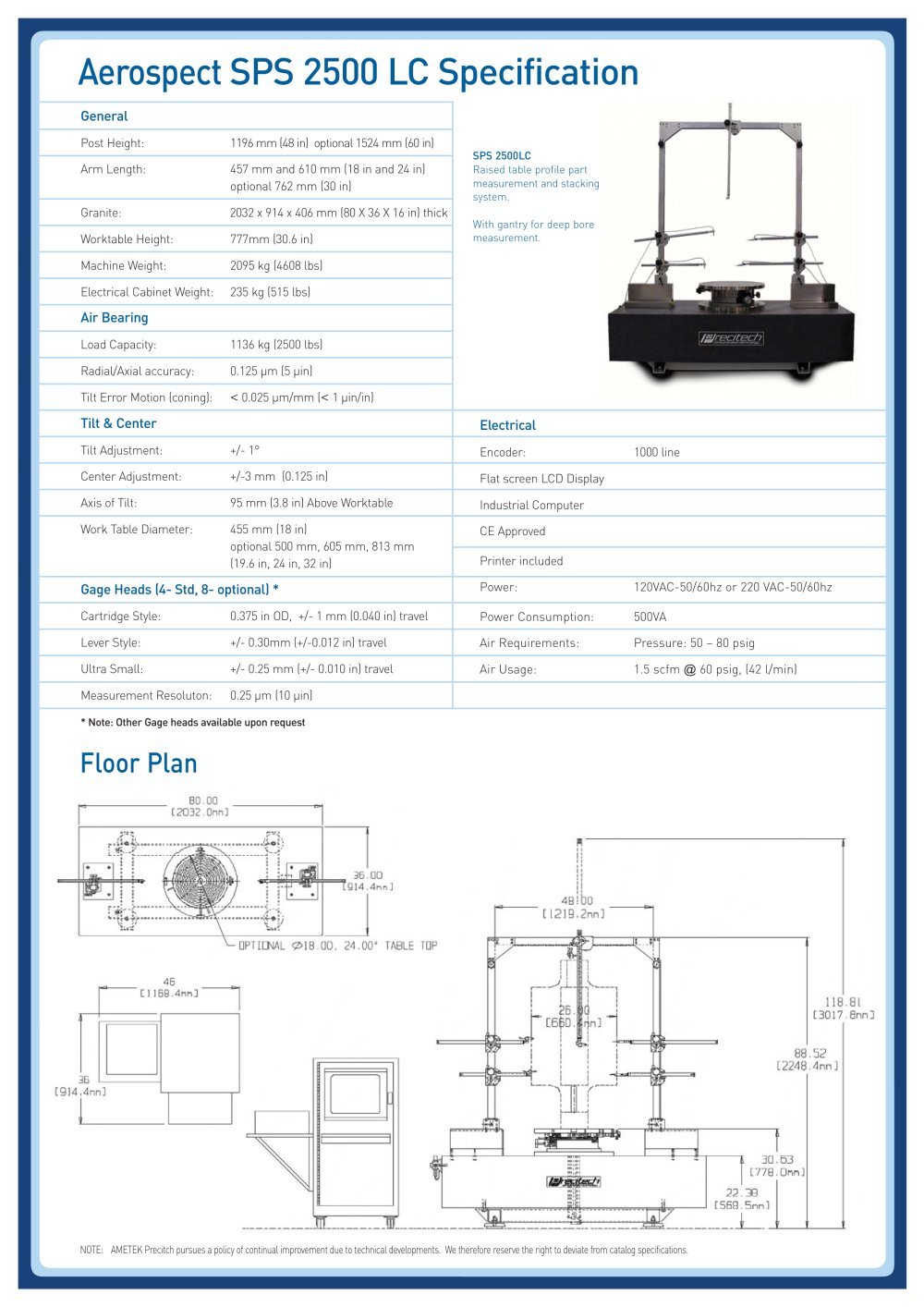

General Post Height: 1196 mm (48 in) optional 1524 mm (60 in) Arm Length: 457 mm and 610 mm (18 in and 24 in) optional 762 mm (30 in) Granite: 2032 x 914 x 406 mm (80 X 36 X 16 in) thick Worktable Height: 777mm (30.6 in) Machine Weight: 2095 kg (4608 lbs) Electrical Cabinet Weight: 235 kg (515 lbs) Air Bearing Load Capacity: 1136 kg (2500 lbs) Radial/Axial accuracy: 0.125 ìm (5 ìin) Tilt Error Motion (coning): < 0.025 ìm/mm (< 1 ìin/in) Tilt & Center Tilt Adjustment: +/- 1° Center Adjustment: +/-3 mm (0.125 in) Axis of Tilt: 95 mm (3.8 in) Above Worktable Work Table Diameter: 455 mm (18 in) optional 500 mm, 605 mm, 813 mm (19.6 in, 24 in, 32 in) Gage Heads (4- Std, 8- optional) * Cartridge Style: 0.375 in OD, +/- 1 mm (0.040 in) travel Lever Style: +/- 0.30mm (+/-0.012 in) travel Ultra Small: +/- 0.25 mm (+/- 0.010 in) travel Measurement Resoluton: 0.25 ìm (10 ìin) * Note: Other Gage heads available upon request NOTE: AMETEK Precitch pursues a policy of continual improvement due to technical developments. We therefore reserve the right to deviate from catalog specifications. Electrical Encoder: 1000 line Flat screen LCD Display Industrial Computer CE Approved Printer included Power: 120VAC-50/60hz or 220 VAC-50/60hz Power Consumption: 500VA Air Requirements: Pressure: 50 – 80 psig Air Usage: 1.5 scfm @ 60 psig, (42 l/min) SPS 2500LC Raised table profile part measurement and stacking system. With gantry for deep bore measurement. Aerospect SPS 2500 LC Specification Floor Plan

Open the catalog to page 1

www.taylor-hobson.com Copyright© 2008 • Taylor Hobson Precision • ***_04/08 Taylor Hobson France Rond Point de l’Epine Champs Batiment D, 78990 Elancourt, France Tel: +33 130 68 89 30 Fax: +33 130 68 89 39 [email protected] Taylor Hobson Germany Postfach 4827, Kreuzberger Ring 6 65205 Wiesbaden, Germany Tel: +49 611 973040 Fax: +49 611 97304600 [email protected] Taylor Hobson Italy Via De Barzi 20087 Robecco sul Naviglio, Milan, Italy Tel: +39 02 946 93406 Fax: +39 02 946 93450 [email protected] Taylor Hobson Japan Sankyo Meguro Building 4-5-37, Kamiosaki,...
