TAYLOR HOBSON
Aerospect SPS 150DT

Aerospect SPS 150DT

Product catalog summary

General Specifications
The Aerospect SP-150DT features a post height of 508 mm (20 in) with optional heights of 635 mm and 762 mm. It has an arm length of 457 mm (18 in) and a granite base measuring 762 mm x 508 mm x 152 mm thick. The worktable height is 1016 mm (40 in), and the machine weight is 720 lb (327 kg).

Air Bearing Specifications
The load capacity is 150 lb (68 kg) with radial/axial precision of 0.125 µm. Tilt error motion is less than 0.025 µm/mm, with tilt adjustment of +/- 1° and center adjustment of +/- 3 mm. The axis of tilt is 51 mm above the worktable, which has a diameter of 200 mm, with optional sizes of 250 mm and 300 mm.

Gage Heads
Standard gage heads include four cartridge styles with a 0.375 in OD and +/- 1 mm travel. Lever style offers +/- 0.30 mm travel, and ultra-small style offers +/- 0.25 mm travel. Measurement resolution is 0.25 µm.

Electrical and Air Requirements
The system includes a 1000 line encoder, flat screen LCD display, and industrial computer, all CE approved. Power requirements are 120VAC-50/60hz or 220 VAC-50/60hz with a consumption of 500VA. Air pressure requirements are 50 – 80 psig with usage of 1.0 scfm at 60 psig.

Applications
The SP-150DT is ideal for small turbine components and assemblies, optimizing high-speed engine stacks.

Contact Information
Taylor Hobson has offices worldwide, including in France, Germany, Italy, Japan, Korea, China, Singapore, and the USA. The global headquarters is located in Leicester, England.

Additional Services
Taylor Hobson offers inspection services, metrology training, operator training, UKAS calibration and testing, design engineering, precision manufacturing, and preventative maintenance. For services, contact the Center of Excellence or Sales Department.

Catalog excerpts

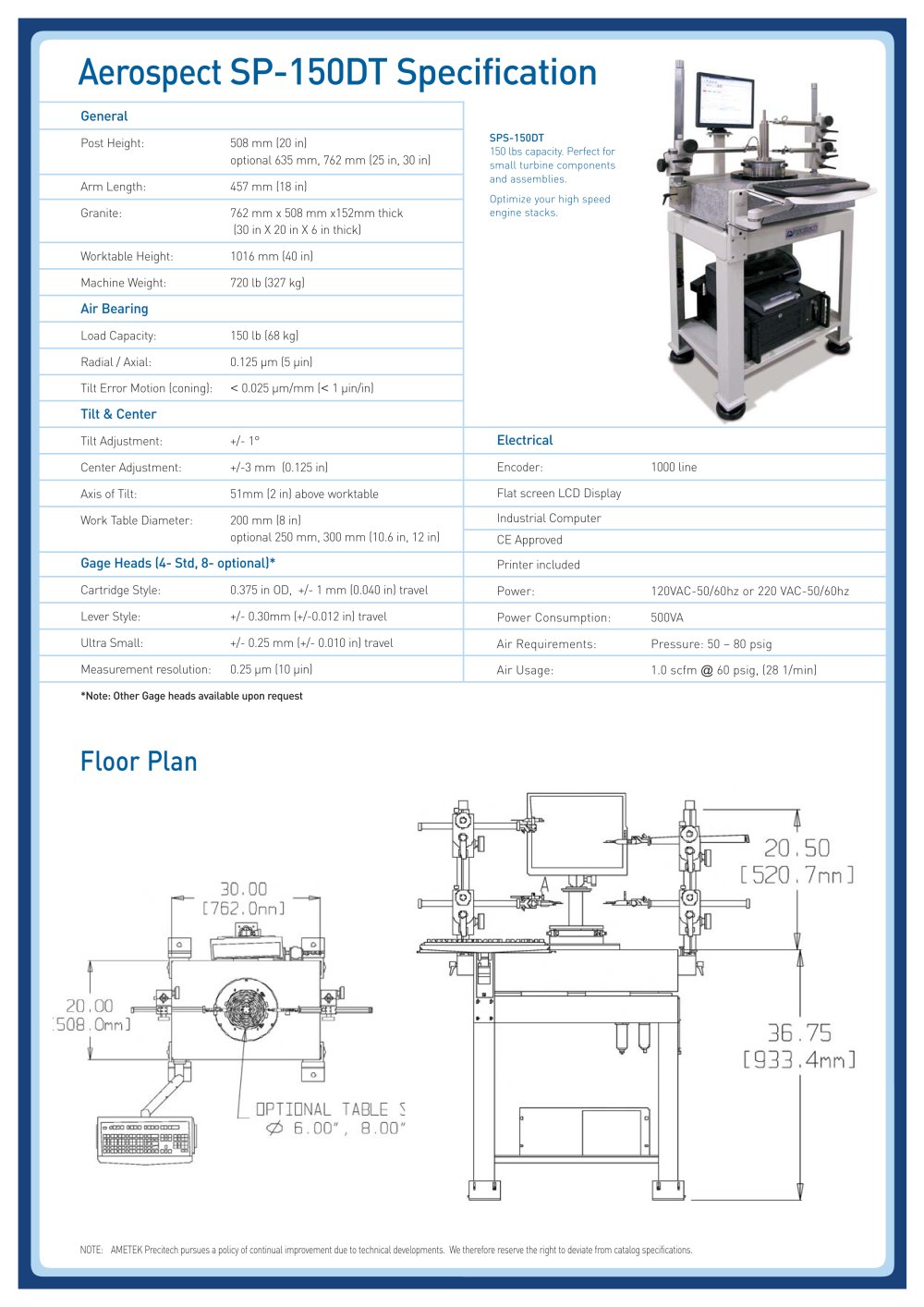

Aerospect SP-150DT Specification General Post Height: 508 mm (20 in) optional 635 mm, 762 mm (25 in, 30 in) Arm Length: 457 mm (18 in) Granite: 762 mm x 508 mm x152mm thick (30 in X 20 in X 6 in thick) Worktable Height: 1016 mm (40 in) Machine Weight: 720 lb (327 kg) Air Bearing Load Capacity: 150 lb (68 kg) Radial / Axial: 0.125 ìm (5 ìin) Tilt Error Motion (coning): < 0.025 ìm/mm (< 1 ìin/in) Tilt & Center Tilt Adjustment: +/- 1° Center Adjustment: +/-3 mm (0.125 in) Axis of Tilt: 51mm (2 in) above worktable Work Table Diameter: 200 mm (8 in) optional 250 mm, 300 mm (10.6 in, 12 in) Gage Heads (4- Std, 8- optional)* Cartridge Style: 0.375 in OD, +/- 1 mm (0.040 in) travel Lever Style: +/- 0.30mm (+/-0.012 in) travel Ultra Small: +/- 0.25 mm (+/- 0.010 in) travel Measurement resolution: 0.25 ìm (10 ìin) *Note: Other Gage heads available upon request NOTE: AMETEK Precitech pursues a policy of continual improvement due to technical developments. We therefore reserve the right to deviate from catalog specifications. Floor Plan Electrical Encoder: 1000 line Flat screen LCD Display Industrial Computer CE Approved Printer included Power: 120VAC-50/60hz or 220 VAC-50/60hz Power Consumption: 500VA Air Requirements: Pressure: 50 – 80 psig Air Usage: 1.0 scfm @ 60 psig, (28 1/min) SPS-150DT 150 lbs capacity. Perfect for small turbine components and assemblies. Optimize your high speed engine stacks.

Open the catalog to page 1

www.taylor-hobson.com Copyright© 2008 • Taylor Hobson Precision • ***_04/08 Taylor Hobson France Rond Point de l’Epine Champs Batiment D, 78990 Elancourt, France Tel: +33 130 68 89 30 Fax: +33 130 68 89 39 [email protected] Taylor Hobson Germany Postfach 4827, Kreuzberger Ring 6 65205 Wiesbaden, Germany Tel: +49 611 973040 Fax: +49 611 97304600 [email protected] Taylor Hobson Italy Via De Barzi 20087 Robecco sul Naviglio, Milan, Italy Tel: +39 02 946 93406 Fax: +39 02 946 93450 [email protected] Taylor Hobson Japan Sankyo Meguro Building 4-5-37, Kamiosaki,...
